organic fertilizer mixer machine

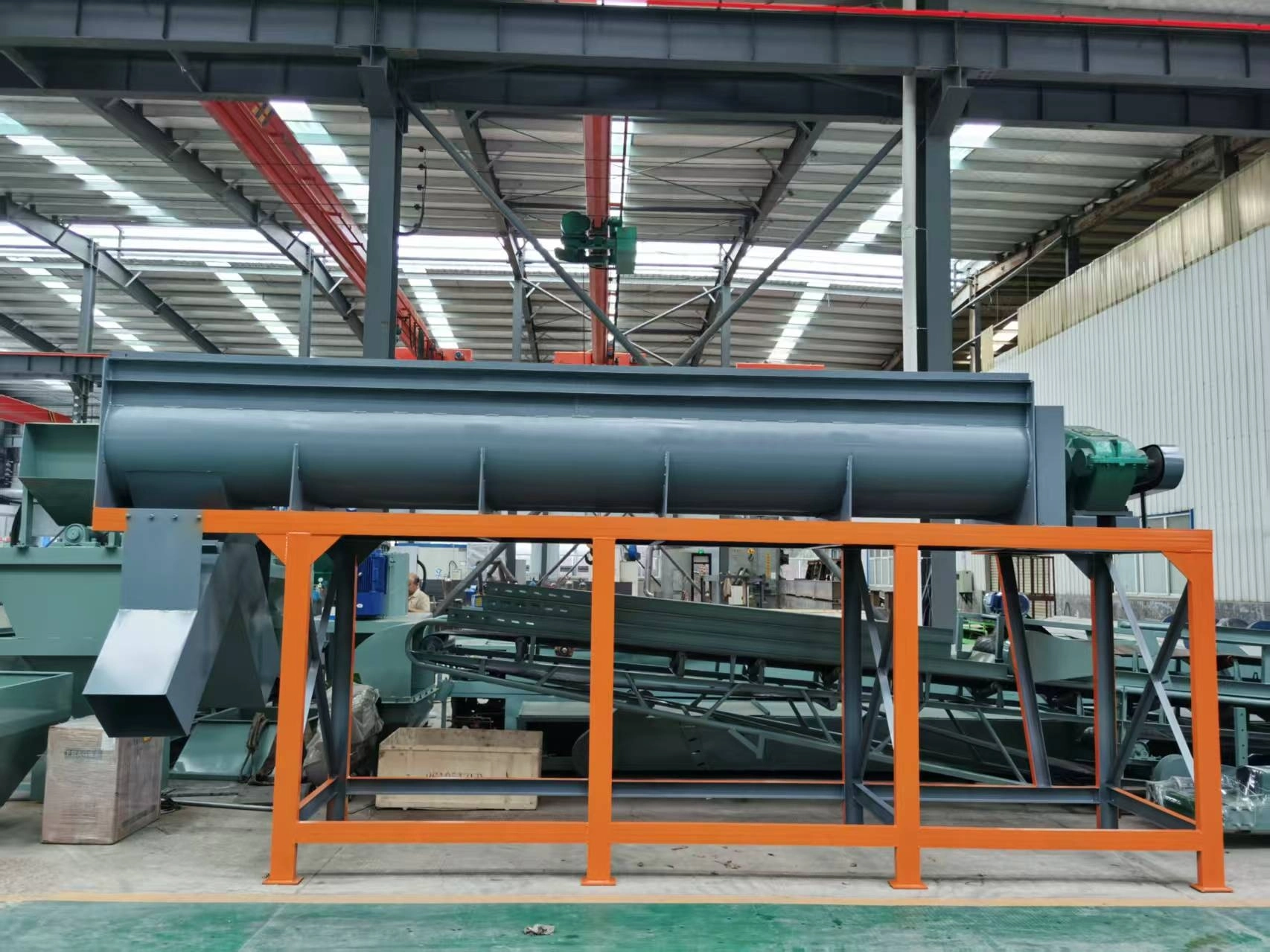

High-Performance Organic Fertilizer Mixer Machine | YXYH-3008 Double-Shaft Premixer

The YXYH-3008 organic fertilizer mixer machine from Henan Yuxing combines 20+ years of manufacturing expertise with innovative engineering. This industrial-grade double-shaft premixer has a 3m×0.8m mixing chamber and a powerful 11kW motor, capable of mixing 3-8 tons per hour.

Our equipment delivers ≥95% homogenous mixing with improved dual-shaft paddles. It works with fermented manure, compost, and microbial inoculants without stratification or dead zones.

Manganese steel wear-resistant components and anti-corrosion treatment provide uninterrupted operation in harsh manufacturing conditions. The CE and ISO-certified YXYH-3008 services commercial composting facilities, bio-organic fertilizer producers, and integrated production lines in 50+ countries. You'll get 24/7 lifetime technical support, 15–20-day bespoke configuration delivery, and turnkey installation instruction.

Technical Specifications

How It Works: Advanced Dual-Shaft Mixing Technology

The YXYH-3008 uses synchronized double-helix paddles. When input materials enter the 3-meter mixing chamber, two counter-rotating shafts generate intense convection and shear.

Strategically placed paddles push materials in different axial directions on each shaft. This bidirectional flow arrangement prevents segregation and evenly distributes additives. An 11kW motor powers both shafts using a precision-matched gearbox to optimize torque at different material densities.

Design has high-speed breaker paddles that immediately break clumps. It reduces aggregate formation in moisture-rich compost (40–60% humidity). Manganese steel blades resist organic acids, and the non-stick interior lining reduces stickiness.

In 3–5 minute cycles, your materials reach CV below 5%. Adjust mixing intensity for sensitive microbial agents or lightweight soil additives with variable frequency motors. The chamber's 40–60% fill capacity allows for extensive material circulation.

Key Applications Across Fertilizer Production

Commercial Composting Operations

You can rely on our mixer to blend fermented livestock manure with straw powder, biochar, and mineral supplements. It handles heavy mechanical loads while maintaining structural integrity in corrosive environments.

Bio-Organic Fertilizer Manufacturing

The machine performs low-shear integration of functional bacteria into stabilized compost. This protects microbial viability while achieving total dispersion throughout your product batch.

Specialized Soil Amendment Production

For potting soil lines, the YXYH-3008 combines organic humus with perlite, vermiculite, and peat moss. Adjustable mixing speeds prevent fragile material degradation while ensuring homogeneous output.

Compound Fertilizer Blending

You'll achieve precise nutrient distribution when mixing organic bases with NPK additives. This eliminates batch inconsistency that affects crop performance.

Municipal Sludge Treatment

Our mixer processes dewatered sludge with bulking agents and lime amendments, preparing feedstock for aerobic composting or pelletization stages.

Superior Engineering Advantages

Optimized Mixing Dynamics

The dual-shaft configuration creates three-dimensional material flow. You avoid the dead zones and stratification common in single-shaft or ribbon mixers.

Corrosion-Resistant Construction

Main shafts receive specialized heat treatment and optional stainless steel cladding. This resists the low pH levels (4.5–6.5) typical in fermented organic matter.

Extended Component Lifespan

Standard 16Mn manganese steel blades last 18–24 months. Upgrade to hard-facing carbide coatings for 300% extended service life in highly abrasive applications.

Intelligent Integration Capability

Our organic fertilizer mixer machine comes equipped with load cells and VFD controls. You can integrate it seamlessly into SCADA or PLC-controlled automated production lines.

Minimal Maintenance Requirements

Dynamic balance testing ensures vibration-free operation. Sealed bearings and modular wear liners reduce downtime to quarterly inspections only.

Quality Control Standards

We implement rigorous testing protocols to guarantee your equipment performs reliably for years.

Dynamic Balance Verification

Every rotor assembly undergoes precision balancing to prevent bearing fatigue. Vibration levels stay below 2.8mm/s per ISO 10816 standards.

Structural Integrity Testing

Ultrasonic flaw detection examines all critical welds. We verify stress points can withstand 150% rated load capacity without structural compromise.

Load Run-in Validation

Each mixer operates continuously for four hours at full capacity. We monitor gearbox temperature rise, motor current draw, and shaft alignment stability.

Mixing Uniformity Analysis

Tracer element testing confirms coefficient of variation meets GB/T 5918 requirements. You receive documented proof of ≥95% blending consistency.

Corrosion Protection Inspection

Epoxy coating thickness measurements and stainless steel passivation verification ensure long-term resistance against organic acid exposure.

​​​​​​​

Comprehensive Support & Customization

Global Adaptation

We customize voltage (220V–480V), electrical components (Siemens/Schneider), and control interfaces in multiple languages. CE certification ensures compliance with international safety standards.

Turnkey Project Assistance

Our engineers provide factory layout design, capacity calculations, and equipment sequencing recommendations. You receive complete process flowcharts tailored to your raw materials.

Installation & Commissioning

Remote video guidance and on-site technical support ensure proper setup. We train your operators on optimal filling levels, cycle times, and maintenance procedures.

Lifetime Technical Access

You gain 24/7 access to our engineering team for troubleshooting, spare parts consultation, and production optimization advice. We respond to urgent queries within two hours globally.

Fast Delivery & Logistics

Standard YXYH-3008 units ship within 7 days from stock. Customized configurations deliver in 15–20 days. Our experienced logistics team handles container optimization and oversized equipment transportation to 50+ countries.

FAQ

Q: How does the mixer prevent material clumping in high-moisture applications?

A: High-speed breaker paddles apply mechanical shear to disperse aggregates instantly. The non-stick liner prevents adhesion, even when processing materials at 50–60% moisture content.

Q: What's the expected lifespan of mixing components?

A: Standard manganese steel blades last 18–24 months in typical organic waste. For abrasive feedstocks like rice husks or sand-contaminated manure, carbide-coated blades extend service life by three times.

Q: Can I integrate this into my existing automated system?

A: Yes. The YXYH-3008 includes VFD motor control and digital load cells. It connects directly to PLCs via standard industrial protocols like Modbus or Profibus.

Q: What's the optimal chamber filling level?

A: For best convective flow, maintain 40–60% fill capacity. Overfilling reduces mixing efficiency, while underfilling wastes energy and extends cycle times.

Q: How do you address shaft corrosion from acidic materials?

A: Main shafts undergo anti-corrosion heat treatment as standard. For extremely acidic environments (pH below 5.0), we offer 316L stainless steel shaft cladding that resists degradation for 10+ years.

Contact Us

Ready to improve your fertilizer blending consistency and production efficiency with an organic fertilizer mixer machine? Our team at Henan Yuxing provides expert solutions tailored to your specific needs.

• Request Production Line Solution – Get customized system design

• Request Plant Layout – Optimize your facility workflow

• Download Catalog – Explore our complete equipment range

• Get Turnkey Quotation – Receive detailed pricing and timeline

Email us at yuxing@hnyxmachinery.com to discuss your project requirements with our engineering specialists.
