Fertilizer Dryer

Fertilizer Dryer - High-Efficiency Rotary Drying Solution for Modern Fertilizer Production

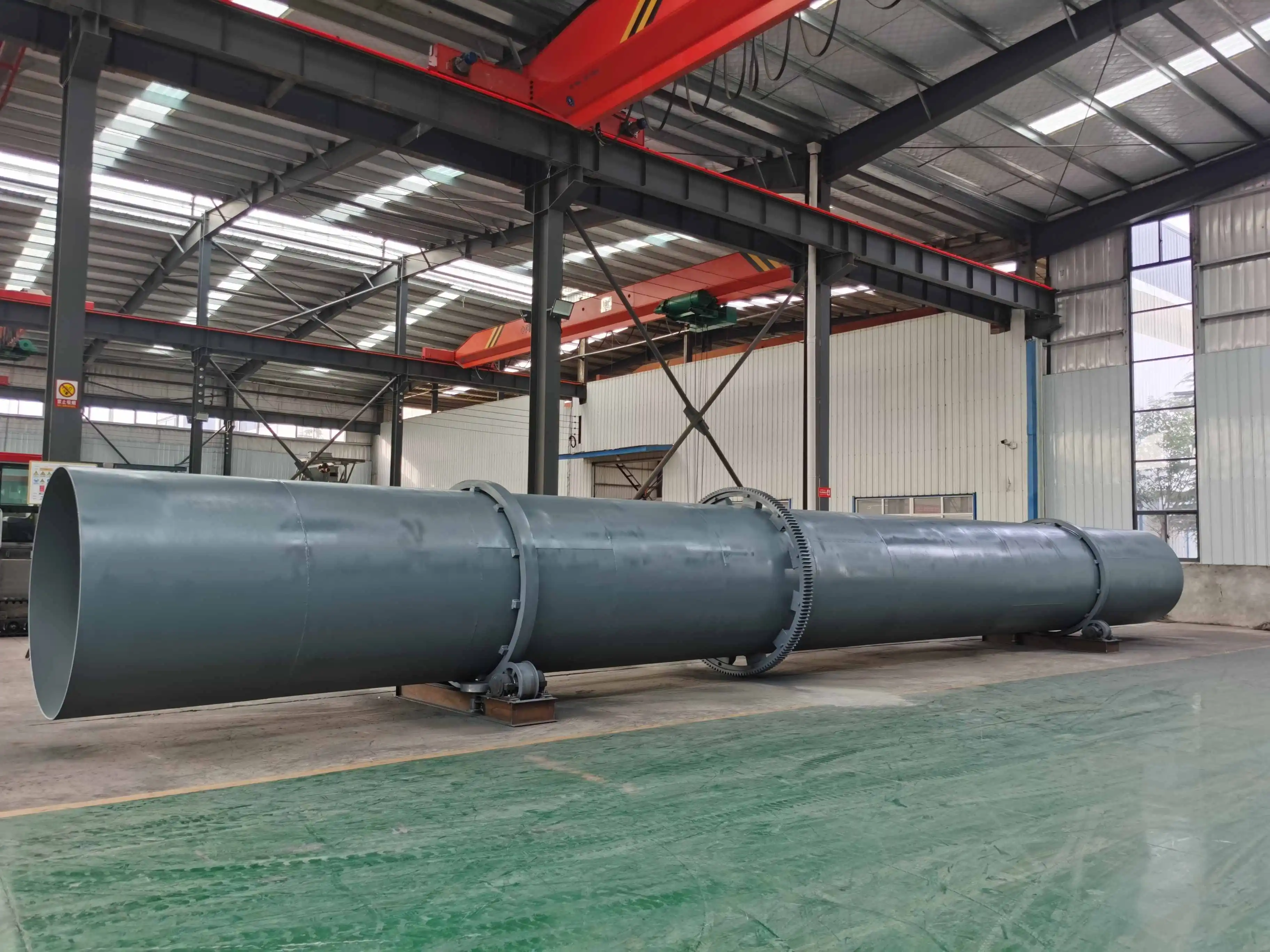

Yuxing's YXHG-1212 Fertilizer Dryer reduces production line moisture to industrial levels. With over 20 years of fertilizer equipment experience, we designed this rotary dryer to handle 3-5 tons per hour at 7.5kW.

A 12-meter drum with a 1.2-meter diameter runs at 3-5 degrees inclination for constant heat contact. Your granules meet the 2-5% moisture requirement for long-term storage.

ZQ350 reducers ensure smooth rotation at specified rates, reducing material deterioration. After granulation, this product easily integrates to eliminate caking and reduce transport weight by 30%. CE and ISO-certified, this equipment has proven engineering and installations in 50+ countries.

Technical Specifications

Core Applications Across Fertilizer Industries

Your production challenges demand specialized drying solutions. Our rotary drum system excels in three critical manufacturing environments.

Organic Fertilizer Production Lines benefit from processing high-moisture livestock manure—chicken, pig, and cow waste—into marketable pellets. The controlled heat exposure transforms 40% moisture content into stable 3% granules without burning organic matter.

NPK Compound Fertilizer Manufacturing requires precision temperature management. Your chemical formulations remain intact because our system prevents salt melting and nutrient volatilization during the drying cycle.

Bio-Organic and Microbial Fertilizer Plants preserve bacterial viability using our adjustable temperature zones. You maintain Bacillus subtilis populations above 200 million CFU/g while achieving surface moisture removal for packaging readiness.

How It Works: The Four-Stage Drying Process

Understanding your dryer's operation helps you optimize production efficiency. Our rotary system uses proven thermodynamic principles.

Stage 1: Material Feeding & Initial Heat Contact

Wet granules enter through the sealed inlet at the elevated end. The rotating drum immediately exposes material to hot air streams ranging from 200-600°C depending on your product requirements.

Stage 2: Cascading & Heat Exchange

Custom-designed lifting flights along the drum's interior create a continuous "material curtain." As the cylinder rotates at 1-8 RPM, granules cascade through the hot air zone repeatedly. This maximizes surface area exposure for rapid moisture evaporation.

Stage 3: Controlled Residence Time

Your material travels through the inclined drum over 20-35 minutes. The 3-5 degree slope and adjustable rotation speed ensure uniform drying without over-processing. Temperature sensors monitor conditions in real-time.

Stage 4: Cooling & Discharge

Dried granules exit through the lower discharge end at controlled temperatures. An integrated cooling section brings product temperature down to within 5°C of ambient before packaging, preventing condensation damage.

Hot exhaust gases pass through cyclone dust collectors and optional wet scrubbers, meeting environmental emission standards while recovering fine particles.

Advanced Engineering Features

Your production line deserves equipment built for continuous industrial operation. We've engineered reliability into every component.

Optimized Internal Lifting Plates create uniform material distribution across the drum's cross-section. You achieve consistent moisture profiles throughout each batch, eliminating partially dried clumps.

Precision Sealing Systems at both inlet and outlet minimize heat loss below 20%. Our labyrinth seal design prevents dust escape while accommodating thermal expansion during startup cycles.

Heavy-Duty Riding Rings & Support Rollers manufactured from forged alloy steel distribute the drum's weight evenly. With proper alignment, your system operates vibration-free for over 10 years of continuous service.

Adjustable Burner Integration accommodates natural gas, coal, biomass, or waste heat recovery systems. You can switch fuel sources based on regional availability and cost fluctuations.

Material-Specific Customization includes stainless steel internals for corrosive formulations and self-cleaning chain curtains for sticky organic materials. Your specific feedstock determines the optimal configuration.

Quality Assurance Through Rigorous Testing

Every Fertilizer Dryer undergoes comprehensive inspection protocols before shipment. Your investment is protected by our factory quality control system.

Drum Concentricity Verification ensures the cylinder maintains roundness within 2mm tolerance across the 12-meter length. This prevents uneven wear on the girth gear and extends component lifespan.

Weld Integrity Validation uses Non-Destructive Testing including X-ray examination of all longitudinal and circumferential seams. You receive documented proof that critical joints meet ASME pressure vessel standards.

Dynamic Balance Testing eliminates vibration under full-load conditions. Our technicians add counterweights until the rotating assembly runs smoothly at maximum capacity.

Thermal Imaging Analysis identifies insulation gaps before commissioning. We verify that shell surface temperatures remain below safety thresholds during operation.

Material Thickness Measurement with ultrasonic gauges confirms that shell thickness includes proper corrosion allowance. Your equipment maintains structural integrity throughout its operational life.

Global Support & Customization Capabilities

Your project requirements extend beyond standard specifications. Yuxing provides complete adaptation for international operations.

Electrical System Localization includes voltage adjustment for 380V/50Hz, 440V/60Hz, or regional standards. We integrate Siemens or Schneider components per your preference, with multi-language HMI interfaces.

Environmental Compliance Engineering adapts dust collection and emission control systems to meet EPA, EU, or local regulatory standards. You receive documentation for environmental permitting.

Modular Design for Container Shipping allows disassembly into sections for 40GP or open-top container transport. Our experienced logistics team has shipped oversized equipment to remote locations across six continents.

OEM and Private Labeling Services support equipment integrators and turnkey project contractors. You can specify custom colors, branding, and control panel layouts.

Capacity Scaling Options range from 1 t/h pilot systems to 20+ t/h industrial installations. Our engineering team designs around your production targets and available plant space.

​​​​​​​

Comprehensive Project Support Services

Your success depends on more than equipment delivery. We provide lifetime technical partnership for optimal system performance.

Pre-Installation Engineering includes factory layout planning with 3D modeling, utilities requirement calculation, and integration with existing production lines. You receive complete installation drawings before shipment.

Commissioning & Operator Training ensures your team understands daily operation, parameter adjustment, and preventive maintenance schedules. We provide on-site support or remote video guidance for international projects.

24/7 Technical Response connects you directly to our engineering team for troubleshooting and optimization advice. Your production never stops due to lack of technical support.

Spare Parts Inventory Management maintains critical components including seals, bearings, and lifting plates. We ship replacement parts within 48 hours to minimize downtime.

Capacity Upgrade Consulting helps you expand production as your business grows. We analyze bottlenecks and recommend system modifications to increase throughput.

FAQ

Q: How do you prevent material sticking inside the drum during organic fertilizer drying?

A: We integrate self-cleaning internal chain curtains and optional vibrating scrapers specifically designed for high-viscosity organic materials. The customized lifting plate angles also minimize adhesion on contact surfaces.

Q: What fuel sources are compatible with this system?

A: The burner system accommodates natural gas, coal, biomass pellets, or waste heat recovery from other processes. You can select based on regional fuel costs and availability.

Q: Can the dryer handle varying granule sizes in the same batch?

A: Yes, by adjusting the drum's rotational speed and inclination angle, we control residence time to accommodate particle diameters from 2mm to 8mm. Mixed-size batches achieve uniform final moisture content.

Q: How is dust emission managed to meet environmental regulations?

A: Every system includes a high-efficiency cyclone dust collector as standard. We add wet scrubbers or bag filters depending on your local air quality standards, ensuring compliance with EPA or EU emission limits.

Q: What is the expected lifespan of the gear drive system?

A: With proper lubrication and alignment maintenance, the forged steel girth gear typically exceeds 10 years of continuous operation. The ZQ350 reducer uses heavy-duty bearings rated for 50,000+ hours.

Q: How quickly can you deliver customized configurations?

A: Standard YXHG-1212 units ship within 7 days from stock. Customized electrical systems, special materials, or capacity modifications require 15-20 days production time.
