Fertilizer Granulation Equipment – High-Efficiency Rotary Drum Solution

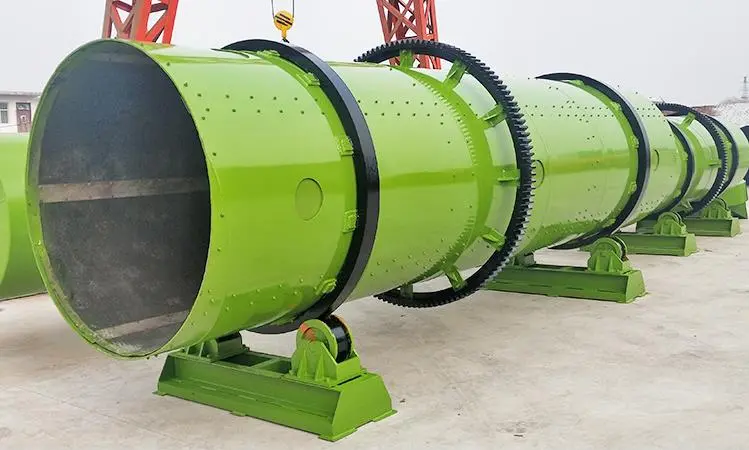

Yuxing's YXZG-2080 Fertilizer Granulation Equipment represents two decades of continuous innovation in organic and compound fertilizer production technology. This industrial-grade rotary drum granulator features an 18.5kW high-torque motor system, processing 8-12 tons per hour through its 2000mm diameter × 8000mm length rotating chamber. Operating at a precision-controlled 11 r/min with a 2-5 degree adjustable inclination, this product achieves over 93% granulation efficiency while producing uniform 2-5mm spherical particles.

The equipment serves fertilizer plants requiring stable continuous production, equipped with corrosion-resistant linings and CE/ISO certification. With over 50 countries relying on Yuxing's solutions, this system delivers exceptional mechanical strength and dust-free handling for modern agricultural supply chains.

What Is Fertilizer Granulation Equipment and Why Your Plant Needs It?

Fertilizer Granulation Equipment transforms powdered or slurry materials into uniform solid granules through controlled mechanical and thermal processes. This technology solves three critical production challenges you face daily.

First, it eliminates dust pollution during transport and application. Powdered fertilizers lose 15-20% material to wind drift alone.

Second, granulation ensures even nutrient distribution. Each pellet contains the exact NPK ratio your soil analysis demands.

Third, spherical granules resist moisture absorption. Your products maintain shelf stability for 12+ months in standard warehouse conditions.

How Fertilizer Granulation Equipment Works – The Complete Process

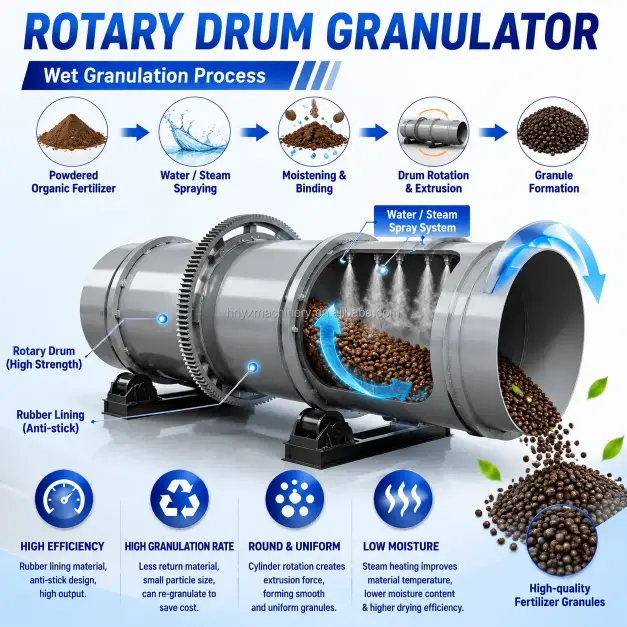

The YXZG-2080 rotary drum system operates through a continuous rolling-bed granulation method. Raw materials enter the slightly inclined rotating cylinder at controlled moisture levels (typically 25-30%).

As the drum rotates at 11 r/min, internal lifting flights elevate and cascade materials. This creates a rolling motion that gradually builds particle size through layer-by-layer adhesion.

Liquid binders are sprayed through strategically positioned nozzles. The tumbling action distributes moisture evenly while centrifugal force shapes particles into spheres.

The adjustable inclination angle controls residence time. Steeper angles (4-5°) accelerate material flow for lower-density products, while gentler slopes (2-3°) extend contact time for harder compounds.

Temperature regulation occurs through steam injection ports. Heat activates chemical binders in NPK formulations and reduces final drying requirements by 30-40%.

Finished granules exit through the discharge end where undersized particles recirculate automatically. This closed-loop system maximizes your material utilization.

Technical Specifications – Built for Industrial Performance

Wide Application Scenarios Across Fertilizer Production

Large-Scale NPK Compound Manufacturing

Your high-volume chemical fertilizer plant benefits from continuous 24/7 operation capability. The rotary drum handles steam-assisted reactions during granulation, producing uniform compound blends with precise nutrient ratios.

Organic Waste Valorization Projects

Municipal sludge and livestock manure processing requires equipment that tolerates variable moisture content. This system processes fermented organic materials at 25-35% moisture, converting waste streams into marketable bio-organic pellets.

Specialty Controlled-Release Production

Precision agriculture demands perfectly spherical base granules for polymer coating applications. The drum's gentle rolling action produces smooth-surfaced particles ideal for your coating line integration.

Blended Fertilizer Operations

Mid-scale producers benefit from rapid formula changeovers. Clean the drum in 15 minutes between different NPK ratios without cross-contamination concerns.

Key Advantages That Maximize Your Production Efficiency

Superior Granule Quality

The continuous tumbling action creates exceptionally round particles with 85%+ sphericity. Your bagged products resist breakage during multi-stage logistics.

High Material Adaptability

Process both organic and inorganic formulations without equipment modifications. The corrosion-resistant lining withstands acidic ammonium compounds and alkaline phosphate materials equally.

Energy-Efficient Operation

The 18.5kW motor consumes 40% less energy than comparable output models. Integrated steam utilization reduces your downstream drying costs significantly.

Low Maintenance Requirements

Wear-resistant internal linings last 5-8 years under normal production schedules. Simple scraper blade replacement takes just 2 hours without specialized tools.

Scalable Production Flexibility

Adjust output from 8 to 12 tons hourly by modifying feed rates and rotation speed. This range accommodates seasonal demand fluctuations without capital reinvestment.

Global Customization Capabilities for Your Specific Requirements

Yuxing's 20+ years serving international markets means your regional needs are anticipated. We configure voltage standards (220V-480V, 50/60Hz) matching your local grid specifications.

Control systems integrate with Siemens or Schneider PLCs based on your existing plant automation. Multi-language HMI interfaces support your operators in their native language.

Environmental compliance packages include dust collection integration points and noise dampening configurations meeting EU, US-EPA, or local standards.

OEM branding services apply your company colors and logos for resale projects. Private labeling transforms Yuxing engineering into your branded solution.

CE certification comes standard for European markets. Additional certifications (UL, CSA, etc.) are available upon request with 15-20 day lead times.

Comprehensive Support Throughout Your Project Lifecycle

Your investment begins with factory layout consultation. Our engineers design material flow patterns optimizing your available floor space and existing infrastructure.

Installation teams provide on-site commissioning with complete operator training. Your staff learns maintenance procedures, troubleshooting protocols, and optimization techniques during 3-5 day intensive sessions.

Remote video support resolves 90% of operational questions within 24 hours. Our technical team accesses real-time production data when you grant temporary system permissions.

Spare parts inventory recommendations prevent unexpected downtime. We maintain common wear components in regional warehouses for 48-hour delivery across major markets.

Production optimization consultations occur at 6 and 12 months post-installation. We analyze your actual throughput data and recommend adjustments improving efficiency by 8-15%.

Lifetime technical access means your 2024 equipment purchase receives support in 2034 and beyond. Yuxing's continuous operation model ensures institutional knowledge retention.

​​​​​​​

FAQ

Q: Why is my granulation rate dropping below 90%?

A: Check your liquid-to-solid ratio first. Most issues resolve by adjusting binder moisture to 22-28%. Worn scraper blades are the second common cause—inspect monthly.

Q: Should I choose a disc or rotary drum granulator?

A: Rotary drums like the YXZG-2080 are your best choice for continuous production above 8 t/h. Disc granulators suit batch operations under 5 t/h with frequent formula changes.

Q: Can this equipment handle corrosive ammonium chloride formulations?

A: Yes, but specify the anti-corrosion package during ordering. We install specialized rubber-polymer composite linings rated for pH 3-11 environments.

Q: What's the realistic lifespan of internal wear components?

A: With proper lubrication schedules, expect 5-8 years from liners and 10+ years from gear assemblies. Abrasive materials like rock phosphate reduce these estimates by 20-30%.

Q: Does the system support automated quality monitoring?

A: Absolutely. Our PLC integration monitors rotation speed, feed rate, temperature, and motor load in real-time. Set threshold alarms for any parameter deviation.
