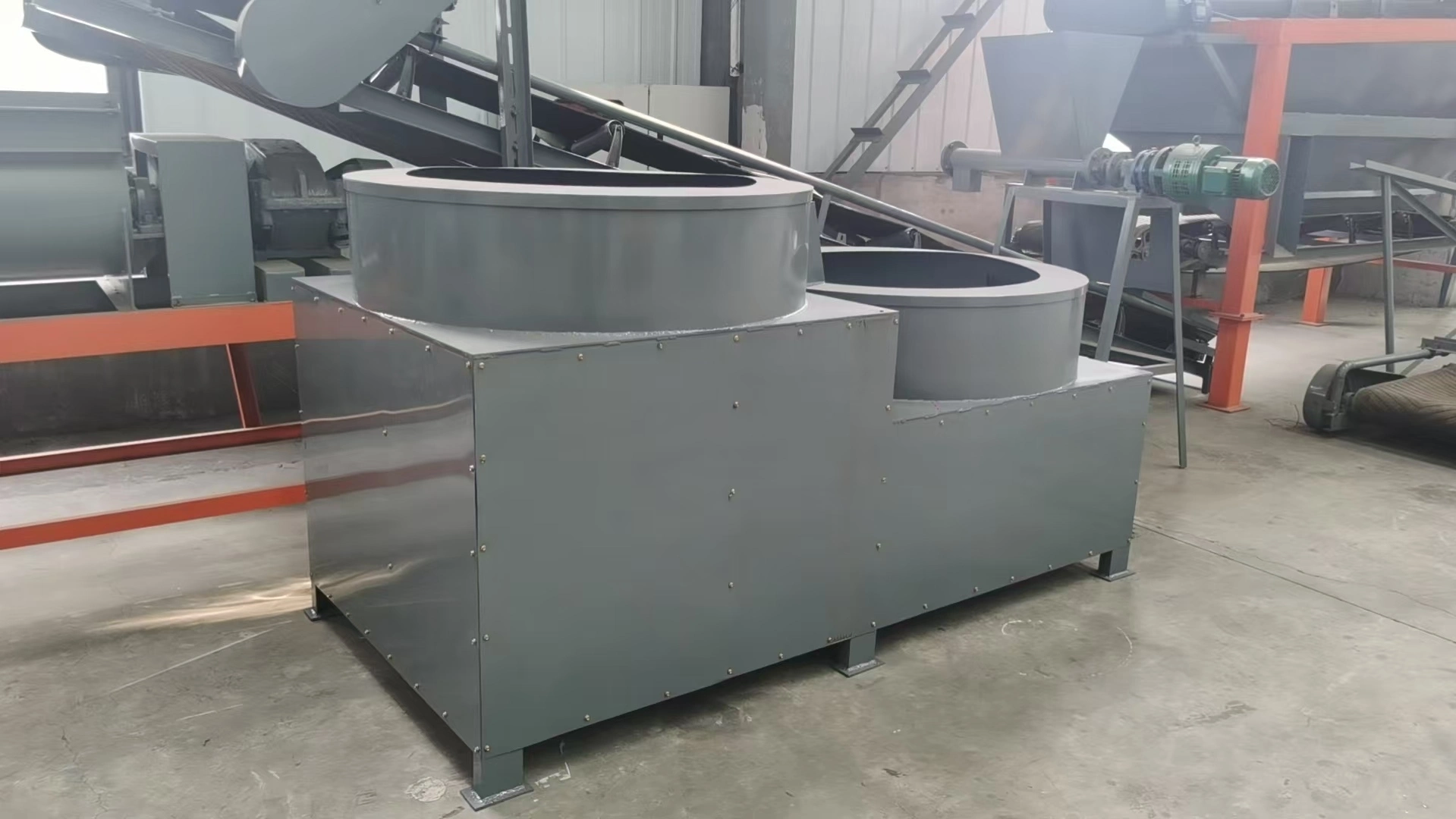

Fertilizer Pellet Machine

Fertilizer Pellet Machine - Premium Organic Granulation System

Yuxing's Fertilizer Pellet Machine Model YXPY-1500 represents over 20 years of specialized engineering in organic waste treatment. With dual 11kW motors delivering 5-8 tons per hour capacity, this rounding equipment transforms coarse granules into dense, uniform pellets for premium commercial-grade fertilizers.

Compact dimensions of 3200×1550×1600mm enable flexible plant layout integration. CE and ISO certified construction ensures international compliance. Our proprietary rounding technology achieves >95% sphericity rate while preserving microbial viability through temperature-controlled processing below 60°C.

Backed by lifetime 7×24 technical support and customizable voltage configurations, this system serves bio-organic plants, NPK blending facilities, and large-scale plantations across 50+ countries.

Why Choose Yuxing Fertilizer Pellet Machine

Your production line demands equipment that eliminates downtime and maximizes granule quality. Yuxing solves three critical manufacturing challenges simultaneously.

Superior Wear Resistance

Alloy steel rollers and dies achieve 55-60 HRC hardness ratings. You'll process 800-1,200 operational hours per die cycle, reducing replacement costs and production interruptions.

Precision Moisture Adaptation

The system handles 15-25% moisture content without blockage. Adjustable roller gaps from 0.1-0.3mm let you calibrate pellet density for different raw materials—whether poultry manure compost or chemical NPK blends.

Integrated Cooling Technology

Built-in thermal regulation maintains extrusion temperatures below critical thresholds. Your beneficial microbes remain viable while achieving the compressive strength needed for mechanical broadcasting systems.

How Fertilizer Pellet Machine Works?

Understanding the pelletization process helps you optimize your production parameters and troubleshoot performance issues effectively.

Stage 1: Material Preparation

Pre-crushed fertilizer powder enters the hopper at controlled moisture levels. A magnetic separator removes metal contaminants that could damage compression components. The feeder maintains consistent flow rates to prevent die blockage.

Stage 2: High-Pressure Extrusion

Dual 11kW motors drive rotating rollers against a stationary ring die. Raw material gets forced through precision-drilled apertures at compression ratios between 1:3 and 1:6. This creates cylindrical pellets with uniform cross-sections.

Stage 3: Pellet Formation & Cooling

Extruded cylinders break at predetermined lengths as they exit the die. Integrated air channels dissipate frictional heat immediately. Temperature regulation prevents nutrient volatilization and microbial die-off during this critical phase.

Stage 4: Rounding & Polishing

The YXPY-1500's proprietary rounding drum tumbles rough pellets against curved surfaces. Centrifugal force creates smooth, spherical granules with >98% durability index scores—essential for pneumatic application equipment.

Technical Specifications

Key Applications Across Industries

Your fertilizer production goals determine how you'll configure and operate this versatile pelletization system.

Bio-Organic Composting Facilities

Municipal waste treatment plants process fermented livestock manure and crop residues into commercial bio-fertilizers. The machine's continuous-duty design supports 24/7 operations required for high-volume contracts.

NPK Chemical Blending Plants

Compound fertilizer manufacturers fuse nitrogen, phosphorus, and potassium powders into uniform granules. Adjustable compression settings accommodate different chemical formulations without equipment changeovers.

Precision Agriculture Operations

Large plantations create custom nutrient blends tailored to specific soil analyses. Pelletized output withstands mechanical stress from air-seeders and fertigation systems used in complex field topographies.

Organic Certification Programs

Producers targeting premium markets use low-temperature pelletization to maintain microbial additive viability. This preserves beneficial bacteria counts required for organic certification standards.

Quality Control & Inspection Standards

You need verifiable performance metrics before committing to production equipment investments.

Rockwell Hardness Testing

For a Fertilizer Pellet Machine, we verify ring dies and rollers reach 55-60 HRC through certified laboratory analysis. This ensures your compression components resist abrasive materials like rock phosphate and dolomite limestone.

Dynamic Balance Analysis

Zero-vibration rotor assembly prevents premature bearing failure. Our 72-hour continuous load testing identifies friction anomalies before equipment leaves the factory floor.

Pellet Durability Index (PDI)

Output samples undergo tumble testing to confirm >98% integrity after simulated transport conditions. Your finished product reaches customers without crumbling or nutrient loss.

Thermal Imaging Validation

Infrared scanning monitors gearbox and bearing temperatures during stress testing. This predicts maintenance intervals and prevents unexpected shutdowns during peak production seasons.

Customization & Global Compliance

Your regional regulations and operational environment require tailored engineering solutions.

Electrical Standards Adaptation

We configure voltage specifications for your local grid—whether 380V/50Hz European systems or 440V/60Hz North American infrastructure. Siemens and Schneider component integration ensures reliable performance.

Environmental Protection Systems

Dust collection ports and noise dampening enclosures meet stringent emission standards. This helps you achieve local environmental permits for facility expansion projects.

PLC & HMI Customization

Multi-language touchscreen interfaces simplify operator training. Remote monitoring capabilities let your technical team diagnose issues without on-site visits.

OEM Branding Options

Private labeling services support equipment distributors and turnkey plant contractors. We manufacture to your specifications while maintaining our quality standards.

​​​​​​​

FAQ

Q: Why is my granulation rate decreasing over time?

A: This typically indicates incorrect moisture-to-raw-material ratios or improper roller-to-die gap settings. Recalibrating the gap to 0.1-0.3mm usually restores efficiency. Check your moisture meters to ensure 15-25% consistency.

Q: Can one machine process both organic and inorganic materials?

A: While possible, different compression ratios are required. Organic materials need higher compression (1:5+) while chemical NPK requires less (1:3). We recommend maintaining separate dies for material-specific production runs.

Q: How often should the ring die be replaced?

A: High-quality alloy steel dies typically last 800-1,200 hours depending on raw material abrasiveness. Track your operating hours and inspect for wear patterns during scheduled maintenance intervals.

Q: What causes frequent blockages in the machine?

A: Blockage usually results from excessive moisture (>30%) or metal impurities in feedstock. Install a magnetic separator in your feeder line and monitor moisture levels with inline sensors.

Q: Does pelletizing destroy beneficial microbes in organic fertilizer?

A: Standard extrusion generates heat, but our optimized cooling system keeps internal temperatures below 60°C. This preserves microbial viability while achieving the density needed for mechanical application.

Contact Us

Ready to upgrade your fertilizer production capacity with Fertilizer Pellet Machine? Our engineering team will design a customized solution for your specific requirements.

• Request Production Line Solution – Complete system integration analysis
• Request Plant Layout – Optimize your facility workflow
• Download Catalog – Full technical specifications
• Get Turnkey Quotation – End-to-end project pricing

Email: yuxing@hnyxmachinery.com
