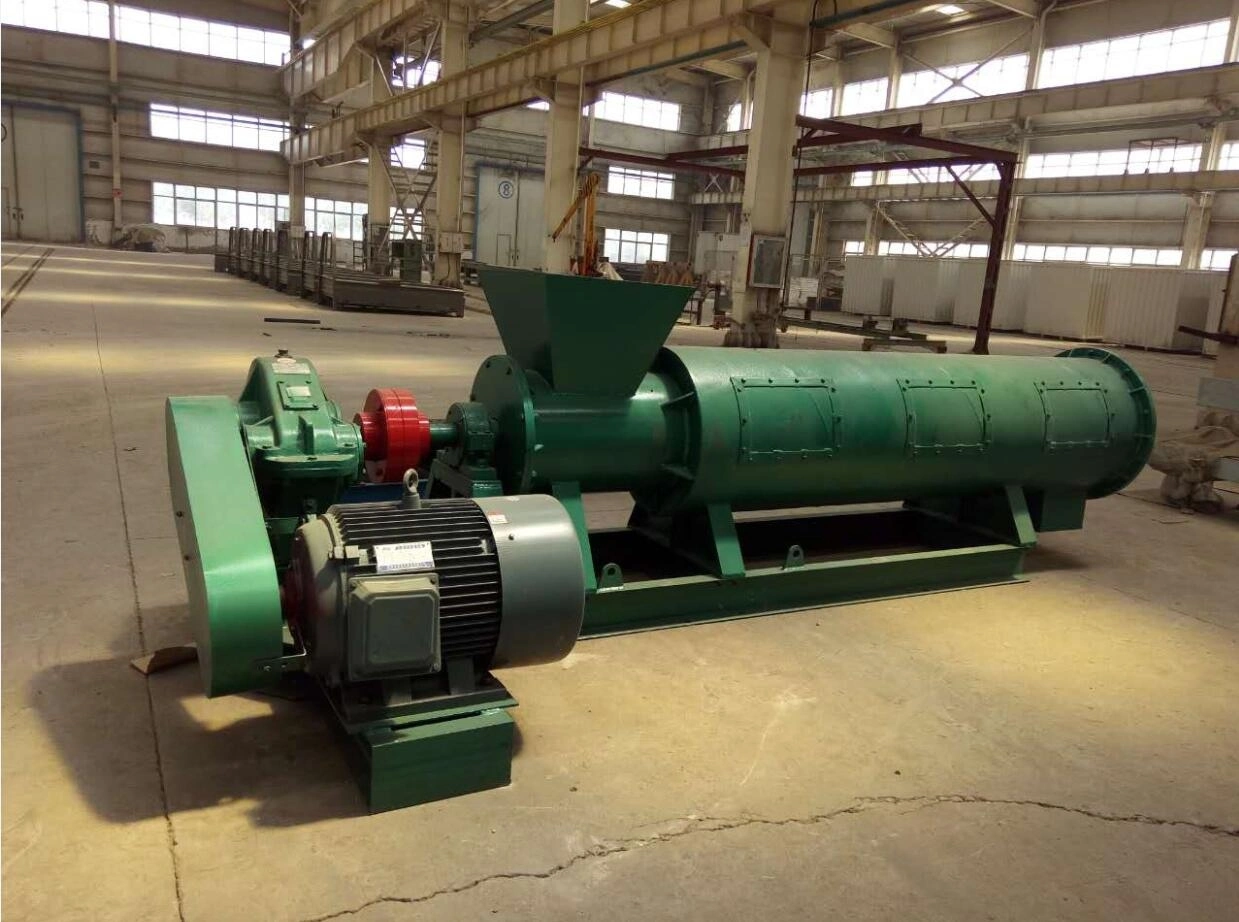

Organic Fertilizer Pellet Making Machine

Organic Fertilizer Pellet Making Machine – Industrial-Grade Granulation Solution

The from Henan Yuxing Intelligent Equipment converts organic waste efficiently. Our granulation systems pelletize 95%+ and process 1-20 tons per hour. We have 20 years of fertilizer equipment experience serving 50+ countries.

These machines continually process 20-40% moisture feedstock with vacuum-treated alloy steel components attaining HRC 55-60 hardness. IE3-grade motors, superior lubrication systems, and 24/7 corrosive operation improve your production.

Our Model YXPY-1200 series, with 7.5kW×2 dual-motor design and 3-5t/h throughput, converts animal manure, agricultural leftovers, and municipal sludge into commercial-grade fertilizer pellets

Technical Specifications

How It Works

The Organic Fertilizer Pellet Making Machine transforms loose organic waste through a three-phase mechanical process.

Phase 1: Material Conditioning

Your pre-fermented feedstock enters the distribution chamber where rotating agitators ensure uniform density. The system maintains optimal 25-35% moisture content through automated sensors, preventing material bridging in high-fiber inputs.

Phase 2: Compression Granulation

Counter-rotating rollers press material through precision-engineered die holes under 50-100 MPa pressure. The vacuum-treated alloy steel ring die withstands continuous friction while shaping pellets. Centrifugal force and mechanical compression create dense, spherical granules with consistent diameter.

Phase 3: Shaping & Discharge

Formed pellets pass through the synchronized cutter blade system, which operates at adjustable speeds for size control. The discharge conveyor immediately transfers finished pellets to cooling systems, maintaining production flow without bottlenecks.

Our advanced lubrication system injects oil every 4-8 hours automatically, ensuring bearing temperatures stay within 40°C above ambient during continuous operation.

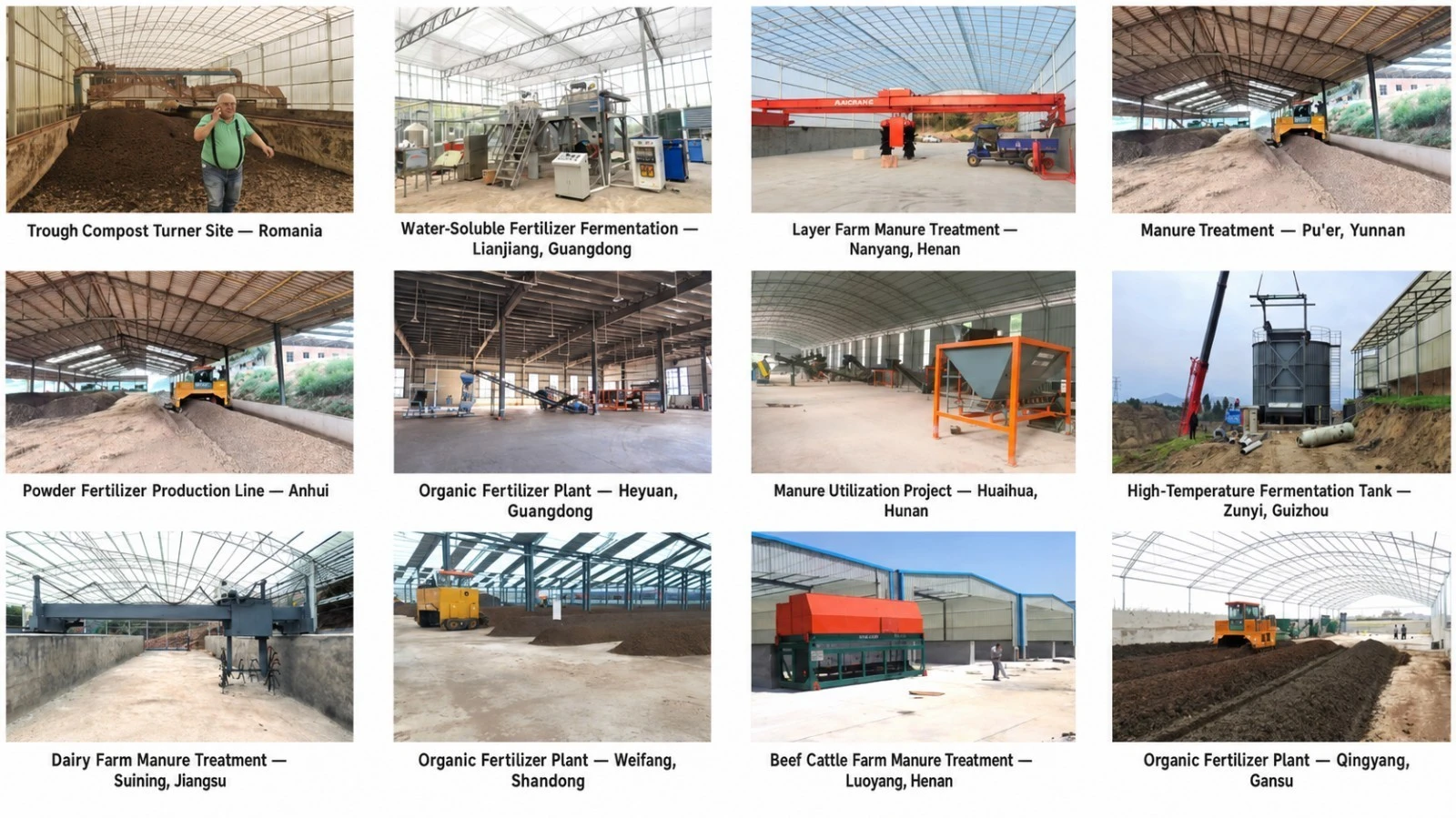

Core Application Scenarios

Your fertilizer production challenges find targeted solutions across three industrial environments.

Large-Scale Livestock Operations

Converting 10-50 tons daily of wet poultry or pig manure into deodorized commercial pellets solves environmental compliance issues. The machine handles high-ammonia feedstock that corrodes standard equipment, maintaining stable output in 24/7 farm waste processing facilities.

Municipal Waste Treatment Centers

Urban circular economy projects demand heterogeneous material processing. You can convert fermented kitchen waste and sewage sludge with varying fiber content into landscaping fertilizers, meeting strict municipal quality standards for public green space applications.

Agricultural Byproduct Processing

Sugar mills and ethanol plants generate high-viscosity filter mud and vinasse that clogs conventional machinery. Our machine's reinforced stirring tooth configuration transforms these sticky residues into nutrient-rich soil conditioners, adding revenue streams to your primary operations.

Key Technical Advantages

Enhanced Durability Engineering

Vacuum heat-treated compression components extend service life 3-5 times compared to standard equipment. Your maintenance intervals stretch to 2000+ operational hours, reducing downtime costs significantly.

Intelligent Feeding Control

Frequency converter-regulated feeding systems eliminate pellet size inconsistency. The magnetic separator removes metal contaminants before granulation, protecting die integrity and ensuring uniform product quality.

Adaptable Configuration Options

High-torque motor configurations handle fibrous materials like straw composites. Customizable die hole patterns accommodate pellet diameter requirements from 2mm to 8mm, matching diverse market specifications.

Energy-Efficient Operation

IE3-grade motors reduce power consumption by 15-20% versus older IE1 systems. Dynamic balance testing ensures vibration-free operation, preventing premature bearing failure and minimizing energy waste.

Quality Control Standards

We implement four-tier inspection protocols before equipment leaves our facility.

Metallurgical Verification

Chemical composition analysis confirms wear-resistant alloy specifications. Hardness testing validates HRC 55-60 ratings on all compression surfaces, guaranteeing performance in abrasive organic material processing.

Performance Trial Runs

Each unit undergoes 4-hour continuous load testing with actual feedstock. We monitor noise levels (must remain below 85dB), bearing temperature rise, and pellet consistency across the production cycle.

Precision Assembly Checks

Dynamic balance testing on main shafts and granulation disks eliminates vibration sources. Your equipment arrives calibrated for immediate installation without field adjustments.

Output Quality Assessment

Granulation performance tests measure pellet diameter uniformity and crushing strength. Samples must withstand transport simulation without disintegration, ensuring your product reaches customers intact.

Comprehensive Solutions & Customization

Yuxing provides turnkey fertilizer plant integration beyond standalone machinery.

Complete Production Line Design

Your facility benefits from 20+ years of layout optimization experience. We integrate crushers, mixers, the product, dryers, and packaging systems into workflow-optimized configurations.

Global Standards Compliance

CE certification and international voltage adaptation (220V-480V, 50Hz/60Hz) ensure your equipment meets regional regulations. Siemens or Schneider electrical components provide reliable control in any market.

Advanced Automation Options

Multi-language HMI touchscreens and PLC systems enable remote monitoring. You gain real-time production data for capacity optimization and predictive maintenance scheduling.

Rapid Delivery Commitment

Stock standard models ship immediately. Customized configurations deliver within 15-20 days, significantly shortening your project timelines compared to industry averages.

After-Sales & Technical Support

We guarantee lifetime technical assistance for operational success.

Installation & Commissioning

Our engineers provide on-site setup or remote video guidance for equipment assembly. You receive operator training covering material preparation, machine operation, and routine maintenance procedures.

24/7 Global Response

Technical support teams respond to troubleshooting requests around the clock. Spare parts ship from regional warehouses, minimizing production interruptions.

Production Optimization Services

Process consultations help you adjust moisture levels, feeding rates, and die configurations for maximum efficiency. Capacity upgrade paths support your business growth without complete system replacement.

Cooperative Innovation Access

Through our partnership with Shandong Baolai Lailai Group, you gain access to advanced fermentation agent formulations and microbial technology, enhancing your final product's nutrient profile.

​​​​​​​

FAQ

Q1: What moisture content works best for the product?

A: The ideal range is 25-35% moisture, though our New Type Organic Fertilizer Granulator handles up to 40% with proper configuration adjustments.

Q2: How do I extend wear part lifespan?

A: Install magnetic separators upstream to remove metal contaminants. Follow our recommended lubrication schedule of every 4-8 operational hours to maintain roller integrity.

Q3: Can the machine process high-fiber materials like straw composites?

A: Yes. Specify our high-torque motor option with reinforced internal stirring teeth during ordering to prevent material bridging in fibrous feedstock.

Q4: Why do pellet sizes vary in my production?

A: Inconsistent feeding speeds or worn cutter blades cause size variation. We recommend frequency converter installation for stable material flow and regular blade inspection every 500 hours.

Q5: Is post-granulation drying necessary?

A: Yes. Pellets typically exit at 30-35% moisture and require rotary drying to below 14% moisture for long-term storage stability and transportation safety.
