Multi-Bin Batching System

Multi-Bin Batching System - Precision Automated Batching for Modern Fertilizer Production

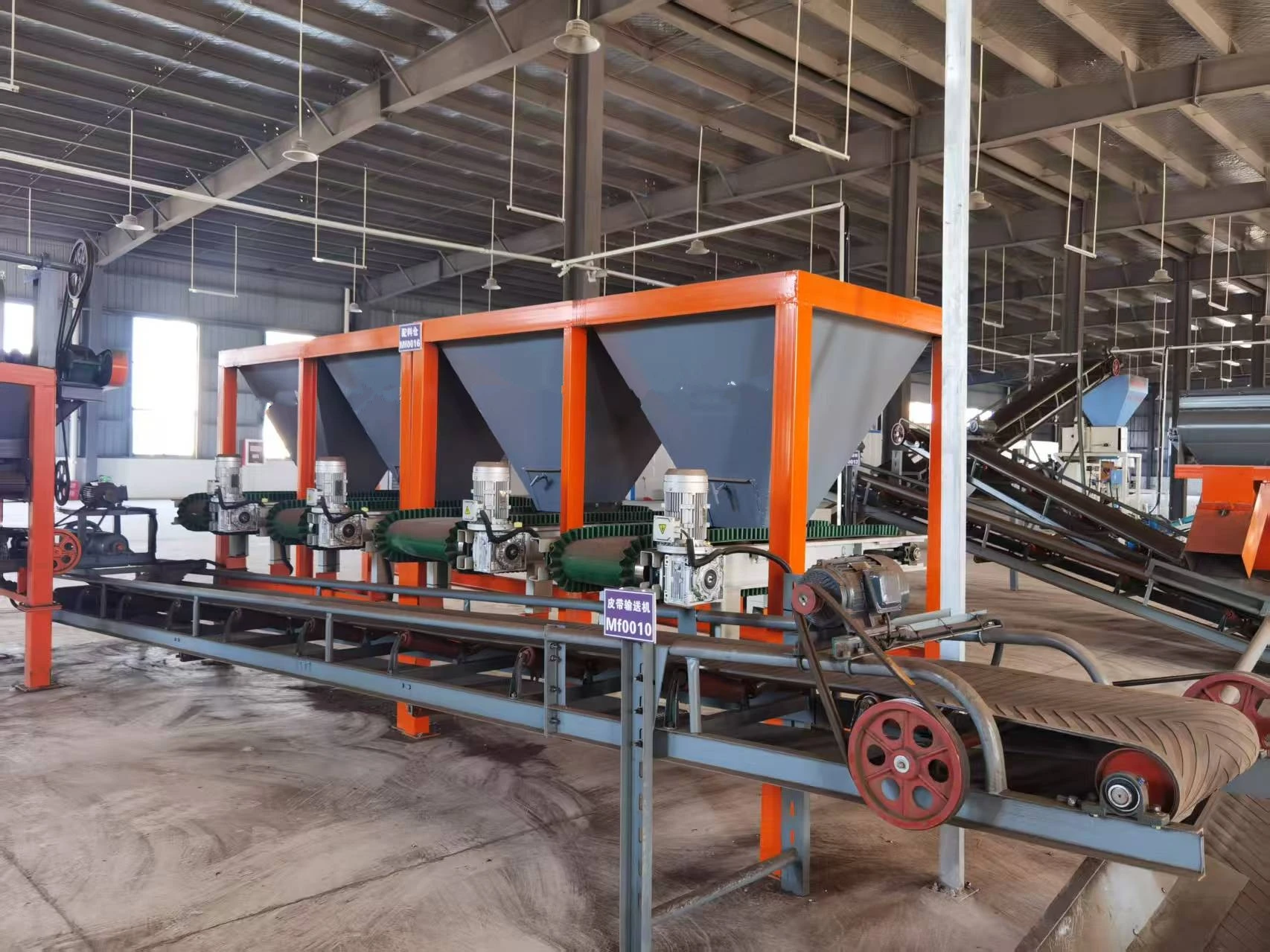

The Multi-Bin Batching System Model YXPL-1500 combines 20 years of fertiliser industry experience into a highly automated system. Built for commercial organic and compound fertiliser production, each 1.5kW bin has standard dimensions of 1.5m×1.5m×1.5m. The system has sensor-based quantitative weighing, automated drop correction, startup self-check, cumulative measurement, and easy touch-screen control. Production capacity may be customised to meet plant throughput. This CE and ISO certified equipment offers dependable performance, lifetime technical support, installation instruction, and replacement parts consulting.

What is a Multi-Bin Batching System?

A product is an advanced industrial automated assembly that weighs and dispenses raw materials from distinct storage compartments into a processing stream or collecting hopper.

This system manages complicated formulas with excellent repeatability using sophisticated load cells, metering feeders, and centralised PLC management. It solves industry issues including manual measurement errors, laborious material handling, and batch traceability lag.

By avoiding costly material loss from overshooting goal weights, it alters high-volume manufacturing environments. Your business improves consistency, speed, and digital control over every fertiliser element.

How It Works

The system seamlessly integrates mechanical accuracy and sophisticated software control. Overhead bins with VFD-controlled discharge gates hold raw ingredients.

When you start a batch using the touch-screen interface, the PLC activates the feeders sequentially or simultaneously, depending on your formula. High-resolution strain gauge load cells measure weight in real time with 0.05% to 0.1% full-scale precision.

Automatic drop adjustment accounts for material in flight when each constituent approaches its intended weight. This guarantees your final batch meets standards even at high discharge rates.

For comprehensive traceability, the product logs timestamps, weights, and operator ID after dispensing. The device then cleans common chutes with an automated air-purge cycle to prevent formulation cross-contamination.

Technical Properties and Core Advantages

The technical foundation of a Multi-Bin Batching System rests on high-precision weighing electronics and robust structural engineering. Key parameters include modular scalability from 2 to 32+ bins, material flow rates controlled via VFD, and compliance with OIML R76 and NIST Handbook 44 standards.

Core advantages include high throughput capabilities, modular expansion for adding new ingredients, advanced dust suppression mechanisms, and seamless integration with ERP systems via Modbus TCP/IP or Profinet protocols. Your plant benefits from reduced labor costs, minimized waste, and real-time inventory tracking that feeds directly into your management software.

Industrial Applications Across Sectors

Originally built for fertiliser manufacturing, the system is versatile in high-demand B2B situations. It provides exact cement, aggregate, and chemical admixture dosing in dusty, high-vibration construction and concrete conditions to retain structural integrity.

Animal feed and nutrition industries use it to handle complicated vitamin and mineral micro-ingredients and bulk grains. The technology fulfils animal health-critical cleanliness criteria and eliminates cross-contamination.

It handles hot, caustic silica sand and soda ash in glass and ceramic factories. Continuous, dependable input rates ensure chemical uniformity in furnaces, ensuring product quality.

Quality Control and Validation

To maximise ROI, buyers prioritise numerous essential inspection criteria. Quality control begins with static and dynamic accuracy testing to guarantee performance under different loads.

Repeatability testing ensures your device delivers the same weight for 100+ times. Environmental stress tests evaluate sensors' IP67 or IP69K moisture and dust resistance, crucial in fertiliser plants.

Software logic verification, or interlock testing, stops the system instantly if a feeder fails, preventing off-spec batches from accessing your manufacturing line. Final Factory Acceptance Testing (FAT) comprises material flow analysis to ensure no bridging or rat-holing with your bulk densities.

Every unit is tested before shipment due to Yuxing's 20+ years of frontline manufacturing. We provide full FAT reports and on-site commissioning to verify performance in your operating environment.

Customization and Global Adaptability

Yuxing's strong ODM and OEM capabilities ensure the system adapts to diverse global markets. We customize electrical configurations for local voltage standards and integrate components from Siemens or Schneider as specified.

PLC programming can be tailored for multi-language HMI interfaces, making operation intuitive for your local workforce. We accommodate private labeling and branding requirements for distributors and large-scale operations.

Environmental protection systems, including dust collection and air-purge mechanisms, can be enhanced to meet stringent local regulations. Capacity scaling and automation levels adjust to your production targets, whether you're starting with a pilot line or expanding an existing plant.

Our advanced export capabilities include optimized 40GP container loading, open-top container solutions for oversized units, and modular disassembly for international shipping. This reduces your transportation costs and ensures safe delivery anywhere in the world.

​​​​​​​

FAQ

Q: How does the product handle material bridging in bins?

A: We integrate pneumatic vibrators or fluidization pads controlled by the PLC to maintain consistent material flow, preventing blockages in sticky or cohesive materials.

Q: Can this system integrate with existing ERP software like SAP?

A: Yes, our systems utilize Modbus TCP/IP or Profinet protocols to sync batch data directly with high-level management software for real-time inventory tracking and production analytics.

Q: What is the typical calibration frequency for the weighing modules?

A: We recommend semi-annual professional calibration, though the system includes auto-zero tracking to manage daily drift and maintain accuracy between scheduled services.

Q: How is cross-contamination prevented between batches?

A: The system employs dedicated discharge chutes and automated air-purge cycles to clean the common collection hopper between different formulations, ensuring formula integrity.

Q: Is the system suitable for hazardous or explosive environments?

A: Yes, we provide ATEX and IECEx certified configurations with explosion-proof enclosures and intrinsically safe load cell barriers for volatile chemical batching applications.

Contact Us

Ready to upgrade your fertilizer production with a Multi-Bin Batching System? Yuxing delivers complete turnkey solutions backed by decades of industry leadership.

• Request Production Line Solution tailored to your capacity
• Request Plant Layout optimized for material flow
• Download Catalog with full technical specifications
• Get Turnkey Quotation including installation and training

Reach us at yuxing@hnyxmachinery.com today.
