Fertilizer Feeding System

Fertilizer Feeding System – Precision Nutrient Delivery for Modern Production Lines

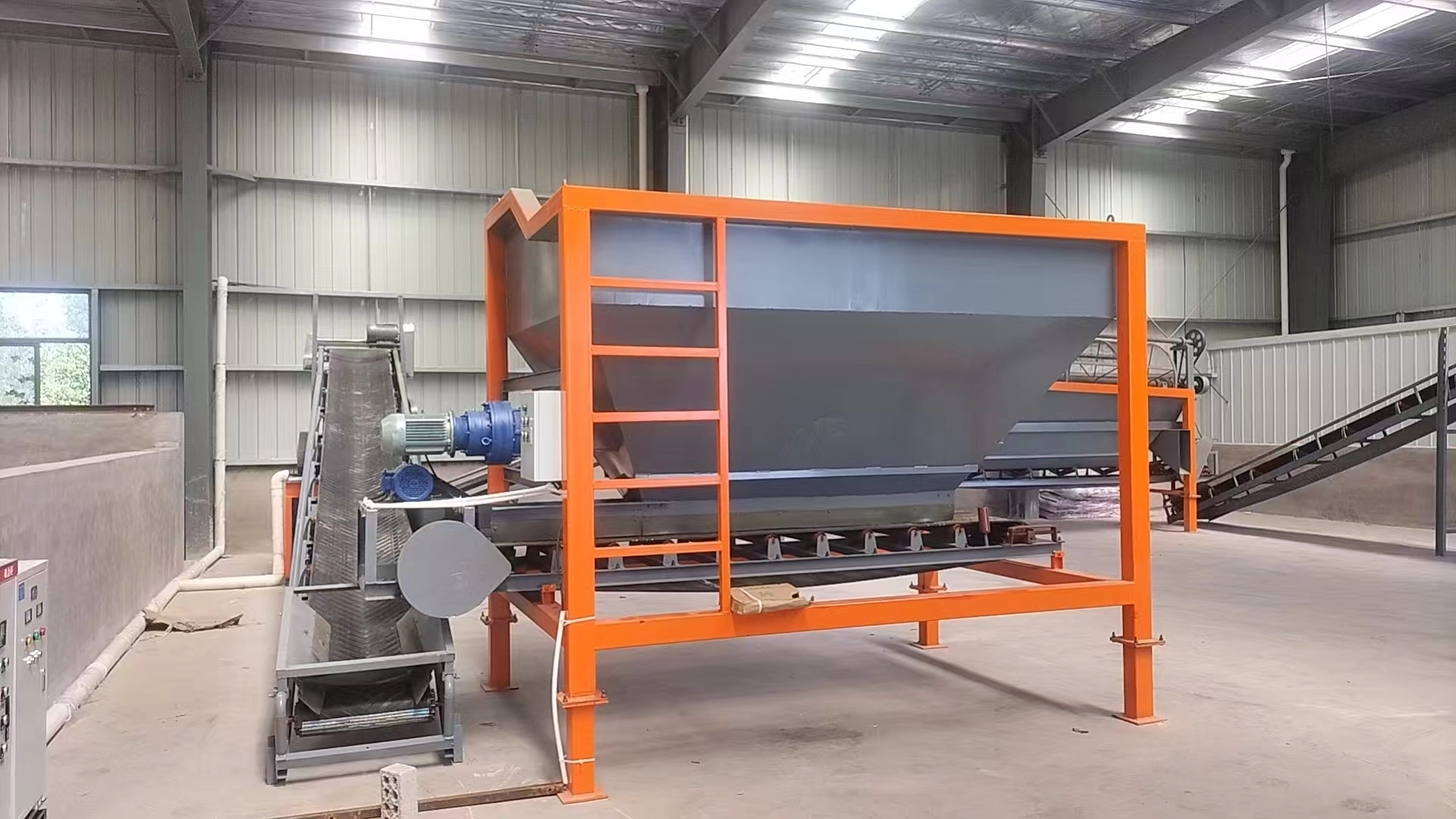

Industrial-grade loader feeder Yuxing's Fertilizer Feeding System (Model YXLC-3520) handles organic and compound fertiliser manufacturing material continuously and efficiently. This 3500×2000×2200mm system with dual-motor setup (3.0kW discharge + 0.55kW vibration) provides consistent feeding capacity of 3 to 20 tonnes per hour. The incorporated vibration motor avoids material adhesion and obstructions, while the frequency conversion speed control allows stepless discharge adjustment. This technology, supported by over 20 years of field expertise and installed in over 50 countries, assures continual raw material flow, minimises manual labour, and boosts fertiliser production line efficiency.

How the Fertilizer Feeding System Works?

Understanding operational mechanics maximises facility uptime and throughput.

The system starts with a sturdy hopper for granular and semi-moist organic materials. After loading raw materials manually or with front-end loaders, the 3kW frequency-controlled discharge motor starts a smooth, customisable flow onto the conveyor belt or into downstream equipment like crushers or mixers.

Continuous micro-vibrations over the hopper floor are crucial from the 0.55kW vibration motor. This keeps chicken dung, sludge, and high-moisture compost from sticking to metal surfaces. Results are consistent material release without manual intervention.

Stepless speed adjustment lets operators match feeding rates to crushing, mixing, or granulation devices. This precise control reduces bottlenecks and overloads, balancing plant productivity.

Technical Specifications

Key Features and Industrial Advantages

Your industrial environment requires reliable equipment during continuous operation and varying material conditions.

Stepless Speed Control for Perfect Synchronization

The frequency inverter permits real-time discharge speed adjustment. Whether processing 3 tonnes per hour during trial runs or 20 tonnes during peak production, you have full control without mechanical modifications.

Anti-Blocking Vibration

Costly downtime is common with sticky organic compounds. Material flows smoothly with the built-in vibration motor, minimising scraping and maintenance. Fermented cattle manure, moist compost, and biogas waste benefit from this design.

Durable Construction for Extreme Conditions

This feeder is made of heavy-duty steel with strengthened joints to withstand raw fertiliser ingredients' abrasion and corrosion. It works well in dusty, humid, high-temperature fertiliser plant settings.

Dual-Motor Energy Efficiency

Motors with separated discharge and vibration optimise power usage. You save money on power while increasing throughput, lowering your cost per tonne of completed goods.

Simple Integration with Full Production Lines

Starting your production chain with our Fertilizer Feeding System is crucial. It effortlessly integrates with belt conveyors, crushers, mixers, granulators, and dryers to offer stable material for automated, continuous processing.

Applications Across Fertilizer Production Scenarios

This feeding system works with various raw materials and manufacturing sizes.

Fertiliser Plants Organic

Manage fermented animal manure, crop wastes, mushroom waste, and municipal sludge. The vibration-assisted discharge guarantees smooth feeding even with fluctuating moisture content, enabling daily outputs from modest to large operations.

Making Compound Fertiliser

Blending and granulation systems accept urea, DAP, potash, and trace element additions. Precision speed control enables exact batching ratios, which maintains nutritional uniformity in your product.

Production Lines for Biofertilizer

Regular feeding minimises clumping and provides uniform mixing of microbial inoculants or bio-organic composites. A gentle handling approach retains beneficial microbes throughout material transfer.

Customised Industrial Projects

Yuxing's engineers customise hopper size, discharge breadth, motor voltage, and control interfaces for your process. If you work in tropical or frigid conditions, we adjust the equipment.

Why Choose Yuxing's Fertilizer Feeding System

You're buying a feeder and 20 years of engineering refinement and worldwide project expertise.

Successful Global Deployment

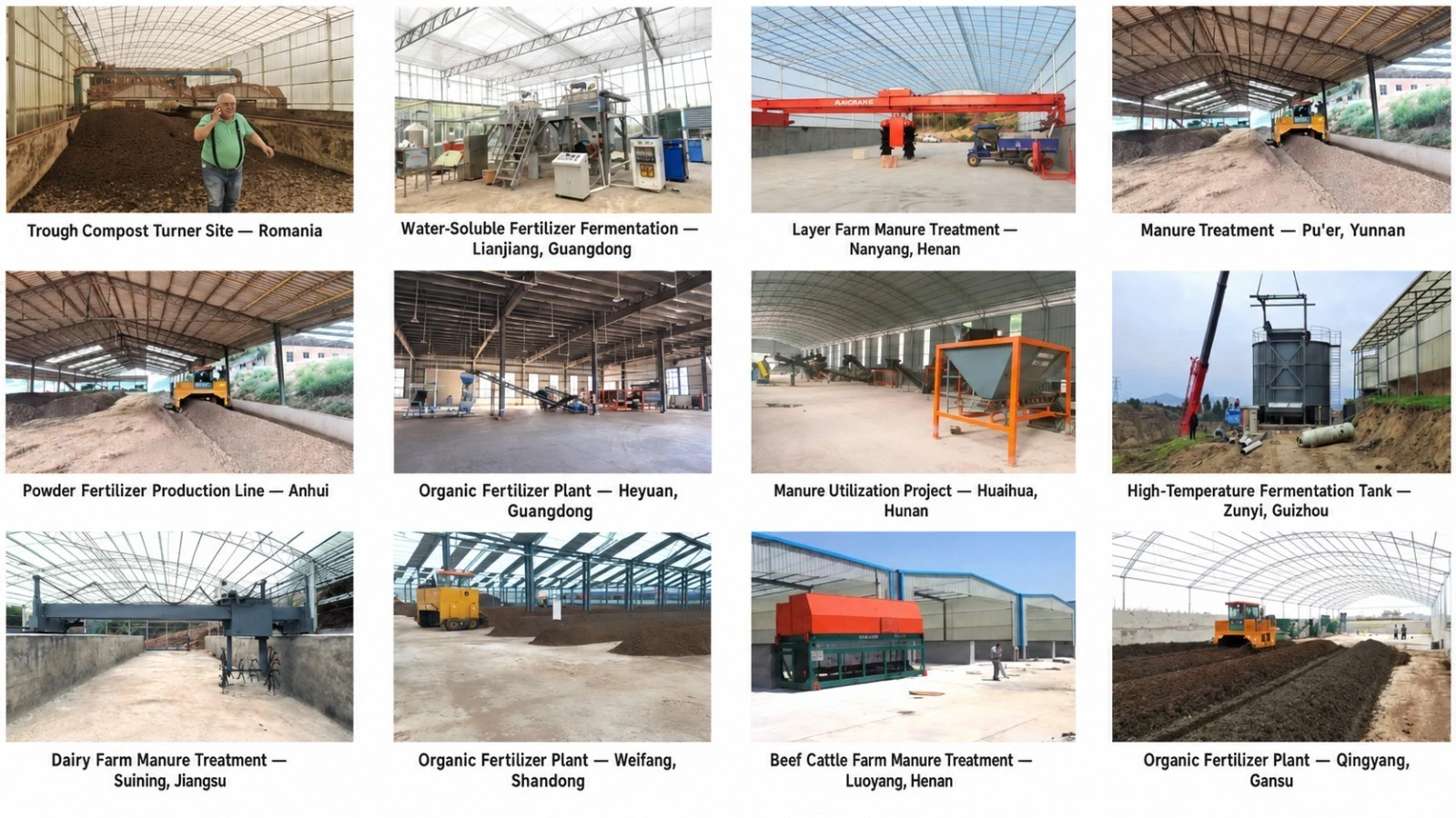

From humid Southeast Asian plants to dry Middle Eastern ones, our equipment works in over 50 nations. This worldwide track record shows flexibility and reliability under varied settings.

Rapid Delivery and Production Flexibility

Stocked standard models ship immediately. Customised configurations arrive in 15–20 days, speeding up project completion and ROI.

Complete Technical Support

Yuxing offers 24/7 service, including remote installation, video training, troubleshooting, and replacement parts consulting. You always have experienced aid when you need it.

One-Stop Solution

In addition to feeding systems, we provide comprehensive manufacturing lines for fermentation, crushing, granulation, drying, and packing. Compatibility, procurement, and coordination are simplified by this integrated approach.

OEM/ODM customisation

We support CE certification, voltage standards (220V/380V/415V/480V), Siemens or Schneider electrical components, PLC automation, multi-language HMI interfaces, and private labelling. We support your brand and local laws.

Installation and Operational Best Practices

Good setup and maintenance improve equipment life and boost productivity.

Basis and Position

Place the feeder on a flat concrete platform with loading equipment clearance. To avoid spillage, line the discharge outlet with downstream conveyors or equipment inlets.

Safety and Electrical Connection

Make sure your power supply fits motor specs. For safety, connect the frequency inverter according to the wiring design and place emergency stop switches within operator reach.

Materials Handling Guidelines

Avoid overfilling the hopper. To avoid motor strain and mechanical damage, remove large clumps or foreign items before feeding. Regular vibration motor mounting bolt check guarantees stability.

Scheduled Maintenance

Weekly inspect motor bearings and lubrication locations. Check belts and electrical connections monthly. Quarterly hopper cleaning removes compacted residue. This easy routine minimises breakdowns and preserves performance.

​​​​​​​

FAQ

Q1: Can this feeder handle both dry and moist materials?

A: Yes. The vibration motor is specifically designed to prevent adhesion of moist, sticky materials like fermented manure or sludge. Dry granular materials flow smoothly without requiring vibration assistance.

Q2: How do I adjust the feeding speed?

A: The frequency inverter allows you to adjust discharge speed continuously via a control panel knob or digital interface. No mechanical parts need replacement—simply dial in your desired rate based on downstream capacity.

Q3: What is the typical maintenance cycle for the vibration motor?

A: Inspect mounting bolts and check bearing lubrication every 500 operating hours. Under normal conditions, the vibration motor requires minimal maintenance and can operate reliably for years with routine inspection.

Q4: Can the system be integrated into automated production lines?

A: Absolutely. The feeder can be connected to PLC control systems for automated start/stop sequences, speed adjustments, and interlocking with downstream equipment. We provide interface specifications and support integration with your existing automation infrastructure.

Q5: What voltage options are available for international markets?

A: We customize electrical configurations to match local standards, including 220V, 380V, 415V, and 480V three-phase power. CE-compliant electrical components are available for European markets, and we support other international certifications as required.
