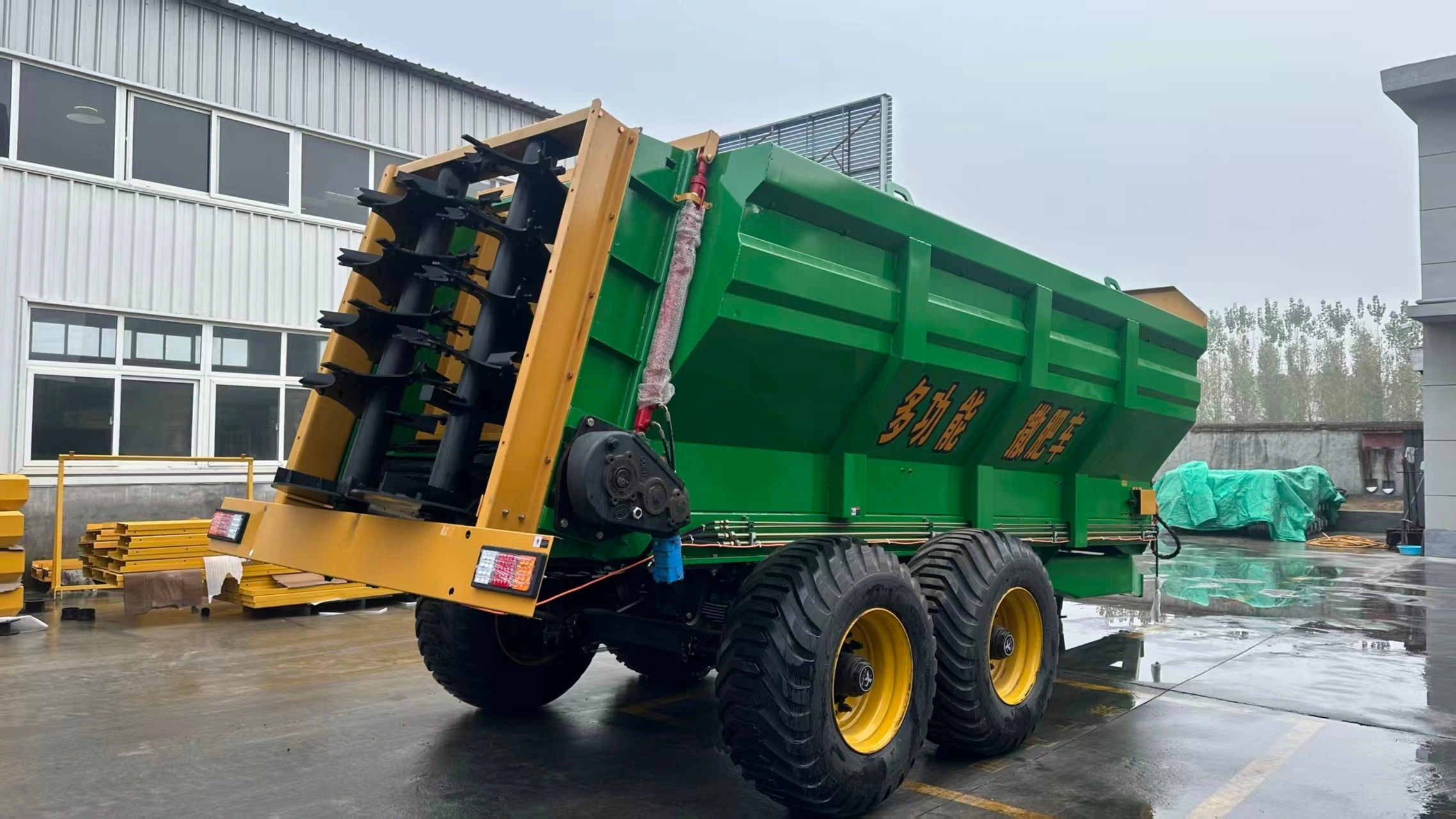

Organic Fertilizer Spreader

Organic Fertilizer Spreader - Professional Vertical Axle Manure Distribution Solution

Yuxing's YXSF-LZQY-5 Organic Fertilizer Spreader delivers precision nutrient distribution for modern agricultural operations. With over 20 years of fertilizer equipment manufacturing expertise, we've engineered this vertical axle spreader to handle 5m³ capacity loads with superior uniformity.

The double vertical shaft spreading system ensures a consistent distribution pattern across 8-12 meters, while the robust 1900kg frame features 4mm steel plate construction and Fuhua heavy-duty axle. Powered by tractors ≥65HP, this product achieves a Coefficient of Variation below 15%, meeting ASAE S341.5 standards for field application accuracy.

Our chain scraper conveyor and dual hydraulic cylinder door mechanism work seamlessly to prevent blockages when handling high-moisture manure and fibrous compost materials.

What Is an Organic Fertilizer Spreader?

A product is specialized agricultural machinery designed to uniformly distribute solid and semi-solid organic materials across farmland. Unlike chemical fertilizer spreaders, this equipment handles challenging materials including livestock manure, compost, bio-solids, and organic waste.

The machine solves three critical pain points you face daily. First, it eliminates the backbreaking labor of manual application. Second, it prevents nutrient hot spots that damage crops and waste resources. Third, it withstands the corrosive organic acids that destroy conventional equipment.

Your fields receive consistent nutrient coverage, improving soil organic matter while reducing application time by 70% compared to traditional methods.

How It Works - Advanced Double Vertical Shaft Technology

The operational sequence begins when you load organic material into the 3250×1330×1800mm hopper. Your tractor's PTO shaft drives the triple gearbox system, activating the chain scraper floor conveyor.

As material moves rearward, the LKF-114 speed control valve regulates flow rate based on your ground speed. When material reaches the discharge zone, dual hydraulic cylinders open the tailgate, releasing organic matter onto the vertical beaters.

The double vertical shaft system rotates at precisely calibrated speeds. Hardened manganese steel blades pulverize clumps and distribute material in a uniform pattern 8-12 meters wide behind your tractor.

The BM5-200 hydraulic motor maintains consistent beater speed regardless of material density. The 12V 90W radiator prevents overheating during extended operation. Front T310 and rear FC212 bearings ensure smooth rotation under heavy loads.

This closed-loop system automatically adjusts to material moisture content from 40% to 65%, preventing the clumping and bridging issues common in inferior designs.

Technical Specifications

​​​​​​​

Core Advantages for Your Operation

Corrosion-Resistant Construction

The 4mm hot-dip galvanized steel plate construction withstands acidic organic compounds that corrode standard equipment. Your investment maintains structural integrity through years of high-moisture manure exposure.

Precision Distribution Control

The LKF-114 hydraulic speed control valve synchronizes material discharge with tractor speed. You achieve uniform nutrient application whether traveling 3 km/h or 8 km/h across varying terrain.

Reduced Maintenance Downtime

The triple gearbox design isolates mechanical stress from the PTO shaft. Fuhua heavy-duty axles handle rough field conditions without premature bearing failure. You spend more time spreading and less time repairing.

High-Moisture Material Handling

The chain scraper system moves materials up to 65% moisture content without jamming. Conventional belt systems fail in these conditions, but your operation continues without interruption.

Versatile Field Applications

The 400/55-22.5 tires provide excellent flotation on wet soils. You can apply nutrients during narrow weather windows when competitors must wait for drier conditions.

Application Scenarios Across Agricultural Sectors

Large-Scale Broadacre Farming

You manage thousands of hectares requiring rapid organic matter replenishment. The 5m³ capacity and ≥65HP power requirement enable efficient coverage of grain fields, reducing passes and fuel consumption. The spreading width of 8-12 meters matches modern planter widths for precise nutrient placement.

Orchard and Vineyard Management

The 2300mm width allows operation between tree rows without damaging branches or trunks. You deliver targeted under-canopy fertilization while navigating tight turning radii in established plantings. The double vertical shaft system prevents material throw into valuable foliage.

Pasture Renovation and Land Reclamation

Heavy-duty construction handles fibrous materials and wood chip mulches across uneven terrain. You stabilize slopes and prevent erosion while building soil organic matter on marginal land. The Fuhua axle absorbs impacts from rocks and debris that would disable lighter equipment.

Quality Control and Industry Compliance

Yuxing subjects every Organic Fertilizer Spreader to rigorous testing before shipment. The hydraulic system undergoes pressure testing beyond 20MPa operational loads, ensuring reliability during peak-demand periods.

We perform dynamic balance testing on the vertical beater assembly. Unbalanced rotors cause vibration-induced structural failure, so we maintain tolerances within 0.05mm to prevent premature wear.

Paint adhesion testing follows ASTM D3359 standards. The fluorocarbon coating resists peeling when exposed to ammonia and organic acids present in manure applications.

Chain tensile strength testing verifies the floor conveyor handles maximum loads. We apply 150% rated capacity to identify weak links before they reach your operation.

Field distribution uniformity testing validates spreading patterns. We position collection trays across the discharge width, analyzing material distribution to confirm Coefficient of Variation below 15%.

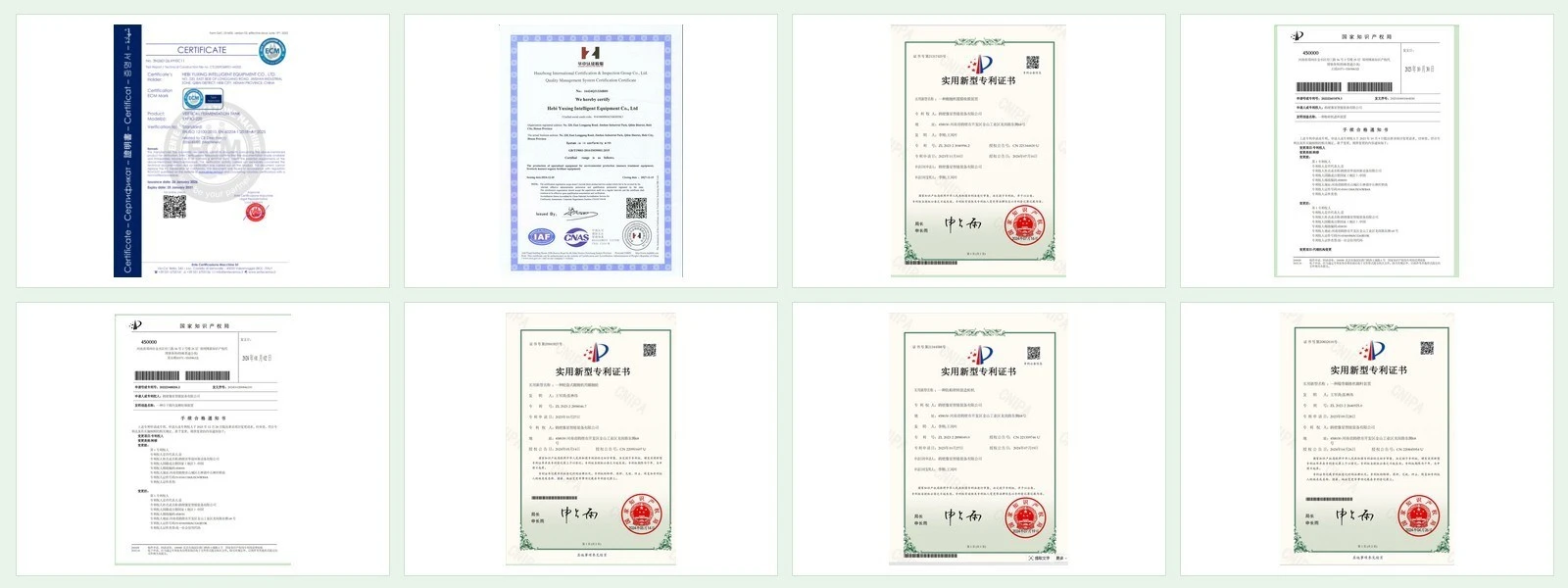

All units meet ISO 4254-1 safety standards and carry CE certification for international markets. You receive complete documentation verifying compliance with your regional agricultural equipment regulations.

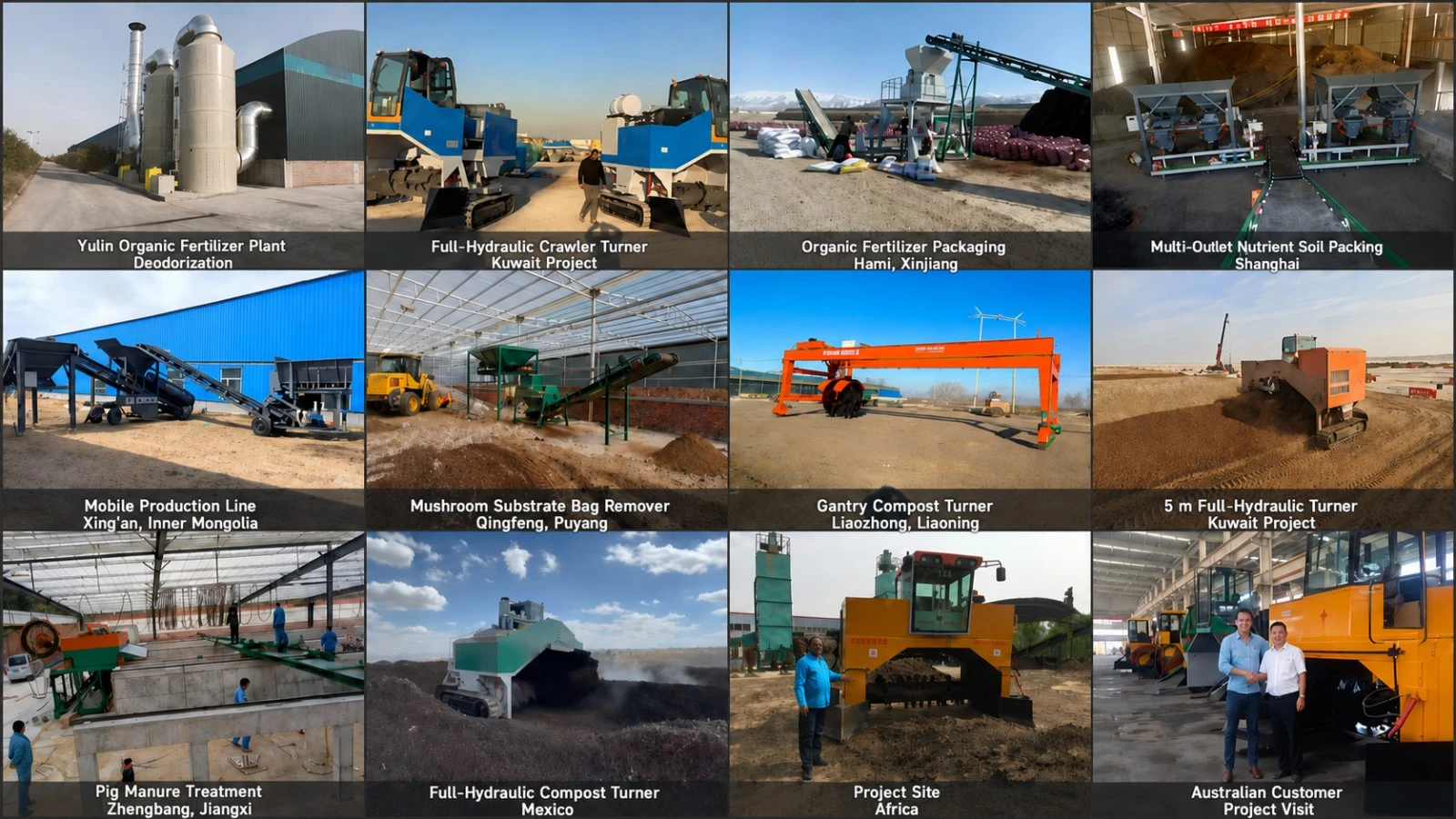

Global Service and Customization Capabilities

Your operation may require specific adaptations for regional conditions. Yuxing provides comprehensive customization including voltage conversion for 380V, 415V, or 480V electrical systems.

We integrate Siemens or Schneider components based on your maintenance infrastructure. PLC control systems with multi-language HMI interfaces ensure your operators work in their native language.

The modular design allows container optimization for international shipping. We've shipped to over 50 countries, managing 40GP container loading, open-top oversized transport, and specialized logistics for remote locations.

Installation support includes factory planning consultation, on-site commissioning, and operator training. Our technical team provides remote video guidance and 24/7 troubleshooting support throughout your equipment lifecycle.

Spare parts availability is guaranteed. Critical wear components—beater teeth and conveyor chains—ship within 72 hours to minimize downtime during peak seasons.

FAQ

Q: How does the machine handle high-moisture manure above 60%?

A: The high-torque vertical beaters combined with adjustable hydraulic gates prevent clumping. The BM5-200 hydraulic motor maintains consistent speed, ensuring fine shredding before discharge even with materials at 65% moisture content.

Q: What maintenance prevents corrosion damage?

A: Daily high-pressure washing removes acidic residue. Apply acid-resistant grease to the PTO shaft and floor chains after each use. The hot-dip galvanized construction provides baseline protection, but regular lubrication extends component life to 800-1,000 operational hours.

Q: Can I integrate this with precision agriculture systems?

A: Yes, our advanced models support ISOBUS compatibility. You can implement real-time application mapping and automated flow control, integrating seamlessly with existing GPS and VRT systems for variable-rate organic applications.

Q: What are the most common replacement parts?

A: Beater teeth and floor conveyor chains experience the highest wear. Our heat-treated boron steel components last 800-1,000 hours under normal conditions. We recommend keeping one set of beater teeth and two chain links in inventory.

Q: How do you ensure road transport safety?

A: The dual hydraulic cylinder door includes mechanical transport locks preventing accidental discharge. The Fuhua axle features dual-line hydraulic braking compatible with tractor brake systems. Reflective markers and lighting connections meet highway safety standards.

Contact Us

Ready to transform your organic nutrient management with Organic Fertilizer Spreader? Yuxing delivers complete solutions from equipment selection through installation and training.

Email our technical team at yuxing@hnyxmachinery.com today.
