Farm Manure Spreader - Professional Agricultural Nutrient Distribution Solution

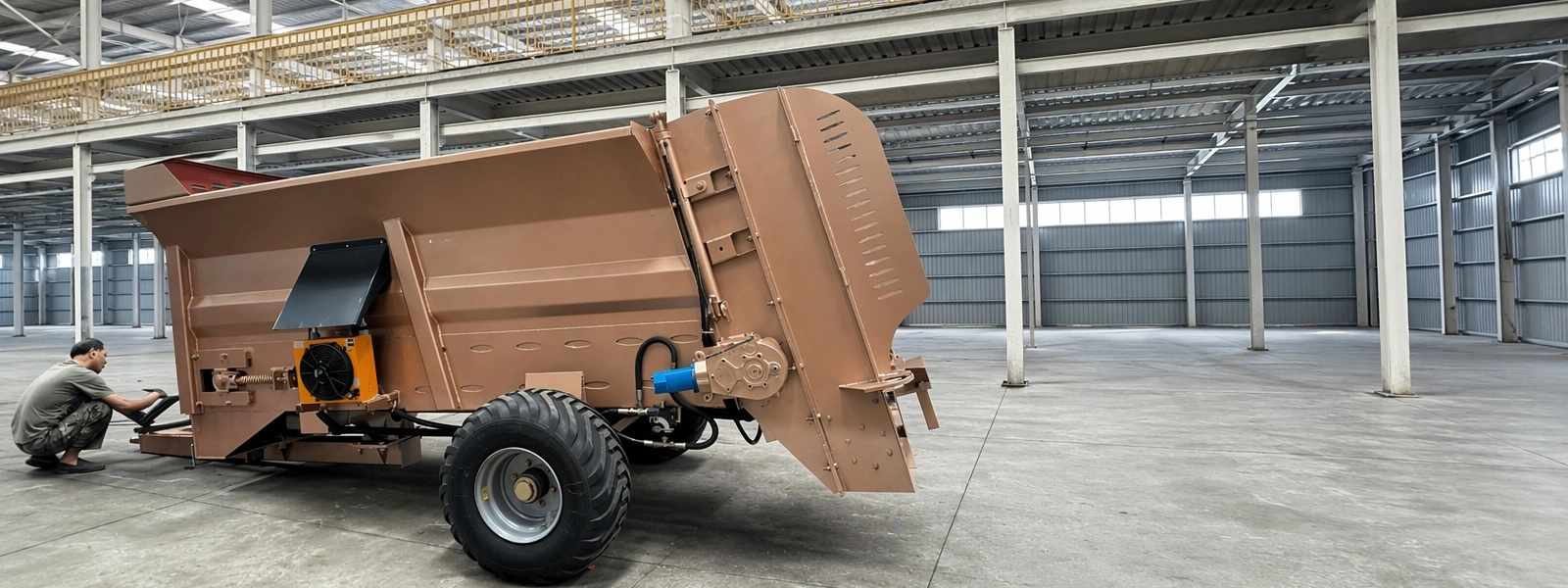

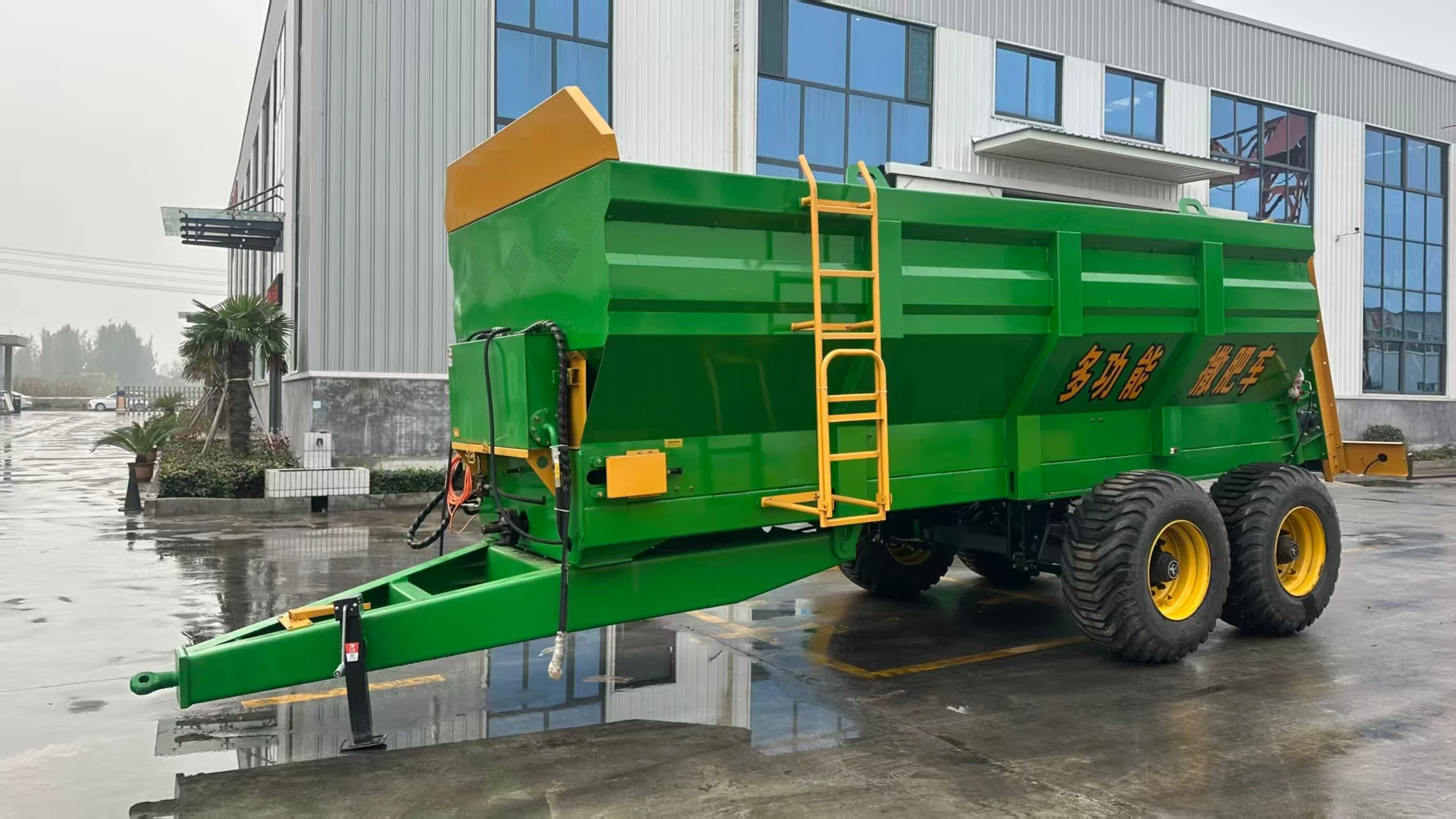

The YXSF-LZQY-10 Farm Manure Spreader, designed for large-scale livestock and agricultural operations, is the product of Henan Yuxing Intelligent Equipment Co., Ltd.'s 20 years of experience in fertiliser machinery. The BM5-200 vertical-axle traction spreader has a 10m³ capacity and a heavy-duty triple gearbox system and hydraulic motor for continuous material flow in challenging field situations. Featuring 5mm steel plates and 445 vacuum steel wire tires (1130mm diameter), this tractor matches 100HP tractors and weighs 3,800kg for stability during high-volume spreading. The machine's chain scraper push mechanism and LKF-114 speed control valve apply nutrients uniformly, decreasing field labour by 60% compared to manual techniques and optimising soil fertility and compliance.

What Is a Farm Manure Spreader and Why Your Operation Needs It

Product is an agricultural tool that automates the direct application of organic fertilizers—from solid animal waste to semi-solid compost—to farmland. This technology eliminates production gaps caused by unequal fertiliser delivery, high manual labour costs, and environmental dangers from incorrect waste management for modern farmers.

Agronomically, recycling biomass into soil improves nitrogen, phosphorus, and potassium levels. This increases crop yield and assures nutrient management plan compliance. Your team can precision-spread acres in hours instead of days.

Vertical shaft throwing is used in the YXSF-LZQY-10. The mechanism splits material into fine particles during discharge, providing a broad, even pattern that integrates nutrients deep into the soil surface. This method turns trash into fertile assets for dairy, poultry, and mixed animal operations.

How It Works: The Engineering Behind Uniform Nutrient Distribution

Understanding the operational principle helps you maximize field efficiency and equipment lifespan. The product employs a three-stage process: loading, conveyance, and dispersion.

Stage 1: Loading and Containment

The 10m³ hopper (4500mm length × 2100mm top width) holds your organic material. The 5mm-thick steel floor and sides resist corrosion from ammonia and organic acids. Dual 445 vacuum steel wire tires (1130mm diameter) provide flotation, minimizing soil compaction even when fully loaded.

Stage 2: Hydraulic Chain Conveyance

As your tractor's PTO drives the triple gearbox, the mining-grade three-row chain and scraper bars push material toward the rear discharge zone. The LKF-114 G3/4 speed control valve regulates flow rate, allowing you to adjust application density based on crop requirements or soil test results. This hydraulic system eliminates the 'bridging' and 'slug' issues common in fixed-speed conveyors.

Stage 3: Vertical Shaft Dispersion

At the rear, the BM5-200 hydraulic motor powers a vertical beater shaft. High-torque rotation shreds and throws material outward in a controlled fan pattern. This vertical action produces finer particle sizes than horizontal augers, ensuring fertilizer integrates with topsoil rather than sitting on the surface. You achieve spread widths up to 15 meters, reducing overlap passes and fuel consumption.

The Fuhua axle and front T312/rear FC215 bearings handle shock loads during field transitions. A 90L fuel tank supports extended operation without frequent refills. This integrated design delivers consistent, repeatable performance across varying material moisture levels and field topographies.

Technical Specifications

Key Applications Across Diverse Agricultural Environments

Your Farm Manure Spreader adapts to multiple livestock and crop scenarios, each with distinct operational demands.

Large-Scale Dairy Operations

High-volume producers face daily slurry management from hundreds or thousands of head. The 10m³ hopper capacity reduces reload cycles, while the vertical beater system handles wet, heavy material without clogging. You can apply nutrients directly to silage corn or forage fields, synchronizing fertility inputs with planting windows and minimizing odor complaints through rapid incorporation.

Commercial Poultry Facilities

Dry litter from broiler or layer houses contains concentrated nitrogen. The chain scraper push system meters this fine material evenly, preventing 'hot spots' that can burn seedlings or grass. Adjusting the speed control valve lets you match application rates to soil test recommendations, protecting crop health and reducing input waste.

Pasture and Grazing Land Improvement

Uneven terrain challenges conventional spreaders, but the wide wheel track (outer 2770mm) and Fuhua axle stability keep your machine level on slopes. Spreading composted manure over pasture boosts forage yield and extends grazing seasons. The vertical throw pattern reaches swales and ridges uniformly, improving nutrient cycling across complex topographies.

Organic Farming and Certification Compliance

Organic systems rely on biological nutrient sources. Your spreader's precise flow control documents application rates required for certification audits. The absence of synthetic coatings on materials ensures compatibility with organic standards, while lifetime technical support from Yuxing helps you optimize composting and spreading protocols.

Quality Control and Certification Standards

Yuxing's 20+ years of production expertise translate into rigorous quality assurance at every manufacturing stage. Each products undergoes multi-point inspections aligned with ISO 4254-1 safety standards and ASABE S324.1 volumetric capacity ratings.

Structural Integrity Verification

Ultrasonic weld testing on the chassis and hitch connections ensures long-term durability under maximum load conditions. Dye penetrant examinations identify micro-cracks before assembly, eliminating field failures. The 5mm plate thickness exceeds industry norms, providing corrosion resistance margins for acidic organic materials.

Gearbox and Drivetrain Stress Testing

Triple gearbox assemblies are torque-tested to simulate 'slug' loads from frozen or compacted manure. Shear bolt ratings are calibrated to protect the PTO shaft during sudden blockages, preventing costly tractor damage. Fuhua axles undergo dynamic load testing at 150% of rated capacity, confirming reliability across uneven terrain.

Spread Pattern Uniformity Analysis

Pan tests measure the Coefficient of Variation (CV) in material distribution across the spread width. Yuxing's vertical beater design achieves CV values below 15%, meeting agronomic precision requirements. This uniformity reduces fertilizer waste and ensures consistent crop response across your fields.

Corrosion Resistance Validation

Salt spray testing on paint and coating systems simulates years of ammonia exposure. Components pass 500-hour exposure cycles without rust penetration, confirming extended service life in harsh livestock environments. Chain lubrication systems are validated for acid-resistant oil retention, preventing 'frozen' links during operation.

All units receive CE and ISO certification documentation, supporting global export and compliance with regional agricultural machinery regulations. Yuxing's in-house testing facility and stable supply chain deliver consistent quality across every production batch.

Why Choose Yuxing's Farm Manure Spreader

Proven Global Expertise

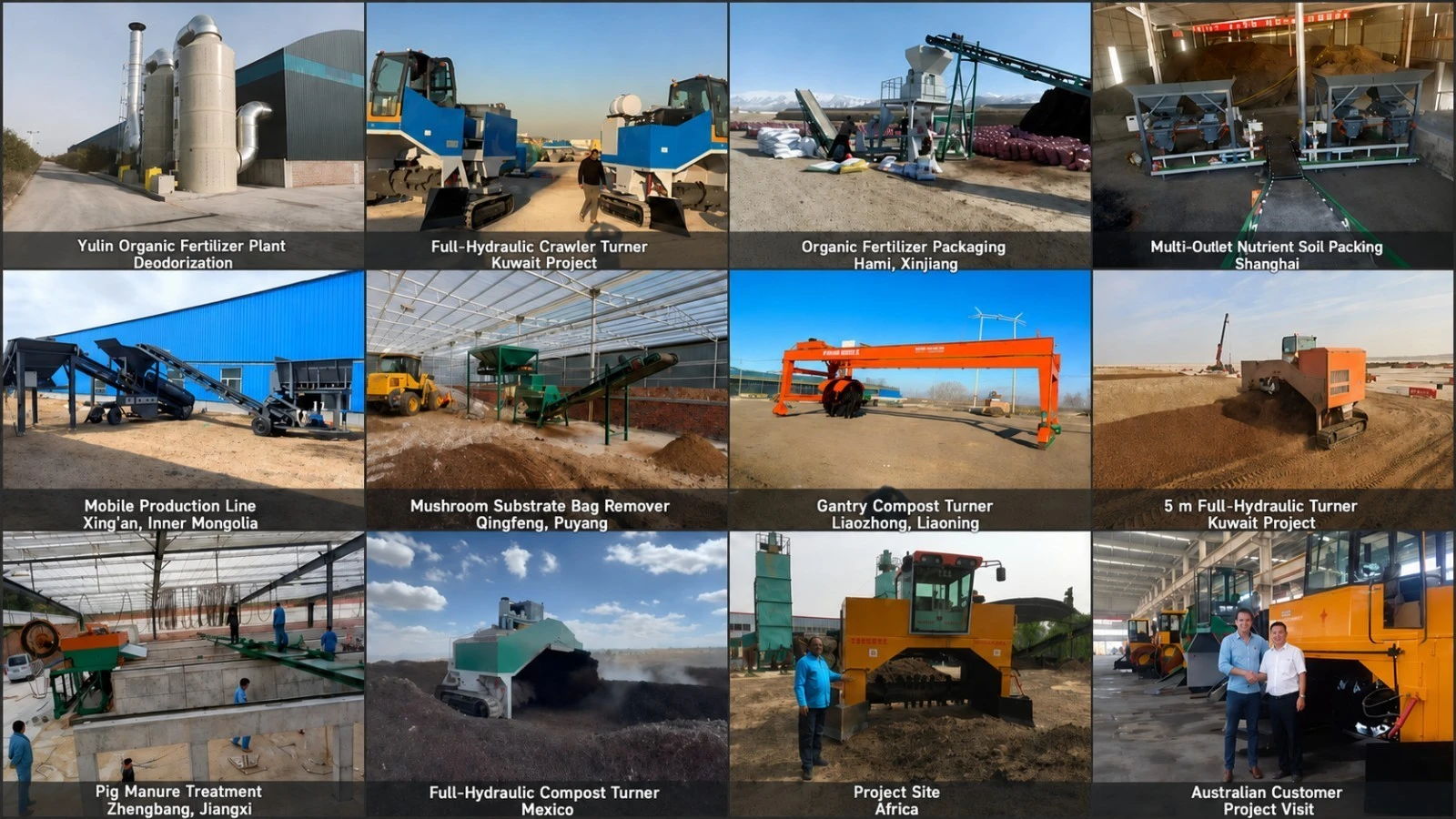

With machinery exported to 50+ countries and thousands of satisfied customers, Yuxing understands diverse agricultural conditions. Our spreaders operate reliably from the humid tropics to temperate zones with freeze-thaw cycles. This global experience informs design refinements that address your specific climate and crop challenges.

Comprehensive Customization Capabilities

We adapt voltage standards (230V/400V/480V), install Siemens or Schneider control components, and provide multi-language HMI interfaces. OEM branding and private labeling support your market positioning. Whether you need CE compliance for Europe or specific tire configurations for sandy soils, our engineering team delivers tailored solutions within 15–20 day production cycles.

Turnkey Support and Lifetime Service

Beyond equipment delivery, Yuxing provides factory planning assistance, operator training, and remote troubleshooting. Our 24/7 technical response ensures minimal downtime during critical spreading windows. Spare parts inventory and maintenance protocols are designed for long-term, low-cost operation. You receive production optimization guidance as your operation scales, including capacity upgrades and process improvements.

Integrated Fertilizer Production Solutions

As a complete organic waste treatment provider, Yuxing offers complementary equipment—compost turners, separators, mixers, and granulators—allowing you to build a full nutrient management system. Strategic partnerships with microbial innovation leaders deliver fermentation agents and technical support, transforming your waste stream into premium organic fertilizer products for resale or internal use.

Fast Delivery and Strong Production Capacity

Standard models ship immediately from inventory. Customized units complete within 15–20 days, significantly shortening project timelines. Mature manufacturing systems and stable supply chains eliminate delays, helping you capture seasonal application windows and accelerate return on investment.

FAQ

Q: How does the spreader handle frozen or high-moisture material?

A: The BM5-200 hydraulic motor delivers high torque to the vertical beater, shredding frozen chunks and processing wet material without clogging. The mining-grade three-row chain maintains tension under variable loads, ensuring consistent conveyance regardless of material condition.

Q: What maintenance is required for the floor chain system?

A: Daily lubrication with acid-resistant oil and regular tension checks are essential. After each use, wash down the chain and scraper bars to prevent corrosion and 'frozen' links. Yuxing provides detailed maintenance schedules and training videos during commissioning.

Q: Can I calibrate the spreader for specific nitrogen requirements?

A: Yes. Conduct pan tests by spreading material over a measured area, then weigh the collected samples. Adjust the LKF-114 speed control valve and ground speed to match your target tons-per-acre based on soil test recommendations. Yuxing's technical team assists with calibration protocols.

Q: Is the machine compatible with compost or lime application?

A: The vertical beater system handles composted materials effectively. For lime or other fine, dense products, consult Yuxing about spinner attachment options or flow gate modifications. We customize configurations to match your diverse spreading needs.

Q: What PTO speed does the spreader require?

A: The triple gearbox is designed for standard 540 RPM PTO operation. Ensure your tractor is rated at or above 100 HP for optimal hydraulic motor performance and to handle the 3,800kg machine weight plus 10m³ load capacity.

Q: How do I prevent soil compaction during field operations?

A: The dual 445 vacuum steel wire tires (1130mm diameter) provide excellent flotation. Operate when soil moisture is below field capacity, and consider tire pressure adjustments based on load and soil type. Yuxing can recommend tire upgrades for specific soil conditions.
