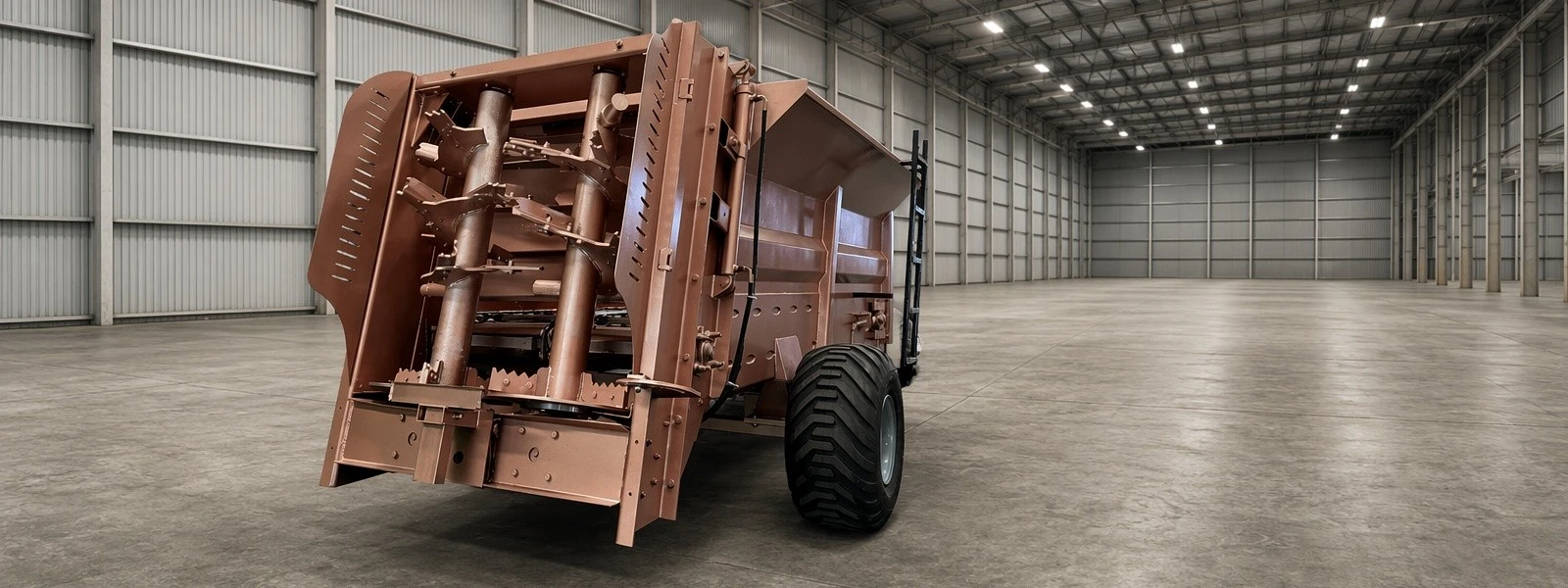

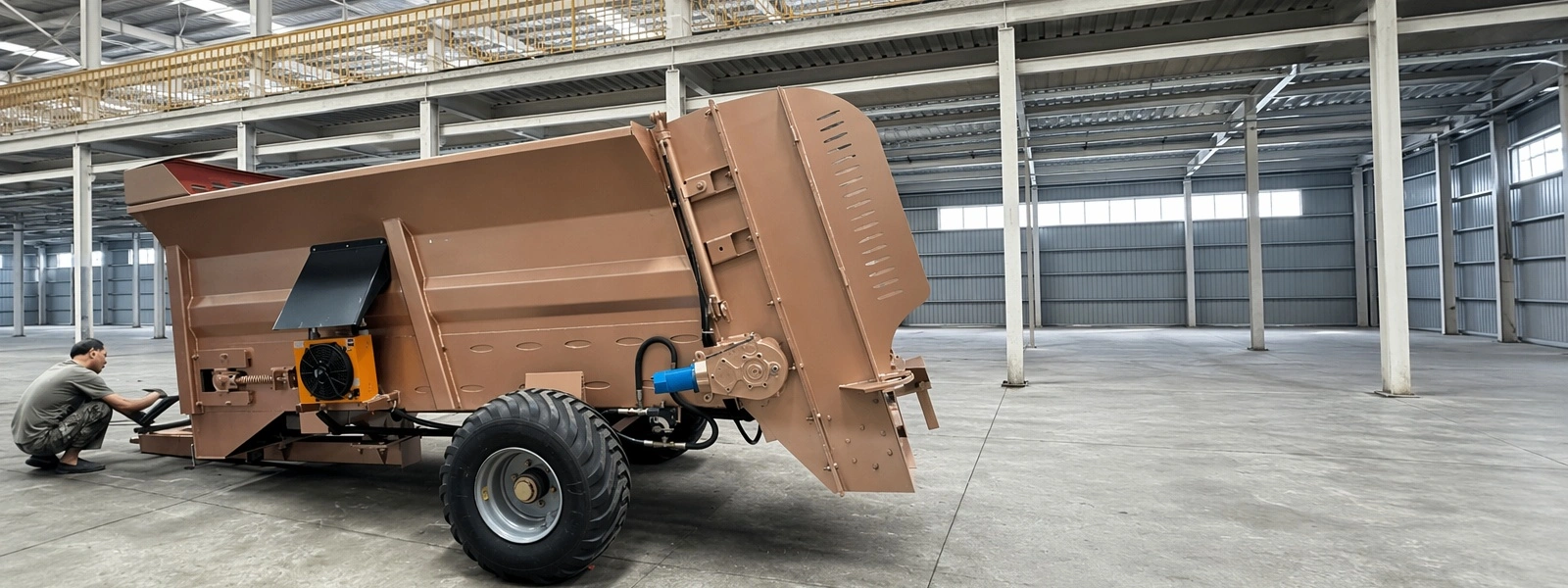

Compost Manure Spreader

Vertical Axle Traction Compost Manure Spreader – 30m³ High-Capacity Field Application Solution

The YXSF-LZQY-30 Compost Manure Spreader from Henan Yuxing Intelligent Equipment is designed for the delivery of organic fertiliser on a commercial basis. This tractor-mounted spreader can handle high-moisture, fibrous livestock manure, and composted materials on large farms with a 30m³ hopper capacity and 120m³/h production rate. With two Fuhua axles and a mining-grade four-row chain scraper system, the equipment distributes nutrients uniformly and reduces manual labour by 70%. A vertical shaft throwing mechanism and chain plate push conveyor achieve exact application rates, minimising over-fertilization hot areas and enabling current soil health compliance. This spreader is a turnkey solution for effective organic soil amendment, backed by Yuxing's 20 years of fertiliser equipment competence and delivered to 50+ countries.

What Is a Compost Manure Spreader?

A product is agricultural technology that evenly distributes organic fertilisers over field surfaces. It handles high-moisture, bulky, and fibrous materials like cattle manure, composted waste, and bio-solids, unlike broadcast spreaders.

This equipment addresses three major industrial issues. This avoids crop burn from unequal fertiliser delivery. Second, it cuts labour and operation time significantly compared to manual approaches. Third, it allows per-hectare nutrient delivery that meets environmental and soil health criteria.

Yuxing's vertical axle guarantees a broad, steady throw. In sticky or clumped compost, the hydraulic-driven chain system minimises bridging.

How It Works: Vertical Shaft Throwing Technology

The YXSF-LZQY-30 operates through a synchronized four-stage process that guarantees uniform field coverage.

Stage 1: Material Loading & Retention

The 30m³ hopper accepts bulk organic matter. Internal chain scrapers prevent settling and ensure consistent flow toward the discharge zone.

Stage 2: Hydraulic Chain Conveying

A chain plate push system, powered by a BM5-200 hydraulic motor, moves material from the front hopper to the vertical shaft spreader at the rear. The LKF-114 speed control valve adjusts conveyor speed to match tractor forward velocity.

Stage 3: Vertical Shaft Shredding & Dispersion

Material exits onto vertical rotating beaters spinning at 540rpm. These beaters shred fibrous clumps and project compost in a wide, fan-shaped pattern ranging 6 to 12 meters laterally.

Stage 4: Field Deposition & Soil Integration

The thrown material settles evenly across the field surface. You can fine-tune application rates by adjusting tractor speed, chain velocity, and rear gate height.

This closed-loop system ensures a spreading coefficient of variation (CV) below 15%, meeting precision agriculture benchmarks.

Technical Specifications

Key Applications Across Demanding Environments

Large-Scale Cereal and Row Crop Operations

Your 300HP tractor can pull this spreader across thousands of acres during post-harvest or pre-planting phases. It restores soil organic matter rapidly, reducing the need for synthetic fertilizers.

Intensive Viticulture and Orchard Management

While this model is designed for open fields, Yuxing offers narrow-body variants for tight vineyard rows. These units deliver targeted side-discharge directly to root zones of high-value fruit crops.

Land Reclamation and Industrial Site Remediation

On former mining sites or degraded land, this spreader applies thick compost layers to stabilize topsoil and prevent erosion. The dual-axle design and high-flotation tires maintain stability on uneven or steep terrain.

Livestock Farm Waste Management

Dairy, poultry, and swine operations generate massive volumes of manure. This Compost Manure Spreader enables you to close the nutrient loop by returning processed waste to cropland, cutting disposal costs and improving farm sustainability.

Core Advantages: Why Yuxing Leads the Market

1. Proven 20-Year Track Record

Yuxing has delivered fertilizer equipment to 50+ countries. Our continuous R&D, rooted in real field conditions, ensures each machine meets industrial-grade reliability standards.

2. Superior Material Handling

The four-row mining chain and manganese steel scraper bars resist abrasion from acidic organic matter. Hot-dip galvanized chassis prevents corrosion, extending service life beyond 15 years.

3. Precision Application Control

The LKF-114 hydraulic valve and BM5-200 motor allow stepless speed adjustment. You achieve exact application rates, critical for meeting agronomic plans and environmental permits.

4. Rapid Customization & Delivery

Standard units ship immediately. Custom configurations—such as CE compliance, Siemens PLC integration, or alternative voltage—are delivered in 15–20 days. Yuxing's in-house production eliminates outsourcing delays.

5. Global Logistics Expertise

Our team handles 40GP container optimization, open-top transport for oversized equipment, and modular disassembly. You receive your spreader safely, on time, and ready for assembly.

6. Lifetime Technical Support

From factory layout design to remote video troubleshooting, Yuxing provides 7x24 assistance. We train your operators, supply spare parts globally, and offer production optimization consultations.

Quality Control: Industrial-Grade Standards

Every products leaving Yuxing's facility undergoes rigorous multi-stage inspection.

Dynamic Balancing of Vertical Beaters

We test rotors at full 540rpm to eliminate vibration-induced fatigue. This prevents mid-field breakdowns and extends bearing life.

Hydraulic Pressure Testing

The floor-drive system is tested under maximum load conditions. We simulate continuous operation to verify seal integrity and motor performance.

Coating Thickness Measurement

Our galvanization layer exceeds 80 microns. Paint adhesion tests ensure the protective coating withstands high-moisture, acidic manure exposure.

Spreading Pattern Coefficient of Variation (CV)

We conduct tray tests to verify lateral distribution uniformity. Only units with CV below 15% are approved for shipment, meeting precision agriculture standards.

All equipment complies with ISO 9001 manufacturing protocols and CE safety certifications. You receive third-party test reports with every order.

​​​​​​​

FAQ

Q: How does the spreader handle high-moisture material without clogging?

A: The aggressive chain scraper and hydraulic floor system prevent bridging. Variable-speed control ensures a steady feed rate, even with wet, sticky manure.

Q: What is the advantage of vertical beaters over horizontal ones?

A: Vertical beaters provide a wider, more uniform throw pattern. They excel at shredding long-straw manure and fibrous compost, ideal for large-scale field application.

Q: How can I adjust the application rate accurately?

A: You control rates by modulating tractor forward speed, hydraulic floor speed, and rear gate height. For advanced operations, Yuxing offers load cell integration for real-time weight monitoring.

Q: What maintenance is required to prevent corrosion?

A: After each use, wash down the hopper and apply anti-corrosion grease to drive chains and sprockets. Our hot-dip galvanized chassis minimizes routine maintenance.

Q: Are these machines compatible with GPS and variable rate technology?

A: Yes. Premium models support ISOBUS-compatible controllers and load cells for automated, site-specific nutrient application. Contact us for precision agriculture upgrades.
