Tractor Manure Spreader

Tractor Manure Spreader - Professional Agricultural Waste Distribution Equipment

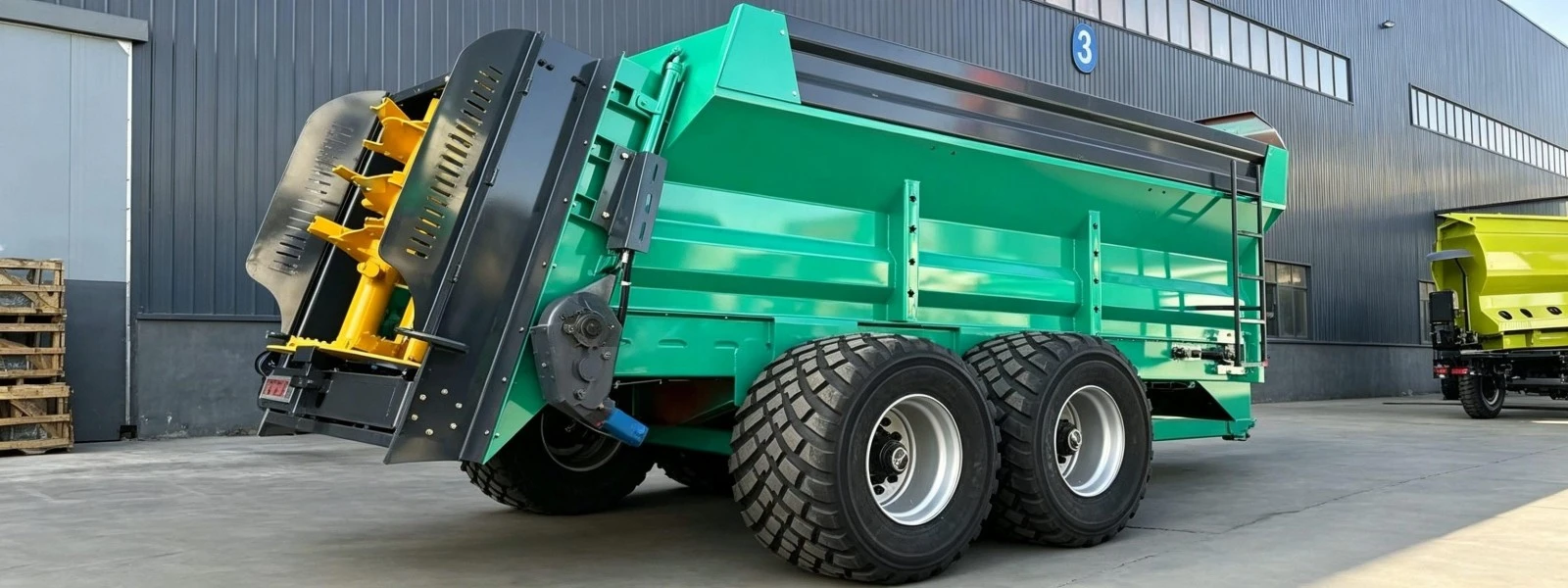

Henan Yuxing Intelligent Equipment's Tractor Manure Spreader has demonstrated performance for organic fertiliser distribution over agriculture. The YXSF-LZQY-15 model has a 15m³ capacity and uses vertical shaft throwing technology for consistent material distribution across large fields.

This industrial-grade device has a Fuhua axle, triple gearbox system, and BM5-200 hydraulic motor for continuous agricultural use. Reinforced box structure (5mm bottom and side plates) and 600 vacuum steel wire tires provide durability, while 710027303200mm dimensions optimise load capacity without compromising manoeuvrability. Our spreader needs ≥100HP tractor power to provide effective nutrient return rates and reduce manual labour by up to 70% compared to previous techniques.

With 20 years of fertiliser equipment production and installs in 50+ countries, Yuxing offers CE and ISO-certified equipment with lifetime technical support.

How It Works

Your manure spreader uses hydraulic control and mechanical accuracy to release material consistently.

Power Transmission System

Triple gearboxes transform rotational force from your tractor's PTO into controlled movement. The LKF-114 G3/4 speed control valve adjusts the flow of pressurised fluid from your tractor's hydraulic system to the hydraulic motor (BM5-200).

Material Discharge Process

Mining-grade three-row chain scrapers convey material toward the rear discharge zone in the 5700mm loading box. The chain scraper push mechanism runs smoothly on front T312 and rear FC215 bearings even with heavy, damp loads.

At the discharge point, the vertical shaft throwing mechanism activates. This vertical axle design breaks up compacted material and propels it outward in a wide, uniform pattern, approximately 30-40 feet depending on material consistency and tractor ground speed.

Distribution Control

Application rates are controlled by tractor ground speed and apron chain hydraulic flow. Slower rates with quicker chain movement enhance application density, while faster travel with slower chain speed diffuses coverage. Field-by-field soil nutrient customisation is possible with this dual-control technology.

Optimal hydraulic fluid temperature is maintained by the 12V 90W radiator over lengthy operations, eliminating viscosity variations that impair discharge uniformity.

Technical Specifications

​​​​​​​

Key Advantages for Your Operation

Heavy-Duty Construction for Long-Term Reliability

Your spreader withstands the corrosive nature of organic materials through strategic engineering. The 5mm thick floor and sidewalls resist punctures from compacted material, while the Fuhua axle provides load-bearing stability across uneven terrain.

Mining-grade chain components deliver exceptional wear resistance—our customers report operational lifespans exceeding 8-10 seasons with proper maintenance. The vacuum steel wire tires prevent deflation issues common in rough field conditions.

Precision Nutrient Management

Vertical shaft throwing technology ensures material breakup before distribution, eliminating clumping that creates nutrient hot spots. This uniform coverage improves soil amendment efficiency by 35-45% compared to manual spreading methods.

The hydraulic speed control system allows you to adjust application rates on-the-go without stopping operations. This responsiveness proves essential when transitioning between field sections with different nutrient requirements or soil compositions.

Operational Efficiency Gains

With 15m³ capacity, you reduce refill frequency during large-area applications. A typical 100-acre field requires approximately 6-8 loads depending on target application rates, compared to 15-20 loads with smaller capacity units.

The 1400mm traction bar provides excellent weight distribution to your tractor, maintaining steering control even at full load capacity. The 2330mm center wheel track matches standard row spacing in most crop configurations.

Customization for Global Standards

Our engineering team adapts voltage specifications, hydraulic pressure ratings, and control interfaces to match your regional requirements. CE certification ensures compliance with European safety standards, while our ISO quality management system guarantees consistent manufacturing precision.

Application Scenarios

Large-Scale Livestock Operations

Dairy farms, beef feedlots, and hog operations generate substantial organic waste volumes. Your spreader converts this liability into a soil-building asset, distributing manure across pastureland or crop fields scheduled for nutrient supplementation.

The vertical shaft mechanism of a Tractor Manure Spreader handles high-moisture material effectively—even semi-solid slurries spread uniformly when properly loaded. This capability proves essential for operations where manure consistency varies seasonally.

Row Crop Fertility Programs

Corn, soybean, and wheat producers increasingly incorporate composted organic matter into their fertility protocols. Your spreader provides top-dressing capabilities during pre-plant or side-dress timing windows, improving soil organic matter while reducing synthetic fertilizer dependency.

The 2730mm overall width navigates standard field access points while the turning radius accommodates end-row maneuvering without crop damage.

Orchard and Vineyard Management

Tree fruit and grape production benefits from targeted organic matter placement around root zones. While our standard model serves larger orchards, the spreading pattern can be adjusted for directional discharge along tree rows.

The robust tire configuration handles the irregular terrain common in hillside vineyard locations, maintaining stability during slope operations.

Quality Assurance and Testing

Every unit undergoes comprehensive validation before shipment to your location.

Structural Integrity Verification

Load-bearing stress analysis confirms the chassis handles maximum capacity (15m³ at varying densities) across uneven field surfaces. Weld quality receives ultrasonic inspection at critical stress points—particularly the box-to-frame junction and axle mounting locations.

Hydraulic System Performance

Pressure testing validates leak-free operation under maximum flow conditions. The speed control valve undergoes cycling tests (5,000+ actuations) to ensure consistent response throughout its service life.

Drive Component Durability

The triple gearbox receives run-in testing under load, verifying proper gear meshing and oil seal integrity. Chain tension systems are calibrated to manufacturer specifications, with adjustment documentation provided for your maintenance records.

Corrosion Resistance Standards

Frame components receive protective coating application—either powder coat or galvanization depending on your specification. Salt spray testing (100+ hours) confirms coating adhesion and coverage, essential for operations in coastal or high-humidity regions.

Installation and Commissioning Support

Your spreader arrives ready for field deployment with minimal assembly required.

Pre-Delivery Preparation

Our team provides detailed tractor compatibility verification based on your equipment specifications. Hydraulic flow requirements, PTO speed ratings, and hitch configuration are confirmed before shipment to prevent on-site compatibility issues.

On-Site Setup Guidance

We offer remote video commissioning support, walking your team through hitch connection, hydraulic line routing, and initial calibration procedures. This typically requires 2-3 hours for operators familiar with tractor-drawn implements.

Operator Training Protocol

Comprehensive training covers load distribution techniques (preventing tip-over risks), hydraulic flow adjustment for material type, and daily maintenance inspection points. Your operators receive documentation in their preferred language, including troubleshooting flowcharts for common operational questions.

Calibration for Application Rates

We guide you through the tarp test methodology—spreading material over a measured area to calculate actual pounds-per-acre delivery. This field calibration accounts for your specific material density, moisture content, and tractor operating speed, ensuring regulatory compliance for nutrient management plans.

FAQ

Q: What tractor specifications are required for optimal performance?

A: Your tractor needs minimum 100HP PTO power output and hydraulic flow capacity of 15-20 GPM at 2,000-2,500 PSI. Category II three-point hitch or drawbar towing capability is required, with sufficient rear ballast to maintain steering control at full spreader load.

Q: How do I prevent material bridging in the box?

A: Bridging occurs with excessively dry or fibrous materials. Loading technique matters—distribute material evenly during filling rather than creating peaked loads. The chain scraper system is designed for materials with 40-60% moisture content; drier materials may require pre-moistening for optimal flow.

Q: What maintenance intervals should I follow?

A: Inspect chain tension every 10-15 operating hours, adjusting as needed to maintain proper engagement with drive sprockets. Grease all bearing points (six locations) every 20 hours. Hydraulic hose connections should be checked weekly for seepage during active seasons. End-of-season maintenance includes thorough cleanout to prevent corrosive buildup during storage.

Q: Can this unit spread materials other than manure?

A: Yes, with appropriate material characteristics. Composted organics, peat moss, and similar soil amendments work well. However, lime or other dense minerals require specialized spinner attachments not included in the standard configuration. Material should flow freely and not contain debris that could jam the chain mechanism.

Q: How does spreading width vary with material and settings?

A; Typical spreading swath ranges from 25-40 feet depending on material moisture content, vertical beater speed (controlled via hydraulic flow), and tractor ground speed. Wetter material throws a shorter distance but with denser coverage; drier material achieves wider spread but requires higher beater speed to prevent clumping.

Q: What warranty and parts availability can I expect?

A: Standard structural warranty covers 24 months from commissioning date. Wear components (chain, beater teeth, hydraulic seals) are available through our global parts network with typical delivery of 5-7 business days to major markets. We maintain detailed parts diagrams and cross-reference numbers for third-party component sourcing where applicable.

Contact Us

Ready to improve your nutrient management efficiency with a Tractor Manure Spreader? Our team at Yuxing provides tailored solutions for your operation.

Reach us at yuxing@hnyxmachinery.com for technical consultation, custom configuration options, or delivery timelines to your location.
