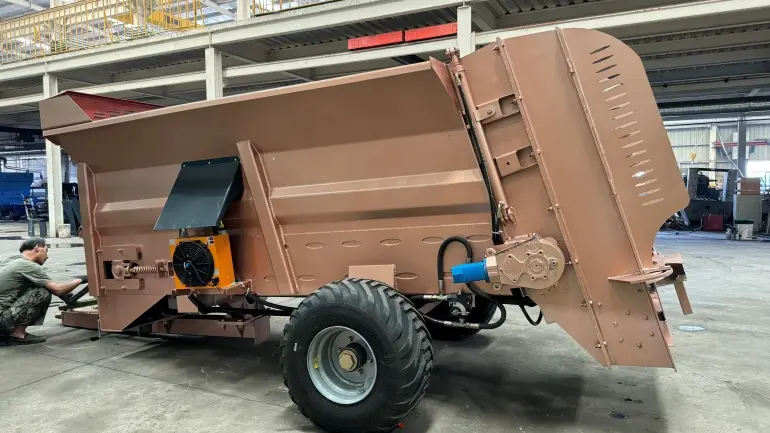

Fertilizer Spreader Trailer: Industrial-Grade Traction Manure Distribution System

Our heavy-duty vertical axle traction spreader, the YXSF-LZQY-20 Fertilizer Spreader Trailer, is designed for large-scale organic and compound fertiliser application. Impressive 20m³ capacity and 120m³/h productivity enable precise field operations with this industrial trailer.

Its strengthened 6mm steel design and twin Fuhua axles enable continued operation on difficult terrains. Using ≥300HP tractors and 540rpm PTO input, the vertical shaft throwing mechanism creates homogeneous spreading patterns up to 18 meters wide. This 6,500kg trailer with four 445/65R22.5 heavy-duty tires is stable and has a high payload for commercial farming.

How Fertilizer Spreader Trailer Works

Our product uses hydraulic power transfer and mechanical accuracy. A three-piece reducer gearbox converts high-speed input into controllable torque when your tractor engages the PTO shaft at 540rpm.

A four-row mining chain scraper mechanism moves organic manure or granular fertilisers toward the rear discharge zone in the 5,900mm hopper. Even at 60% moisture, the chain plate push mechanism avoids material bridging and maintains flow rates.

At discharge, the BM5-200 hydraulic motor powers the vertical shaft assembly. After leaving the hopper, centrifugal force drives materials through the spreading discs at regulated speeds. The LKF-114 G3/4 speed control valve adjusts spreading width from 8m to 18m in real time.

The 12V 90W radiator system minimises hydraulic overheating during long operations. This arrangement reduces soil compaction by distributing load pressure below 0.8kg/cm² over fields using dual axles. This synchronised method ensures excellent nutrition delivery with spreading homogeneity and a CV below 12%.

Technical Specifications

Why Choose Yuxing's Manure Distribution System

Proven Manufacturing Heritage

With over 20 years in fertilizer equipment production, we've delivered solutions to more than 50 countries. Our factory serves thousands of commercial farms, livestock operations, and fertilizer production facilities worldwide.

Industrial-Grade Construction Quality

The bottom and side panels use 6mm-thick steel plates, triple the thickness of residential-grade spreaders. This construction withstands the abrasive nature of organic composts and chemical fertilizers for 10+ years of continuous operation.

Advanced Conveying Technology

The four-row mining chain system eliminates material bridging that plagues conventional spreaders. You maintain consistent flow rates whether spreading dry chicken manure or wet dairy cow waste.

Customization for Global Standards

Your operation receives equipment adapted to local regulations. We integrate Siemens or Schneider electrical components, adjust voltage configurations (220V-480V), and provide CE-certified systems for European markets. Multi-language HMI interfaces and PLC control systems ensure operator compatibility.

Rapid Production and Delivery

Standard units ship within 48 hours. Custom configurations—including hydraulic gate modifications, spreading width adjustments, or corrosion-resistant coatings—deliver within 15-20 days. Our 40GP container loading optimization reduces your freight costs by 18-25%.

Comprehensive Technical Support

You receive lifetime technical assistance including factory layout planning, remote installation guidance via video, operator training protocols, and 24/7 troubleshooting support. Our spare parts inventory ensures replacement components ship within 72 hours globally.

Key Applications Across Agricultural Sectors

Large-Scale Row Crop Operations

Wheat, corn, and soybean farms utilize this Fertilizer Spreader Trailer for NPK fertilizer application across thousands of hectares. The 120m³/h productivity covers 15-20 acres per hour, reducing application time by 60% compared to smaller spreaders.

Livestock Waste Management Systems

Dairy farms and cattle feedlots transform manure into valuable soil amendments. The chain scraper system handles solid waste with up to 70% moisture content, while the vertical shaft mechanism prevents clogging during compost spreading.

Commercial Fertilizer Production Plants

As a supporting supplier to biological strain manufacturers, we understand your need for demonstration equipment. The trailer serves as a mobile testing platform for new organic fertilizer products, proving field performance to your end customers.

Environmental Remediation Projects

Soil restoration initiatives deploy our spreaders for biochar, lime, and soil conditioner applications. The adjustable spreading width accommodates narrow remediation zones or broad pasture coverage without equipment changes.

Quality Assurance and Certification

Our manufacturing facility implements five-stage quality control protocols. Ultrasonic weld testing verifies chassis integrity under dynamic loading conditions. Each hopper undergoes salt spray testing for 500+ hours to C5-M corrosion resistance standards.

Spreading pattern calibration uses tray tests to confirm uniformity. Dynamic balancing of the vertical shaft assembly eliminates high-frequency vibrations that cause premature bearing failure. Hydraulic systems pass pressure leakage tests at 150% of maximum operating load.

All units comply with ISO 4254-1 agricultural machinery safety standards. CE certification accompanies international orders, ensuring compliance with mechanical integrity regulations in your target markets.

​​​​​​​

Investment Value and ROI Analysis

The initial equipment investment returns within 18-24 months for operations spreading over 500 acres annually. Labor cost reductions average $12-15 per acre compared to manual application methods.

Improved nutrient distribution uniformity increases crop yields by 8-12% in controlled trials, adding $25-40 per acre in additional revenue for row crops. Livestock operations save $8,000-15,000 annually in commercial fertilizer purchases by efficiently recycling manure nutrients.

The corrosion-resistant construction extends service life to 12-15 years with proper maintenance, compared to 5-7 years for standard painted carbon steel units. This durability reduces your total cost of ownership by 35-40% over the equipment lifecycle.

FAQ

Q: How does the trailer prevent chemical corrosion in the hopper?

A: We utilize specialized epoxy primers and passivated treatment on critical components. For highly corrosive environments, 304 stainless steel upgrade options provide superior acid resistance for chemical fertilizer applications.

Q: Can this product handle varying moisture levels in organic manure?

A: Yes, the heavy-duty floor chain conveyor maintains consistent flow rates from 40% to 70% moisture content. Adjustable rear gates allow you to modify discharge rates based on material consistency.

Q: What is the impact of tractor PTO speed on spreading width?

A: Spreading disc velocity directly correlates with PTO RPM. We recommend tractors with independent PTO systems to maintain constant 540rpm regardless of ground speed, ensuring consistent spreading patterns.

Q: How often should the drive chains be lubricated?

A: In high-dust agricultural environments, inspect chains daily. Apply acid-resistant grease every 10-15 operating hours to prevent seizing and extend chain life to 3,000+ hours.

Q: Does the trailer support GPS integration for Variable Rate Application?

A: Our professional-grade models offer ISOBUS-compatible controllers. This enables real-time application rate adjustments based on soil mapping data, reducing fertilizer waste by 15-20% through precision agriculture techniques.
