Manure Separator Machine - Professional Solid-Liquid Separation for Modern Farms

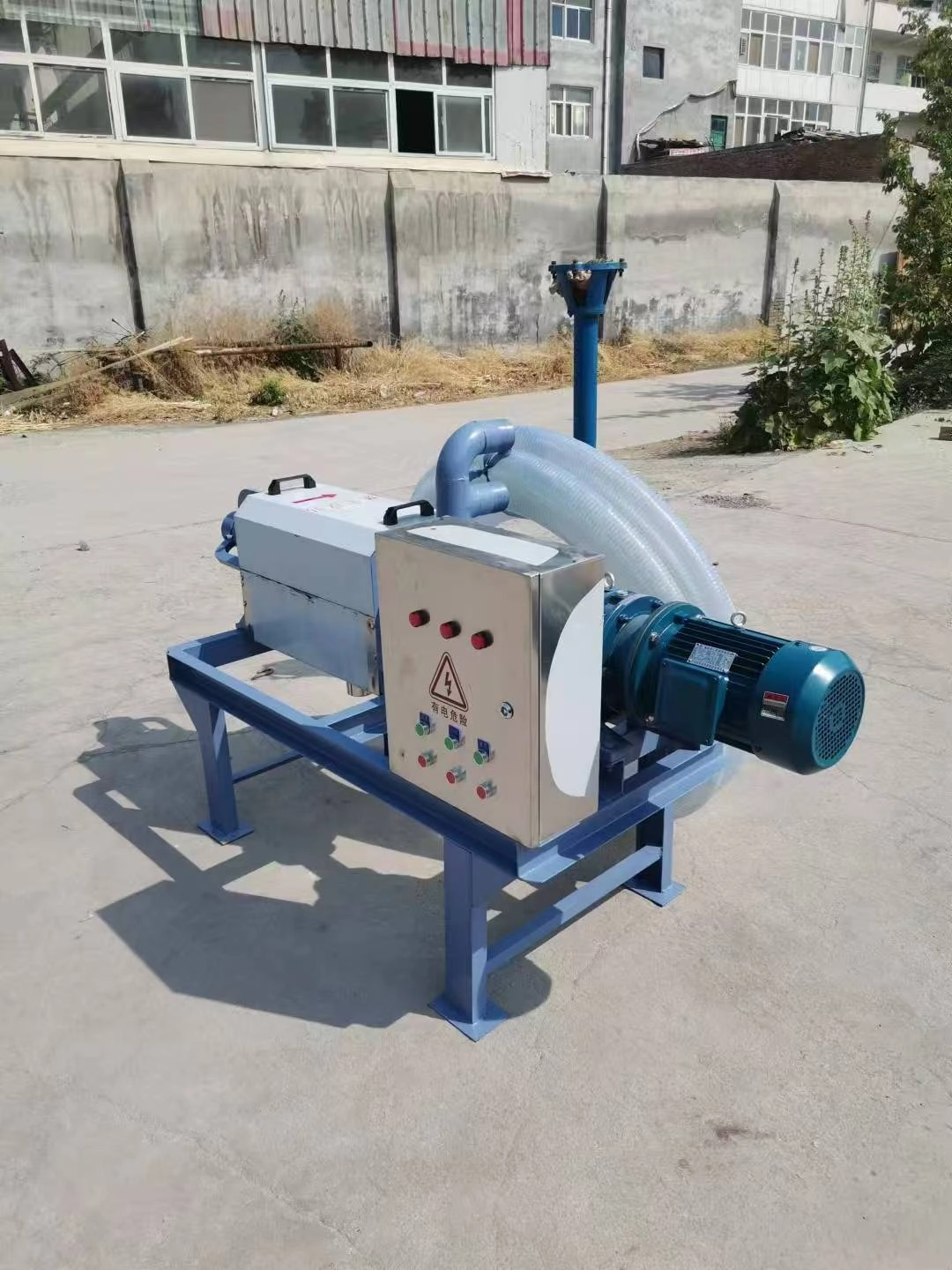

When high-volume livestock operations demand efficient waste management, Yuxing's Manure Separator Machine (Model YXLXFL-180) delivers industrial-grade performance backed by 20+ years of field-proven engineering. This screw-type solid-liquid separator reduces moisture content to 40%-60%, processing 1-3m³/h of cow, pig, or chicken manure slurry with just 4kW main power consumption. Our precision-engineered 8mm-thick screw blades and reinforced screen cylinder system ensure continuous operation in the harshest farm environments.

With equipment exported to 50+ countries and thousands of installations worldwide, Yuxing combines German-standard component quality with rapid 15-20 day custom delivery cycles. Your operation gains not just a separator, but a complete resource recovery solution that transforms waste liabilities into valuable compost feedstock and reusable liquids.

What Is a Manure Separator Machine?

A Manure Separator Machine is an advanced mechanical system that divides raw livestock slurry into two manageable streams: fiber-rich solids and nutrient-concentrated liquids. This separation technology addresses critical operational challenges you face daily.

High-moisture manure is expensive to store and transport. Environmental regulations around nitrogen runoff grow stricter each year. Your facility needs a solution that reduces waste volume while creating marketable byproducts.

Our screw-press design uses controlled mechanical force to extract water from organic matter. The solid fraction becomes stackable, compostable material suitable for bedding or fertilizer production. The liquid phase flows easily through irrigation systems, allowing precision nutrient application to croplands.

This process turns a disposal problem into a revenue opportunity. You save on storage infrastructure while generating products with commercial value.

How the Manure Separator Machine Works?

Understanding the separation process helps you maximize system performance. The operation follows four precise mechanical stages.

Stage 1: Material Feeding

Raw slurry enters through either screw conveyor or submersible pump systems. The feeding method adapts to your facility layout and material viscosity. Pump feeding suits liquid-heavy dairy waste, while screw conveyors handle thicker poultry manure.

Stage 2: Mechanical Extrusion

The rotating screw shaft, spinning at 45rpm, drives material forward into a gradually narrowing chamber. As space decreases, hydraulic pressure builds progressively. This controlled compression forces liquid through the cylindrical screen while retaining solids.

Stage 3: Liquid Filtration

Our precision-engineered screen cylinder features calibrated apertures that release water and dissolved nutrients. The liquid drains into a collection trough below. Screen design prevents clogging even with high-fiber cattle manure.

Stage 4: Solid Discharge

Dewatered solids exit through the discharge chute as semi-dry cakes. Material consistency remains uniform, with moisture content verified within the 40%-60% specification range. This consistency is critical for downstream composting operations.

The entire cycle operates continuously without manual intervention. Your team monitors performance through simple visual inspection of discharge quality.

Technical Specifications

Key Applications for Your Operation

Industrial Dairy Farms

Large-scale milk production generates enormous slurry volumes. Our separator extracts solids to create Recycled Manure Bedding (RMB) that replaces purchased sawdust or sand. You reduce bedding costs by 40-60% while improving stall hygiene.

The system processes fresh flush-lane waste directly. No pre-storage required. Clean liquid fraction flows to lagoon storage or irrigation systems without heavy solids settling.

Biogas Plant Pre-Treatment

Anaerobic digesters require controlled feedstock consistency. Excessive fiber causes crusting and floating layers that reduce gas production. Our machine removes problematic long-fiber materials before digestion.

You achieve 15-25% higher methane yield by eliminating digester maintenance downtime. The pre-screened liquid maintains optimal flow characteristics through pumping systems.

Concentrated Animal Feeding Operations

CAFOs managing 5,000+ head need volume reduction solutions. Separated solids stack for easy transport to composting sites or third-party fertilizer buyers. The liquid concentrates nutrients for precision fertigation.

Your operation gains flexibility in waste placement. Liquids pump economically through long-distance pipelines. Solids ship affordably to regional markets as organic soil amendments.

Core Technical Advantages

Extreme-Duty Construction

All wetted components use corrosion-resistant materials rated for acidic manure chemistry. The 8mm screw blade thickness exceeds industry standards, delivering 8,000-12,000 operating hours before replacement.

Energy-Efficient Operation

Only 4kW drives the main separation unit. Compared to centrifugal systems requiring 15-22kW, you save 65-75% on electrical costs. Low-speed operation at 45rpm minimizes wear and vibration.

Adaptable Feed Systems

Choose between screw conveyor or pump feeding based on your slurry characteristics. Thick poultry manure flows reliably through screw systems. Liquid dairy waste pumps efficiently with submersible units.

Consistent Output Quality

Precision-engineered screen apertures maintain uniform separation across varying input conditions. Whether processing morning flush or afternoon scrape, solid moisture stays within specification.

Minimal Maintenance Requirements

Simple mechanical design features accessible wear components. Screen replacement takes 45 minutes with standard tools. No specialized technical skills required for routine service.

Quality Assurance and Certification

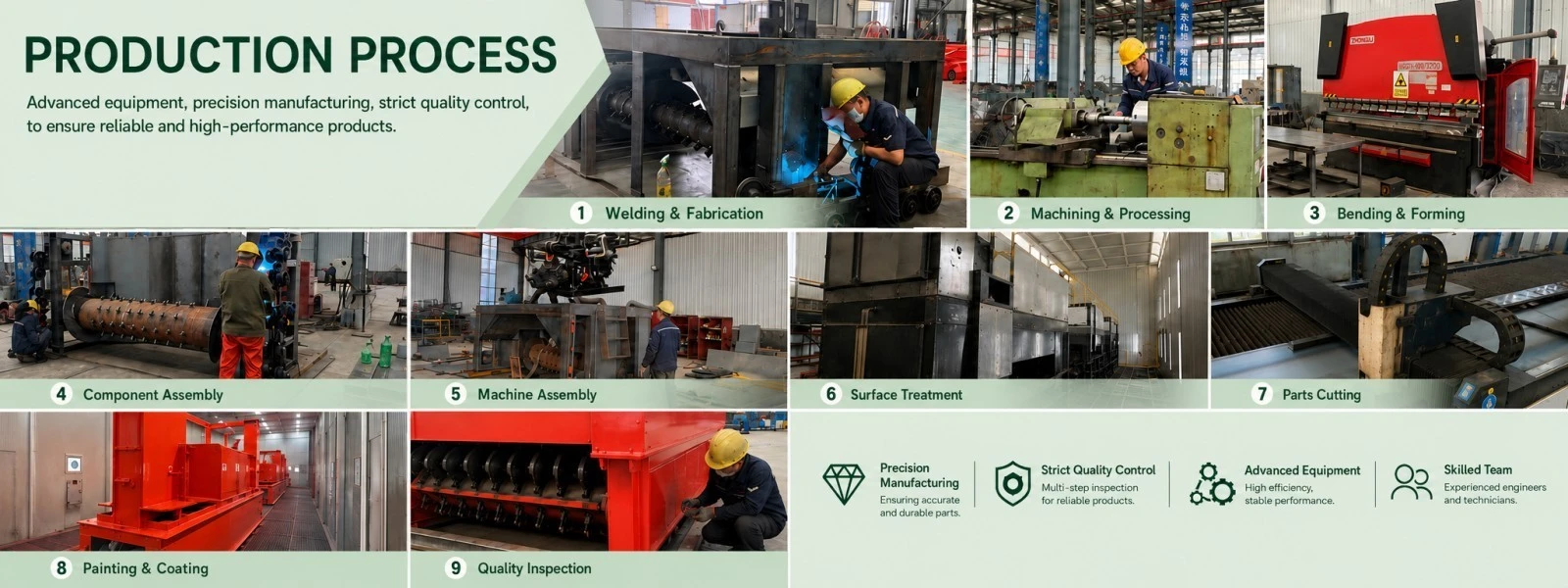

Every unit undergoes five rigorous factory tests before shipment. Screw dynamic balance verification ensures vibration-free operation. Material spectrometer analysis confirms stainless steel grade compliance.

Screen aperture uniformity testing uses digital imaging to validate consistent performance. Loaded run-in tests measure motor temperature and seal integrity under maximum viscosity conditions.

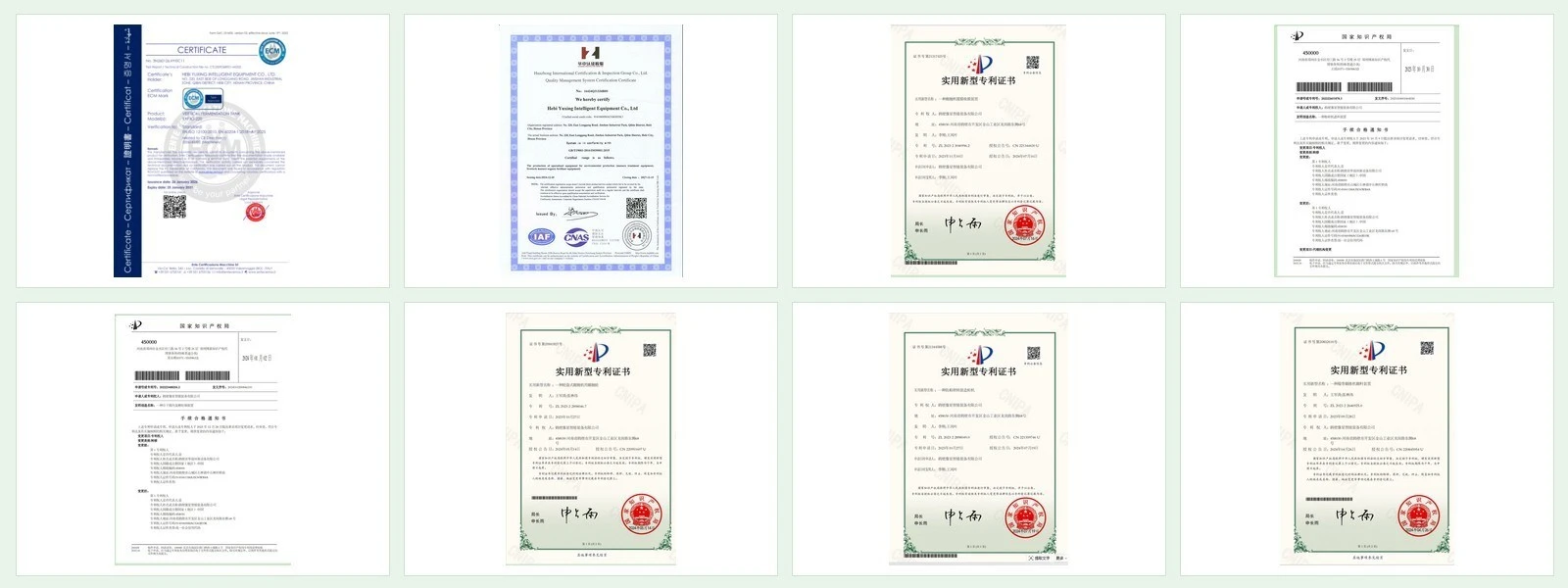

Our machines meet CE safety standards and ISO quality certifications. These international credentials ensure compatibility with global agricultural equipment regulations.

You receive complete documentation including material certificates, test reports, and compliance declarations. This transparency supports your facility's environmental permitting requirements.

Customization for Global Markets

We understand that one specification doesn't serve every operation. Our engineering team adapts equipment to your regional needs.

Electrical Adaptation: Configure for 220V, 380V, 415V, or 480V supplies with 50Hz or 60Hz frequency. Siemens or Schneider control components integrate with existing farm automation systems.

Capacity Scaling: Need higher throughput? We engineer units processing up to 15m³/h for mega-dairy operations. Smaller 0.5m³/h systems serve specialty livestock facilities.

Climate Hardening: Sub-zero temperature packages include thermal insulation and heated enclosures. Tropical configurations feature enhanced ventilation and UV-resistant coatings.

Interface Localization: PLC control panels display in your preferred language. HMI touchscreens simplify operator training across multilingual workforces.

OEM Partnership: Private labeling available for equipment distributors and turnkey project contractors. We support your brand while delivering proven Yuxing reliability.

​​​​​​​

FAQ

Q: How do I select the right screen aperture for my manure type?

A: Pig manure typically requires 0.5mm screens due to fine particle size. Cattle manure with higher fiber content performs better with 0.75-1.0mm apertures. We provide sample testing to verify optimal specification before purchase.

Q: Will sand bedding damage the separator?

A: Sand is highly abrasive. For sand-laden dairy manure, we recommend adding a pre-settling tank. Our extreme-duty screw option features tungsten carbide coating that handles abrasive materials.

Q: What is the expected lifespan of wear components?

A: Standard screw assemblies last 8,000-12,000 operating hours. Screens require replacement every 1-2 years depending on abrasive content. We maintain global spare parts inventory for rapid replacement.

Q: Can the machine operate in freezing conditions?

A: Yes, with proper preparation. Thermal insulation jackets or semi-enclosed housing prevent liquid from freezing inside the screen during shutdown periods. Cold-climate packages available.

Q: Does separation reduce liquid odor?

A: Significantly. Removing organic volatile solids eliminates the primary anaerobic decomposition sources. Separated liquid produces 60-70% less odor than raw slurry during storage.
