Fertilizer Feeding Hopper

Fertilizer Feeding Hopper - Professional Material Handling Solution for Modern Fertilizer Production

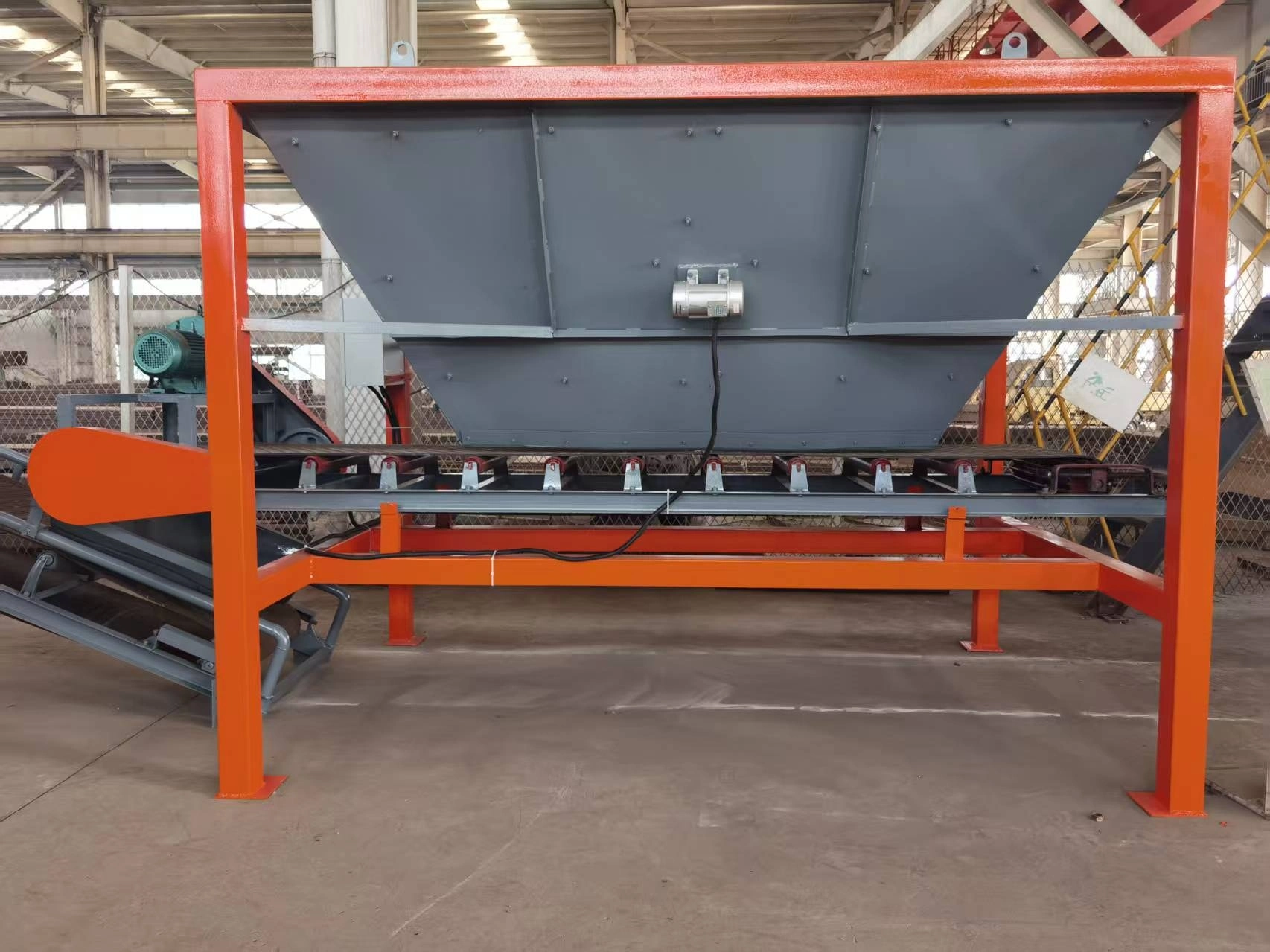

The YXLC-3020 Fertilizer Feeding Hopper from Yuxing provides enterprise-grade material handling precision for high-capacity fertilizer facilities. Loader feeding system with 3000×2000×2200mm dimensions and 3-15T/H capacity has dual-motor control technology: 3kW frequency conversion discharge motor for stepless speed adjustment and 0.55kW vibration motor for material adhesion and bridging prevention.

Our hopper design solves NPK granulation and compound fertilizer flow issues with over 20 years of fertilizer equipment manufacturing experience. The technology feeds material continuously and reduces manual loading by 60%. Over 50 nations use it as the reliable link between bulk storage and downstream processing equipment with CE and ISO certification and lifetime technical support.

How It Works: Advanced Flow Control Technology

The product uses a synchronized dual-motor system for flow dependability. Forklift or conveyor loading, the 3000x2000mm reception area supports large quantities, while optimal wall angles provide gravity-assisted flow to the disposal zone.

The 3kW VFD discharge motor controls speed precisely. Material production may range from trickle feed to 15 tons per hour without mechanical changes. With stepless control, downstream mixers, granulators, and packing operations are perfectly synchronized.

The hopper structure oscillates regulated by the 0.55kW vibration motor. The vibrations destroy molecular cohesion in hygroscopic compounds like urea, preventing material bridges or rat-holes that afflict fertilizer handling. Despite sticky or moisture-sensitive materials, flow remains steady.

Optional PLC integration and load sensors automate operation. Intelligent feeding for modern production environments is achieved by real-time monitoring material levels and automatically adjusting discharge rates.

Key Technical Advantages

Dual-Motor Anti-Blocking System

Frequency-controlled discharge and constant vibration alleviate material adhesion issues that disrupt production. This innovative design cuts downtime by 85% over passive gravity hoppers.

Stepless Capacity Adjustment

Variable frequency technology lets you adjust material flow rates without modifying equipment or mechanical settings. One hopper accommodates all manufacturing situations, from tiny specialty batches to maximum throughput.

Robust Industrial Construction

Based on corrosion-resistant materials and strengthened structural support, the system can endure fertilizer chemicals and continuous operation. Smooth interior finishes and steep internal wall angles reduce particle accumulation.

Integrated Safety Features

Hermetic sealing protects humidity-sensitive goods. Dust containment ensures worker safety. Overload protection and emergency stop functions protect operators and equipment.

Energy Efficient Operation

Power usage of 3.55kW is highly efficient. Smart motor control lowers partial-load energy loss, cutting operational costs and preserving performance.

Technical Specifications

Diverse Application Scenarios

NPK Granulation and Compound Fertilizer Plants

The product serves as the primary intake point where raw materials enter mixing and granulation processes. Its high-capacity design and precise flow control ensure consistent nutrient ratios in blended products, critical for maintaining fertilizer quality standards.

Automated Packaging and Bagging Lines

Acting as a surge bin, the hopper provides steady material supply to electronic weighing systems. The consistent head pressure and controlled discharge enable high-speed packaging operations with accuracy within ±0.5%, maximizing throughput while minimizing product giveaway.

Organic Fertilizer Production Systems

When processing composted materials, dried sludge, or livestock manure products, the vibration system proves invaluable. It prevents sticky organic materials from forming blockages, ensuring smooth transitions from crushing and drying stages to granulation equipment.

Bulk Blending Facilities

Multi-hopper configurations allow simultaneous handling of different fertilizer components. Precise individual control of each hopper enables accurate formulation of custom blends according to specific soil nutrient requirements or customer orders.

Chemical Fertilizer Manufacturing

In environments handling urea, ammonium nitrate, or phosphate compounds, the hopper's corrosion-resistant construction and moisture protection features maintain material integrity while ensuring worker safety through proper dust containment.

Quality Control and Reliability Assurance

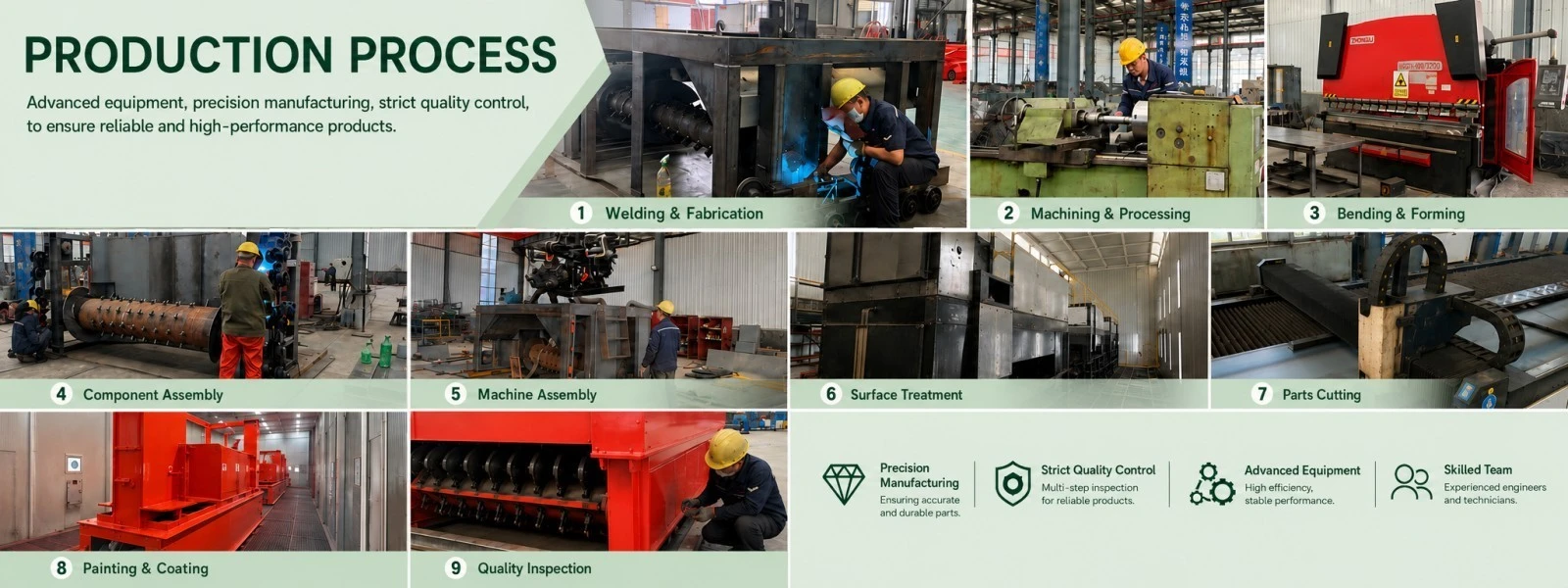

Every Yuxing Fertilizer Feeding Hopper undergoes comprehensive quality verification processes. Material grade verification confirms corrosion-resistant specifications through spectrometer testing. All structural welds receive non-destructive testing (NDT) inspection to prevent fine particle leakage.

Flow performance testing validates proper operation with actual fertilizer materials. Surface finish measurements ensure interior smoothness prevents particle adhesion. Motor calibration guarantees accurate speed control across the full operating range.

Load testing verifies structural integrity under maximum capacity conditions. Vibration system performance is measured to confirm effective anti-blocking functionality. All electrical components meet international safety standards for industrial environments.

The assembled unit undergoes complete operational testing before shipment. This includes extended run-time testing to identify any potential issues. Final inspection confirms all safety features, control systems, and mechanical components meet Yuxing's rigorous quality standards established over 20 years of manufacturing excellence.

Installation and Customization Options

Yuxing provides complete installation support for your production environment. Our technical team assists with foundation design, electrical integration, and mechanical positioning. Standard delivery time is 15-20 days for customized configurations.

Available customization options include:

• Hopper volume modifications for different capacity requirements
• Alternative construction materials for specific chemical compatibility
• PLC integration with your existing control systems
• Multi-language HMI interfaces for international operations
• Siemens or Schneider electrical components per your preference
• Dust collection and containment system integration
• Load cell systems for automated inventory management
• Big bag discharge frames for bulk unloading applications

CE certification and voltage adaptation ensure compliance with your local regulations. OEM branding services are available for equipment manufacturers and system integrators. Our experienced export logistics team handles container optimization and international shipping to over 50 countries worldwide.

​​​​​​​

FAQ

Q: How does the hopper handle sticky materials like wet compost or humid urea?

A: The 0.55kW vibration motor continuously breaks molecular cohesion that causes material clumping. Combined with optimized wall angles, this ensures consistent flow even with challenging hygroscopic or moist materials.

Q: Can the system integrate with automated production control?

A: Yes, our hoppers accept standard industrial control signals. Optional load cells and level sensors provide real-time data to your SCADA or PLC systems for fully automated operation and inventory management.

Q: What maintenance is required for long-term reliable operation?

A: The robust design requires minimal maintenance. Regular inspection of motor bearings, periodic cleaning of interior surfaces, and checking of electrical connections constitute the primary maintenance schedule. Most customers report trouble-free operation for years.

Q: Is the hopper suitable for corrosive chemical fertilizers?

A: Construction materials are selected for fertilizer industry applications. For highly corrosive environments, we offer enhanced corrosion-resistant options including stainless steel upgrade or protective coating systems.

Q: How quickly can you deliver customized configurations?

A: Standard models ship immediately from inventory. Custom configurations including dimensional modifications, special motors, or control system integration typically require 15-20 days from order confirmation to delivery.
