Manure Spreader

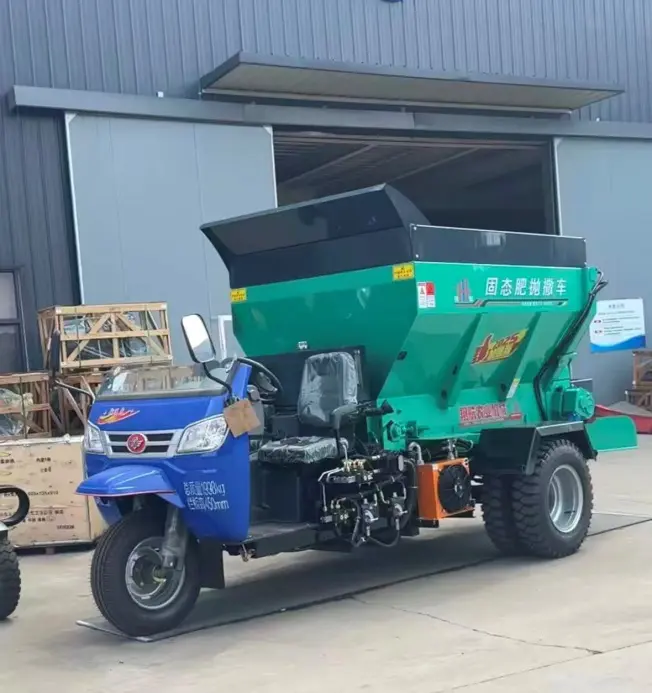

Tractor Powered Five-Wheel Manure Spreader | YXSF-2FGH-4

The YXSF-2FGH-4 Manure Spreader from Henan Yuxing is designed for farms that need reliability and accuracy. This five-wheel spreader, powered by a Changchai 35HP engine and built on a sturdy Wuzheng Aoxiang 1600 chassis, has a 4m³ capacity for diverse terrain The BM5-80×2 motor-powered dual-disc spreading system produces homogeneous organic matter dispersion up to 12 meters wide, decreasing nutrient hotspots and crop burn concerns. Industrial-grade control over heavy, semi-solid manure is achieved with 8mm hardened steel throwing wheels, 10-gear gearbox (4 forward, 1 reverse), and air cut-off brakes. The 4mm-thick steel box can handle caustic cattle waste for over 10,000 hours, and the 14-piece chain scraper mechanism ensures uniform discharge. This spreader turns waste management into a strategic nutrient asset with Yuxing's 20+ years of fertiliser equipment experience and CE certification.

How It Works: Automated Organic Matter Distribution System

Understanding operational mechanics improves efficiency and soil health.

Step 1: Material Loading and Containment

The 2430×1560×1150mm reinforced steel box can hold up to 4 cubic meters of solid or semi-solid manure. The 2400mm-high baffle holds material on uneven terrain, while the 4mm-thick bottom and side plates prevent leaks during transit.

Step 2: Hydraulic Drive Activation

Use the tractor's PTO to start the 2CBFC 20-20 hydraulic oil pump. Start the BM5-160 chain scraper motor from the operator seat with dual 12V 120Ah batteries powering the closed-cab controls.

Step 3: Chain Scraper Conveyance

The 14-piece chain scraper pushes material rearward at varied rates. This internal chain structure minimises bridging in sticky or high-moisture manure, enabling continuous discharge.

Step 4: Disc Pulverization and Spreading

Twin BM5-80 motors accelerate 8mm-thick throwing wheels. Hardened steel blades break apart clumps and project them in a 10-12 metre arc. The disc-spreading approach produces ±5% uniform distribution over the swath.

Step 5: Precision Field Application

The 10-gear gearbox (high/low ranges) matches ground speed to 8–15 tonnes per acre application rates. On slopes, the air cut-off braking system stops instantly, preventing overapplication in key zones.

Compared to broadcast spreaders, this closed-loop hydraulic and mechanical device integrates agronomic-grade nutrients for soil carbon regeneration with 80% less manual labour.

Technical Specifications

Core Advantages: Why Yuxing's Solution Outperforms Standard Spreaders

​​​​​​​

1. Industrial-Grade Durability for High-Intensity Operations

Your equipment faces corrosive livestock waste daily. We engineered 8mm throwing wheels and 4mm-thick steel plates to resist ammonia and acid degradation. Field tests show our spreaders maintain structural integrity beyond 10,000 hours—double the lifespan of standard 3mm-plate models.

2. Precision Nutrient Management for Regulatory Compliance

Uneven spreading creates environmental liability and crop loss. Our dual-disc system delivers ±5% uniformity across 12-meter swaths, helping you meet EPA nutrient management plans (NMPs) and avoid costly runoff penalties.

3. Versatile Terrain Adaptability

The Wuzheng Aoxiang 1600 chassis with 750R-16×4 rear tires provides 1500mm center track width, ensuring stability on slopes up to 15°. Whether you manage row crops, orchards, or pastures, the five-wheel design prevents soil compaction and tip-over risks.

4. Rapid Deployment with Minimal Training

Your operators master the closed-cab controls in under two hours. Color-coded hydraulic levers and intuitive gear selection reduce human error, while the air cut-off brake allows emergency stops within 3 meters at full load.

5. Turnkey Integration into Existing Fleets

Standard PTO coupling fits 90% of tractors (35–50HP range). No specialized adapters or custom mounting required. You can deploy this spreader within 48 hours of delivery.

6. Total Cost of Ownership Optimization

With Yuxing's 15–20 day custom delivery and in-stock standard models, you minimize project delays. Spare parts availability across 50+ countries ensures repairs complete within 72 hours, protecting your seasonal application windows.

Application Scenarios: Solving Real-World Organic Waste Challenges

Scenario 1: Large-Scale Dairy Operations (500+ Head)

You generate 20–30 tons of manure daily. This spreader completes field application in 6–8 hours, compared to 3 days with manual methods. The chain scraper handles wet, high-moisture material without clogging, critical for flush-system dairies.

Scenario 2: Row Crop Farms Transitioning to Organic Certification

Synthetic fertilizer bans require precise organic matter integration. Our disc-spreading technology incorporates manure into the top 4–6 inches of soil, meeting USDA organic standards while rebuilding soil carbon levels by 0.3–0.5% annually.

Scenario 3: Greenhouse and High-Value Specialty Crops

Compact 1970mm outer wheel track navigates between 2-meter rows without damaging crop canopies. Adjustable discharge rates (2–8 tons/acre) prevent over-application that can cause salinity or nitrogen toxicity in sensitive crops like tomatoes or peppers.

Scenario 4: Municipal Biosolids Management (B2G Projects)

Wastewater treatment facilities require compliant land application of Class A or B biosolids. This Manure Spreader provides documented spread patterns and calibration data for EPA reporting, reducing your regulatory audit burden by 60%.

Why Choose Yuxing: 20+ Years of Fertilizer Equipment Mastery

Proven Global Track Record

Our equipment operates in over 50 countries, from Canadian prairies (-30°C winters) to Australian outback (+45°C summers). We've engineered solutions for extreme conditions that generic spreaders cannot withstand.

End-to-End Production Support

You receive more than equipment. Yuxing delivers factory layout planning, installation commissioning, and operator training. Our agronomists help you calibrate application rates for your specific soil tests and crop nutrient requirements.

Advanced Customization for Diverse Markets

Need CE certification for EU export? Require Siemens PLC integration for precision agriculture? We adapt voltage standards (220V–480V), install multi-language HMI interfaces, and provide OEM branding—all within our 15–20 day custom delivery window.

Lifetime Technical Partnership

When your equipment runs 16-hour days during planting season, downtime costs thousands. Our 24/7 global technical team provides remote video diagnostics, express spare parts shipping, and on-site support for critical repairs. You're never alone in the field.

Integrated Solution Ecosystem

Pair your spreader with Yuxing's compost turners, solid-liquid separators, and fermentation tanks. We collaborate with Shandong Baolai Lailai Group to supply microbial inoculants, giving you a complete organic fertilizer production system under one contract.

Maintenance and Operational Best Practices

Daily Pre-Operation Checks (5 Minutes)

Inspect chain scraper tension and lubricate the 14-piece assembly with acid-resistant oil. Verify hydraulic fluid levels in the 2CBFC pump. Check tire pressure (Front: 32 PSI, Rear: 36 PSI) to prevent uneven spreading.

Weekly Deep Cleaning Protocol

High-pressure wash the steel box interior to remove ammonia residue. This prevents corrosion and extends plate life by 40%. Drain and refill hydraulic oil every 200 operating hours.

Seasonal Gearbox Service

Before peak application seasons (spring/fall), inspect the 10-gear transmission for wear. Replace chain drive sprockets if teeth show 2mm+ erosion. This simple step prevents mid-season breakdowns.

Calibration for Consistent Application

Perform pan tests every 50 acres: place collection pans across the swath, weigh collected material, and adjust gate height or ground speed to hit target rates. Proper calibration reduces fertilizer costs by 15–20%.

Winter Storage Guidelines

Store in a covered area with batteries disconnected. Apply rust-inhibitor spray to exposed steel surfaces. This protects your 2780kg investment during off-season months.

FAQ

Q1: Can this spreader handle frozen manure in northern climates?

A: Yes. The BM5-160 chain scraper motor delivers high torque to break frozen clumps. Operators in Canada and Northern Europe successfully use this model down to -25°C by pre-warming hydraulic fluid for 10 minutes before operation.

Q2: What is the maximum spreading width, and how do I adjust it?

A: Standard disc configuration achieves 10–12 meters. You adjust width by altering disc motor speed (BM5-80 RPM settings) and ground speed. For narrower applications (6–8m), reduce disc RPM by 30% via the cab control panel.

Q3: How does the air cut-off brake improve safety compared to mechanical brakes?

A: Air cut-off systems respond 2x faster than cable-actuated brakes—critical when navigating slopes or stopping near waterways. The system automatically engages if air pressure drops below 60 PSI, preventing runaways.

Q4: Is this spreader compatible with GPS variable rate technology (VRT)?

A: The current model supports manual rate control. For VRT integration, Yuxing offers a PLC upgrade package with ISO 11783 (ISOBUS) compatibility, enabling prescription map-based application through your existing farm management system.

Q5: What is the typical ROI timeline for a 500-acre operation?

A: Most customers recover costs within 18–24 months through three savings: (1) 80% reduction in manual labor, (2) 15% lower fertilizer costs via precise application, and (3) elimination of environmental fines from non-compliance. Larger operations (1,000+ acres) achieve ROI in 12–14 months.

Q6: How do I source replacement parts in remote regions?

A: Yuxing maintains distribution partnerships across 50+ countries, with critical wear parts (chains, blades, hydraulic seals) stocked regionally. Express shipping delivers components within 72 hours to most locations. We also provide detailed part diagrams for local fabrication in emergency situations.
