How the windrow composting machine works

A windrow composting machine operates by straddling elongated compost piles, mechanically lifting and tumbling organic material through rotating blades or drums to inject oxygen deep into the windrow core. This mechanical aeration disrupts anaerobic pockets, raises internal temperatures to thermophilic levels (130-160°F), and homogenises moisture and microbial populations throughout the pile. By repeating this process at controlled intervals, the equipment transforms raw livestock manure, crop residues, and food waste into stabilised, pathogen-free compost within 7 to 15 days, compared to passive methods that require several months.

Understanding the Core Mechanism of Compost Turning Equipment How Does Mechanical Aeration Accelerate Decomposition?

Transferring oxygen is the main idea behind any windrow composting machine that works well. When you don't touch biological trash for a while, microbial colonies start using up oxygen within hours. This changes the decomposition process to anaerobic pathways, which produce methane and hydrogen sulfide. By mechanically turning the pile, material is physically flipped from the oxygen-poor interior to the surface. This exposes new surfaces to air and brings back to life aerobic bacteria. These good microorganisms break down organic matter 10 to 15 times faster than their anaerobic counterparts. This makes enough heat to kill weed seeds and pathogens like E. coli and Salmonella.

Key Components That Drive Performance

Many important parts are built into modern windrow composting machines. The rotor unit has hardened steel blades that are designed to handle rough surfaces like sand, grit, and fibrous stalks. It has a width of about 680 mm. A turbocharged diesel engine, like the 70 kW engine in the YXFD-2500, keeps working speeds between 0 and 15 metres per minute no matter how dense the material is. It does this by providing steady torque even when the load changes. With six forward and two reverse gears, hydraulic drive systems let operators change the speed precisely, so they can change how aggressively the machine turns based on the moisture content of the feedstock and the maturity of the pile. The crawler track design spreads the machine's weight (about 3,500 kg for a 2.5-metre-wide unit) over a large area. This keeps the soil from compacting and lets the machine work on unpaved or gravel-stabilised composting yards.

The Science of Temperature Management During Turning

Temperature measurement shows why mechanical help is important. Within 48 hours of the pile being built, microbial respiration raises the core temperature to 110°F to 130°F. However, if the pile isn't turned, heat builds up unevenly, and pathogens lie dormant in the cooler areas. Each cycle of turning moves hot material from the centre to the edges and pulls cooler material inward. This creates a consistent temperature setting that keeps the thermophilic phase going. This constant heat exposure for 72 hours in a row at temperatures above 131°F meets U.S. EPA Class A biosolids standards, which ensures that the final product can be used directly on land without any problems. Operators use probe thermometers to keep an eye on the pile temperatures and schedule shifts when readings drop below the ideal levels or when the smell of ammonia suggests that nitrogen is escaping from the pile because it is too hot.

Benefits and Efficiency of Industrial Compost Turning Systems

Environmental Advantages Through Rapid Waste Processing

Livestock farms that produce 20 to 50 tonnes of manure every day are under more and more pressure to reduce complaints about smells and the risk of nutrients running off. Traditional static composting takes months, needs a lot of land, and creates long windows of time when emissions are released. When turning is done by a machine, fermentation times are cut by 65 to 70%. This means that a less active composting area is needed, and ammonia doesn't evaporate as quickly because the mixture is stabilised faster. By turning trash into compost that can be sold within two weeks, facilities free up land for more production cycles and make money from selling organic fertiliser, which pays for the equipment within 18 to 24 months.

Operational Efficiency Metrics That Matter

The suitability of equipment is based on its throughput capacity. A machine that can handle 600 to 800 cubic metres per hour, like the YXFD-2500 with its 2,500 mm working width and 1,100 mm height clearance, can handle windrows that are 50 to 80 metres long in a single pass. This can turn about 10,000 to 15,000 tonnes of material per month when it is run on a three-day rotation. This processing output is about the same as what medium-sized fields with 5,000 to 10,000 cattle or 100,000 chickens would do. It is still very important to use fuel efficiently. Diesel engines that are supercharged and designed to run at low speeds all the time use 12 to 18 litres of fuel per hour, which costs $0.08 to $0.12 per cubic metre in direct energy costs at the current diesel price.

Labour savings are another measured benefit. To turn a 500-tonne windrow by hand with front-end loaders, it takes two labourers six to eight hours of work, with inconsistent penetration depth and a lot of moving of equipment. A dedicated windrow compost turner windrow composting machine can do the same job in 90 minutes with just one operator, which cuts direct labour costs by 75% and improves the consistency of the mixing. This efficiency saves 800 to 1,000 hours of work over the course of a year, freeing up staff to do more valuable tasks like quality testing and product packaging.

Maintenance Requirements for Sustained Performance

Predictive repair plans make machines last longer than 10,000 hours of use. As part of the daily pre-shift inspections, the amount of hydraulic fluid is checked, the wear on the blades is evaluated visually, and the track tension is confirmed. Manganese steel rotor blades with Rockwell hardness ratings of 45 to 52 HRC can last for 600 to 1,000 hours in high-wear places before they need to be replaced. When processing chicken litter with 15 to 20 per cent sand, blades need to be replaced every six months. When processing cow manure with little mineral contamination, intervals are extended to 18 months. Engine oil changes every 250 hours and hydraulic filter replacements every 500 hours keep expensive downtime from happening. By providing expert help 24 hours a day, seven days a week, and keeping spare parts in stock, manufacturers can keep production going even during times when a lot of waste is being made.

Comparing Windrow Systems with Alternative Composting Technologies

In-Vessel Composting: Speed Versus Capital Investment

Enclosed reactor systems speed up breakdown to 10 to 14 days by controlling temperature and airflow automatically. This makes them appealing to sites that want to reduce their environmental impact. Capital costs, on the other hand, are between $150,000 and $500,000 for 200 to 500 cubic metres of daily capacity, while they are between $18,000 and $35,000 for windrow composting machines of the same size. The operating costs make the difference even bigger: in-vessel systems use 40 to 60 kWh per tonne for forced aeration and climate control, which costs an extra $4 to $6 per tonne in energy. When natural convection and solar heating are used in windrow operations, these costs are eliminated. This makes mechanical turning the most cost-effective option for farms with available land and mild weather.

Aerated Static Piles: Simplicity with Mixing Limitations

Passive aeration through floor lines with holes in them requires less technical work but makes the airflow less even. The stuff that is in direct contact with air channels dries out too quickly, while the top layers stay wet. This makes layered compost with uneven nutrient profiles. Continuously running blower systems use 15 to 25 kWh per tonne, which is about half as much energy as in-vessel reactors but don't provide as good of process control. When handling pre-screened, homogeneous feedstocks like yard waste, static pile methods work well. However, they don't work well with heterogeneous animal dung that includes bedding, feed waste, and different amounts of moisture.

Diesel Versus Electric Powertrains: Infrastructure Considerations

Electric-powered windrow composting machines cut down on noise and pollution by 15 to 20 decibels, which is helpful for composting sites on the edges of cities that are close to homes. However, they can only work if there is three-phase power at 380 to 440 volts and enough amperage to support a continuous draw of 75 to 90 kW. In rural areas with unreliable grid access or single-phase restrictions, businesses that take care of livestock usually use diesel units instead, which don't need to be connected to the grid. The YXFD-2500's turbocharged diesel engine works reliably in temperatures ranging from -10°C to 45°C. This is important for sites in Kazakhstan, northern China, and other continental areas where winter composting happens all year.

Choosing Equipment That Matches Your Operational Profile

Assessing Daily Waste Volume and Windrow Configuration

Getting things starts with figuring out how much waste is being made. A dairy farm with 5,000 cows that produces 55 kg of dung per animal every day creates 275 tonnes of raw material every week. To get the best C:N ratios, 20 to 30 per cent carbon-rich bedding needs to be added. This makes about 360 tonnes of compostable waste every week. Putting this amount of material into windrows that are 60 metres long, 2.5 metres wide, and 1.1 metres high makes four rows that are parallel and take up 600 square metres. A machine that can handle 700 cubic metres per hour can do a full-site turn in less than three hours, which means that turning can happen twice a week while fermentation is still going on.

Evaluating Build Quality and Component Durability

Professional operators carefully look at how the frames of a compost windrow machine are put together and look for strengthened box-section axles with continuous weld lines instead of bolted units that are more likely to fail due to stress concentration. Using hydraulic parts from well-known brands, like pumps with 3,000 to 5,000-hour service intervals, lowers the number of times that maintenance needs to be done. When blade fastening systems use changeable bolt-on edges instead of welded designs, maintenance can be done in the field without taking the machine apart. When facilities plan for equipment to last 10 to 15 years, they look for sellers with large inventories of spare parts and expert documentation in local languages. This way, they don't have to wait months to get proprietary parts from abroad.

The Value of Customisation and Certification

Getting CE and ISO certifications is important for businesses that want to send finished compost to controlled markets or get environmental permits because they show that they follow international safety and quality standards. Changing the voltage (220V, 380V, or 440V) makes sure that the electrical systems work together, and integrating a PLC lets you keep track of the number of turns, hours worked, and fuel used for reporting on sustainability. Paint coats that don't rust or break down in ammonia or UV light make structures last longer outside. YUXING can customise machines by changing their shape to fit the needs of the site. For example, they can lower the overall height for facilities with low-clearance storage buildings or widen the track stance to make them more stable on sloped ground.

Best Practices for Maximising Machine Performance and Compost Quality

Optimising Turning Frequency Based on Feedstock Characteristics

Materials high in nitrogen, like chicken manure and food scraps, cause sudden increases in temperature. This means that the material needs to be turned over every 36 to 48 hours to keep it from reaching temperatures above 170°F, which kills good microbes. Carbon-rich feedstocks, like straw-heavy cow manure, heat up more slowly, so there are gaps of 72 to 96 hours between early-stage turns. After 10 to 14 days, the piles move into the hardening phase. After this point, they are only turned once a week, mostly to keep aerobic conditions and spread out the wetness as the material hardens. Operators change their schedules based on the time of year. For example, in the summer, when it's hot, decomposition speeds up, so the time between turns is shortened. In the winter, turning is done to save heat by limiting exposure to freezing air.

Feedstock Preparation Techniques That Enhance Process Efficiency

Pre-processing has a big effect on how well the machine works and how good the compost is. By shredding woody waste and crop stalks into pieces smaller than 250 mm, which is the largest width that the YXFD-2500 drum can handle, rotor jams are avoided, and there is more space for microbes to grow. When you mix dry bedding with wet manure before making a windrow, you get a uniform 55 to 65 per cent moisture content. This stops the clumping and poor oxygen entry that happen when you put wet and dry materials separately. When facilities use tub grinders or hammer mills for front-end processing, the total fermentation time is cut by 20 to 25 per cent, and equipment stops less often to clean up trash.

Safety Protocols and Operator Training Essentials

When turning compost, there are risks, such as tools flipping over on uneven ground, flying debris from rotors hitting stones or metal pieces, and breathing in bioaerosols that contain fungal spores. Pre-operational site inspection to find and remove foreign objects is a big part of comprehensive operator training. So is keeping safe working distances from rotating parts and using enclosed cabs with HEPA filtration when they are available. Every week, emergency stop circuits should be checked, and operators should carry two-way radios with them in composting yards that are far away and don't have cell service. Refresher training on how to lock out and tag out a hydraulic system once a year keeps people from getting hurt while replacing blades or doing regular repairs.

Conclusion

When animal farms and business composting sites know how their equipment turns compost, they can make smart investments that speed up the process of turning waste into something useful while lowering their environmental impact. Windrow composting machines add motorised aeration that breaks down months-long decomposition into regular two-week stages. This makes organic soil that can be sold and covers the costs of running the machine. Choosing equipment that fits the daily throughput needs, the site's terrain, and the infrastructure that is available will ensure effective performance in a range of temperatures and feedstock types. With regular upkeep and good operating habits, these systems can last for ten years, which makes them essential for long-term control of farm waste.

FAQ

1. What Determines the Ideal Turning Interval for Different Waste Types?

The amount of nitrogen and moisture in the material determines how often it turns. To keep anaerobic compaction from happening, wet poultry manure that is more than 70% moisture needs to be turned every day for the first week. Dry horse manure with wood shavings, on the other hand, works well every three days. Keeping an eye on pile temps gives you objective schedule cues: turn when core readings go above 160°F or below 110°F.

2. How Do Track-Type Turners Perform on Soft or Waterlogged Composting Pads?

The weight of a crawler is spread out over an area of 1.5 to 2 square metres, with ground pressures of 0.3 to 0.5 kg per square centimetre. This low loading lets it work on rock that has been packed down or stable soil that has between 6 and 8 per cent water content. To keep equipment from rutting, wet areas need to have drainage problems fixed or geotextiles reinforced before they can be used.

3. Can One Machine Process Multiple Feedstock Types Sequentially?

Cross-contamination is kept to a minimum when switching between feedstocks. After making one last pass over empty ground to move any leftover material, the operators start working on the next batch. Facilities that keep their organic certification or make specific composts may set aside different tools for animal waste and plant-based materials.

Partner with YUXING for Reliable Compost Turning Solutions

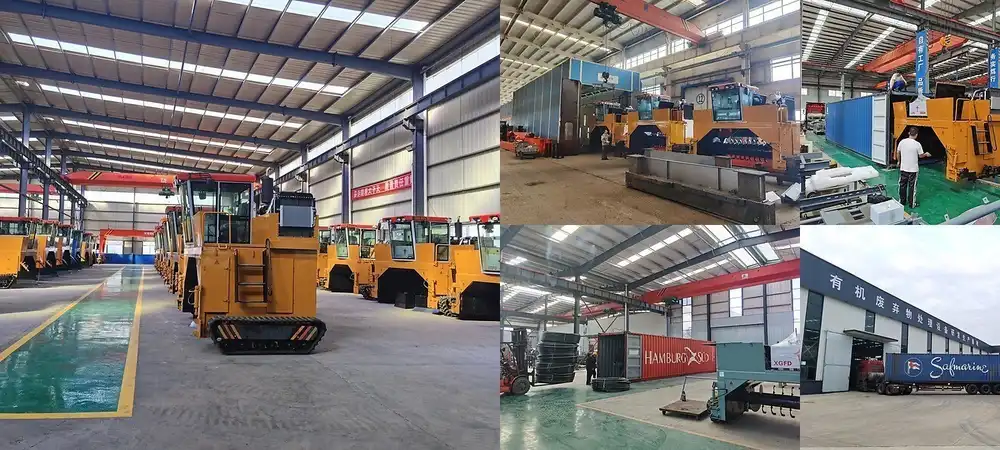

YUXING brings over 20 years of fertiliser equipment manufacturing expertise to windrow composting machine production, serving clients across 50 countries with proven crawler-type systems. Our YXFD-2500 model combines 600 to 800 cubic metres per hour throughput with CE and ISO certifications, backed by lifetime 24/7 technical support covering installation, operation training, and spare parts consultation. We maintain stock inventory for rapid despatch and offer ODM/OEM customisation, including voltage adaptation, PLC integration, and component localisation to match your electrical infrastructure and automation requirements. Whether you operate a 500-head dairy or a 50,000-tonne annual commercial composting facility, our engineering team provides tailored equipment configurations and complete production line design. Contact our specialists at yuxing@hnyxmachinery.com to discuss your waste volume, site conditions, and processing goals—we'll recommend the optimal windrow composting machine manufacturer solution and provide detailed quotations within 24 hours.

References

1. Rynk, R., et al. (2022). The Composting Handbook: A How-to and Why Manual for Farm, Municipal, Institutional and Commercial Composters. Academic Press.

2. Haug, R. T. (2018). The Practical Handbook of Compost Engineering: Principles and Practice. CRC Press.

3. Epstein, E. (2021). Industrial Composting: Environmental Engineering and Facilities Management. Taylor & Francis.

4. Kumar, S. (2020). "Mechanical Aeration Systems in Windrow Composting: Performance Evaluation and Optimisation." Waste Management & Research, 38(4): 412-428.

5. Zhang, L., Sun, X. (2023). "Comparative Analysis of Compost Turning Equipment in Large-Scale Livestock Waste Management." Biosystems Engineering, 227: 115-132.

6. U.S. Environmental Protection Agency. (2022). Standards for the Use or Disposal of Sewage Sludge: Pathogen and Vector Attraction Reduction Requirements. EPA 503 Rule Technical Guidance.
