Compost Turning Equipment: Types, Comparison, and Best Solution for Organic Waste Management

Managing organic waste from livestock operations and commercial composting facilities has become increasingly urgent. Compost turning equipment addresses the fundamental challenge of accelerating decomposition through mechanical aeration and mixing, reducing fermentation cycles from months to mere days. These machines replace labour-intensive manual methods with automated systems that improve compost quality, control odours, and dramatically increase processing capacity. Whether you operate a medium-scale organic fertiliser plant or manage livestock waste from dairy, poultry, or swine operations, selecting appropriate turning machinery directly impacts profitability, environmental compliance, and product consistency.

Understanding Compost Turning Equipment: Types and Functional Overview

The basic idea behind all compost-turning equipment is to add air to organic matter while breaking up layers that are too packed. This mechanical disturbance helps oxygen breakdown, raises the temperature inside to kill pathogens, and controls how much water is spread out across the pile.

Windrow Turning Systems

Windrow compost turning equipment works on long, open piles of compost that are right on the ground. These machines move along the length of the windrow and pick up material with spinning drums or augers. They then drop the material behind. In this group are self-propelled types with strong diesel engines that can be used outside on rough ground. The turning action moves water from wet areas to drier ones while incorporating oxygen from the air. Windrow systems work best in open-air sites with a lot of land, especially when more than a few tonnes of trash are generated every day. During busy times, these tools are essential for livestock farms that need to process chicken litter, cow manure, or farming waste.

Groove-Type (Trough) Compost Turners

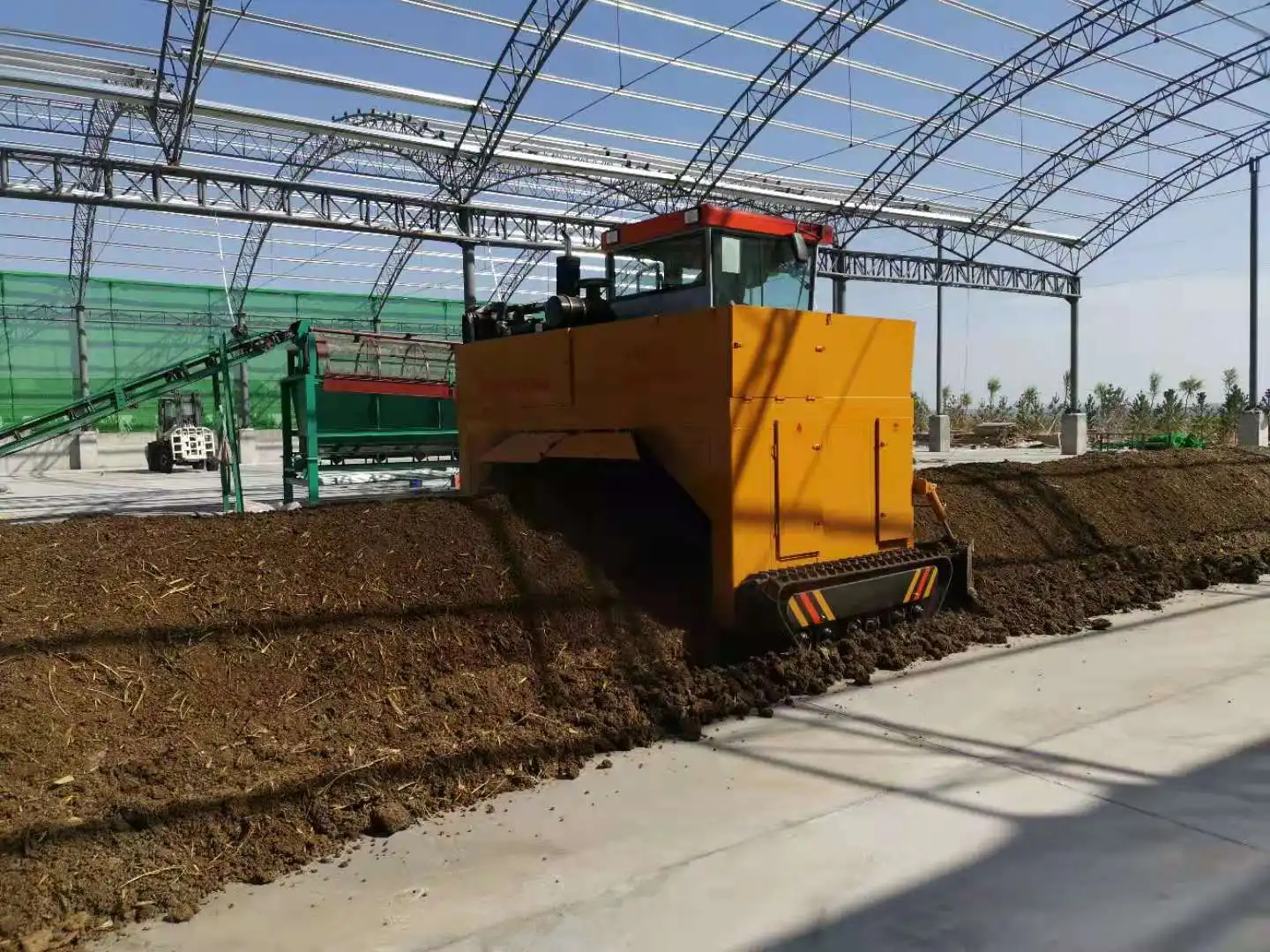

Systems with grooves work in trenches made of concrete or earth for fermentation. They move along rails that are installed along the edges of each trench. This group includes the YUXFP-3000 One-machine Whole-trough Compost Turner, which has a 3000 mm moving width and a height that can be changed from 0.8 to 1.2 metres. This model can make more than 200 cubic metres of material per hour thanks to its two 15 kW main motors that drive both ends of the turning shaft through cycloidal pinwheel reducers. Its multi-trough transfer function lets one machine service multiple fermentation ditches using a transfer car that comes with it. This makes site utilisation much more efficient than if separate equipment were used for each trough.

The hydraulic lifting system can adapt to different levels of material, and the trip speeds can be changed from 1 to 10 metres per minute to suit different densities of material. Having both remote and manual control choices gives operations a lot of freedom at different times of production. Eight 290mm cast steel wheels make sure that the rails stay in place, even when heavy things are on them.

In-Vessel Composting Systems

Enclosed systems keep biological garbage inside spinning drums or chambers, which control smells better and protect the environment. These systems have temperature tracking, moisture input, and automatic aeration built in. This makes them perfect for sites in cities that have to follow strict emission rules. Even though they cost more to install than open windrow systems, in-vessel equipment gives you more precise control over the process and takes up much less space on the land.

Comprehensive Comparison of Compost Turning Equipment for Different Scales and Needs

The size of the operation, the budget, and the compatibility of the infrastructure all play a big role in choosing equipment. Knowing about these factors stops expensive mistakes from happening when machinery capabilities don't match up with real output needs.

Mechanised Versus Manual Turning Methods

Teams use pitchforks and loaders to move pile material around every so often as part of manual compost management. This method needs a lot of work; usually, three to five people are needed for every 100 cubic metres of material that needs to be turned every week. Manual processes involve a lot of physical stress, unpredictable aeration patterns, and long ripening times (often 60 to 90 days). When some areas stay anaerobic and others dry out too much, quality variation becomes a problem.

With consistent, thorough mixing, mechanical compost turning equipment cuts the amount of work that needs to be done by 70–85% while shortening the fermentation time to 7–15 days. One person controls equipment that processes 200 to 500 cubic metres of material every hour, which changes the economics of labour for medium and big businesses. The better oxygen distribution speeds up the thermophilic breakdown phases, making sure that pathogens are destroyed according to regulations like the EPA's need for temperatures to stay at least 55°C for three days.

Electric Versus Diesel Power Configurations

Electric models work well in places with stable grid connections and three-phase power systems, especially for a windrow turning machine such as the YXFP-3000 with its two 15kW electric motors. They offer lower hourly costs, less maintenance, and no direct emissions while they're running. Electric systems work the same way during all shifts and don't have to worry about managing fuel, which makes them better for continuous production plans in composting sites that are already set up.

Diesel-powered compost turning equipment makes it possible for remote areas or activities that don't have good electrical connections to be mobile. These self-propelled tools can handle outdoor windrows on large properties where running power lines would not be possible. Diesel engines have better power-to-weight ratios for working with dense or wet materials, but they usually cost 40–60% more than electric models of the same size.

Capacity Matching and Throughput Analysis

Processing capacity needs to match the amount of trash that is made every day, plus changes that happen with the seasons. For batch cycling to work well, a dairy farm that makes 50 cubic metres of manure every day needs equipment that can turn that much material in two to three hours. A windrow turning machine and trough-type compost turning equipment can handle more than 200 cubic metres per hour, which is enough for medium-sized operations and leaves room for growth or peak production times.

Price ranges show levels of capability. Beginner PTO-driven turners cost between $3,000 and $8,000 for small jobs. Electric trough systems in the middle price range, like the YXFP-3000, cost between $15,000 and $25,000. They work well for businesses that have been around for a while. High-capacity self-propelled windrow turners cost between $25,000 and $35,000, but they can handle huge amounts of material across many windrows every day.

How to Choose the Best Compost Turning Equipment for Your Business?

When choosing machinery, you need to look at more than just the capacity numbers. Making the wrong choice can lead to practical problems, high upkeep costs, or poor compost quality.

Assessing Operational Scale and Waste Characteristics

First, figure out how much organic waste is made on average every day, taking seasonal peaks into account. When barns are cleaned out or bedding is changed, there are a lot of people working in the livestock industry. Facilities that take in city organic trash and compost it have to deal with changes every week. Write down these trends over the course of a full work year to find out when the most needs are met.

The characteristics of the material affect the choice of equipment. When mixed with straw bedding, cow manure works in a different way than poultry dung that is fine and high in nitrogen. Materials with more than 65% moisture work best with equipment that mixes them quickly and can work with boosting agents. The YXFP-3000's turning depth can be changed from 0.8 metres to 1.2 metres, so it can handle different pile heights when strategies for managing moisture add or remove bulking materials.

Evaluating Site Layout and Infrastructure

Existing facility design limits the kinds of equipment that can be used. Building fermentation ditches with the right drainage and rail lines is needed for trough-type systems. This requires a lot of infrastructure investment but will pay off in the long run by increasing efficiency. Models like the YXFP-3000 can move between multiple ditches, which makes the most of this infrastructure's return by letting one machine cover three to five trenches in a row.

For windrow systems to work, there needs to be open land with flat, strong surfaces that can hold big equipment. Wheeled industrial compost turning solutions and compost turning equipment have a hard time working on slopes that are steeper than 5%. The electrical system must be able to handle the motors' needs. The YXFP-3000 has two 15kW motors and two 2.2kW secondary motors that need stable three-phase power with enough amperage.

Prioritising Durability and Spare Parts Availability

The conditions for composting are very hard on tools. Hydrogen sulfide, corrosive ammonia gases from manure breaking down, and rough organic particles all speed up the wear on moving parts. Manganese steel alloy blades (Q345B grade or higher) are used in high-quality compost turning equipment. These blades survive wear and tear and keep their shape over thousands of hours of use.

Manufacturers with more than 20 years of experience, like YUXING, are the first to come up with designs that are based on real-world working situations instead of theoretical requirements. Their trough-type compost turning equipment has cycloidal pinwheel reducers, which are known for being reliable when the load changes over and over again. Double-row 20A chain and sprocket transmission methods protect against breakdowns at a single point.

Spare parts are what keep long-term processes going and keep tools from turning into expensive trash metal. Make sure that important wear parts like bearings, hydraulic lines, turning teeth, and seals are still available with acceptable wait times. Buyers from other countries should make sure that replacement parts can be serviced locally or shipped through trusted routes.

Environmental and Safety Considerations in Compost Turning Equipment Usage

As environmental controls on farming get stricter, following rules and making sure workers are safe at work have a bigger impact on the choice of equipment.

Emission Reduction and Odour Management

Compared to anaerobic breakdown in static piles or ponds, properly aerated composting greatly lowers the emissions of methane and nitrous oxide. Mechanical compost turning equipment makes sure that oxygen gets into all of the material's spaces. This keeps the conditions aerobic, which means that carbon dioxide and water vapour are mostly released instead of strong greenhouse gases.

Neighbours' complaints about smells can lead to operating risks, such as court action and losing a permit. Regular turning schedules keep anaerobic zones from forming where volatile sulphur compounds and organic acids make smelly substances. The YXFP-3000 and similar machines have a quick 1-10 metre per minute travel speed adjustment that lets operators change the turning frequency depending on the material's maturity, the weather, and how close they are to sensitive areas.

Operator Safety Protocols and Training

Machines that turn compost have moving parts, electrical systems, and heavy mobile equipment. Full training for operators lowers the chance of accidents and increases the life of machinery by making sure it is used correctly. Lockout-tagout procedures during maintenance, emergency stop procedures, and safe material handling practices that avoid overheight piles that make equipment unstable are all important parts of training.

Having a remote control makes things safer because it keeps people away from moving parts while they're using them. The YXFP-3000 has two control systems: one can be used by hand for precise work, and the other can be used remotely for normal moving cycles. Pay extra attention to hydraulic system maintenance—checking filters and keeping an eye on oil viscosity on a regular basis stops parts from breaking down that could be dangerous in high-temperature brewing settings.

Conclusion

Choosing the right compost turning equipment affects how well organic fertiliser plants, livestock farms, and commercial composting facilities run, the quality of their products, and their long-term profits. Trough-type systems, like the YXFP-3000, are very useful for medium-sized businesses because they can handle multiple troughs, are well-built, and work reliably. It's easier to make confident purchasing choices when you know about the different types of tools, their capacities, power configurations, and environmental factors. Partnering with experienced makers who offer full support, the ability to customise, and a track record of success in other countries protects your investment and sets up your business for long-term growth in the growing organic fertiliser market.

FAQ

1. Should I choose crawler-type or wheel-type turning machinery for my composting site?

Crawler-type compost turning equipment works best on loose, uneven ground, which is common in outdoor windrow operations, because they have better traction in a range of ground conditions. Wheel-type systems, like trough turners that run on tracks, are more mobile and work better on flat areas like concrete pads or fermentation trenches that are already set up. Check out the ground conditions and drainage patterns of your site, and decide if you'll build specific infrastructure or work with the way the land is already shaped.

2. How often should the turning teeth on the equipment be replaced?

Replacement times depend a lot on how rough the feedstock is and how hard the operation is. High-manganese steel teeth should be inspected every 500 hours of use, and they should be replaced when they are worn down to 30% of their original height. Materials handling operations that use a lot of sand, woody debris, or mineral pollution wear out faster. Keeping extra tooth sets on hand cuts down on the time needed for repairs.

3. Can compost turners handle moisture levels above 70 per cent?

Even though it is technically possible, moisture levels above 70% cause clumping, make oxygen transfer less effective, and put too much stress on drive systems. It works better if you mix dry thickening agents like sawdust, straw, or finished compost into material that is too wet before you turn it. The best moisture levels for microbes are between 50 and 65%, and keeping tools running smoothly and avoiding anaerobic zones in piles are also important.

Partner With YUXING: Your Trusted Compost Turning Equipment Manufacturer

YUXING has been making specialised compost turning equipment for organic fertiliser operations around the world for more than 20 years. The innovative multi-trough feature of our YXFP-3000 One-machine Whole-trough Compost Turner makes it work exceptionally well at medium-sized facilities while minimising equipment costs and improving site utilisation. With CE and ISO certifications and expert help available 24 hours a day, seven days a week, we offer full solutions from the initial design of the plant to its operational optimisation. Our ability to customise means that we can make equipment fit your exact voltage needs, automatic tests, and environmental compliance needs. Email our team at yuxing@hnyxmachinery.com to talk about the needs of your composting business and get full specs that fit your output goals.

References

1. Haug, R. T. (1993). The Practical Handbook of Compost Engineering. Boca Raton: Lewis Publishers.

2. Cooperband, L. (2002). The Art and Science of Composting: A Resource for Farmers and Compost Producers. Madison: University of Wisconsin Centre for Integrated Agricultural Systems.

3. Rynk, R., et al. (1992). On-Farm Composting Handbook. Ithaca: North-east Regional Agricultural Engineering Service.

4. Epstein, E. (2011). Industrial Composting: Environmental Engineering and Facilities Management. Boca Raton: CRC Press.

5. Diaz, L. F., & Savage, G. M. (2007). Factors that Affect the Process in Solid Waste Composting. Waste Management & Research, 25(5), 417-425.

6. Michel, F. C., et al. (2004). Fundamentals of Composting and Compost Technology. Columbus: Ohio State University Extension Publication.
