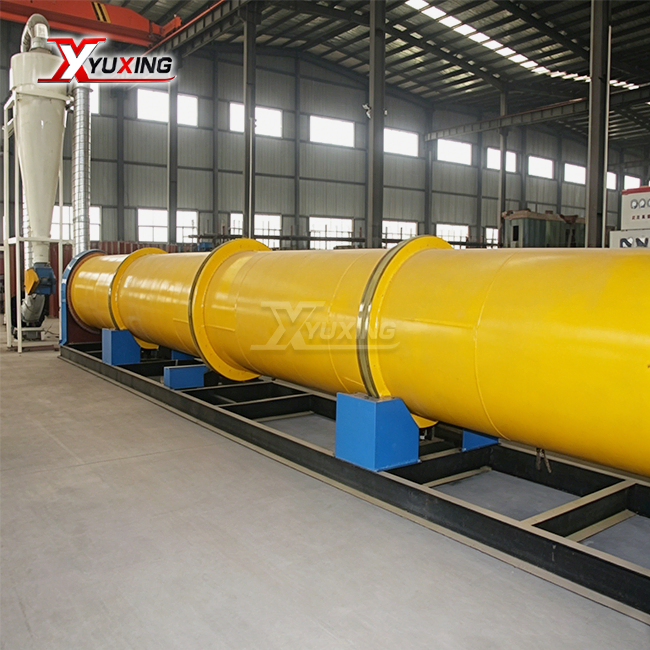

Fertilizer Drying Machine – Industrial Thermal Processing Solution by Yuxing

The industrial-grade rotary fertilizer drying machine from Yuxing Intelligent Equipment produces high-capacity fertilizer. Featuring corrosion-resistant carbon steel shells and customizable 5.2–6 r/min rotation speeds, our XGHG/YXHG range handles 3–18 t/h and moisture evaporation rates up to 20,000 kg/h. Units with intake temperatures ≥300°C and accurate 3–5° installation angles decrease moisture content to 2–5% in minutes. Our dryers handle material caking, nutrient deterioration, and transport inefficiencies with 20+ years of frontline production expertise in 50+ countries. Under continuous industrial usage, ZQ-series gear motors provide 7.5–45 kW of power and 10–15 years of operation.

​​​​​​​

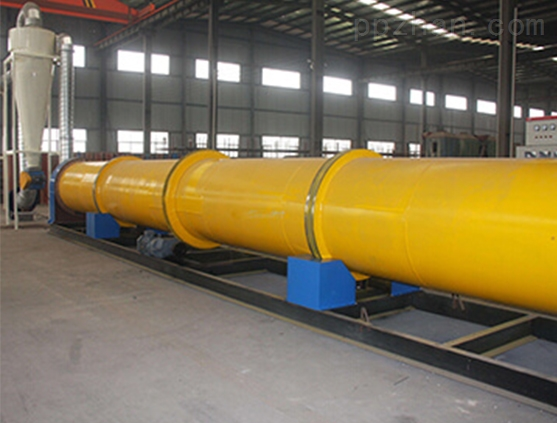

How a Fertilizer Drying Machine Works

Understanding the drying process helps you maximize equipment efficiency. Our rotary drum system uses thermodynamic principles to remove moisture rapidly while preserving nutrient integrity.

Step 1: Material Feeding & Heat Introduction

Wet granules enter through the hopper as hot air (≥300°C from coal/biomass/gas burners) flows counter-currently through the rotating drum. The 3–5° angle ensures steady material flow without backflow.

Step 2: Continuous Tumbling & Heat Exchange

Internal lifting plates create a uniform "material curtain" as the drum rotates at 5.2–6 r/min. This maximizes surface area contact with hot air, accelerating moisture evaporation from granule surfaces to cores.

Step 3: Moisture Discharge & Cooling

Evaporated water exits through the cyclone separator while dried fertilizer (outlet temperature <70°C) moves to the cooling stage. PLC automation maintains consistent thermal parameters throughout.

This process reduces moisture from 25–30% to below 5% in a single pass, preventing biological degradation in organic fertilizers and chemical breakdown in NPK compounds.

​​​​​​​

Technical Specifications

Core Applications Across Industrial Scenarios

Your production environment determines the ideal configuration. We've optimized our fertilizer drying machine for three demanding applications.

Large-Scale NPK Compound Fertilizer Production

Handles 12–18 t/h of granular NPK blends in continuous operations. High-temperature treatment (300–400°C inlet) achieves the hardness required for automated blending systems while preventing caking during bulk storage.

Bio-Organic Manure Processing

Specially designed lifting plates prevent wall-sticking when drying poultry/livestock waste. Lower outlet temperatures (<65°C) preserve beneficial microbial colonies while eliminating pathogens, meeting organic certification standards.

Industrial Sludge & Mineral Fertilizer Manufacturing

Heavy-duty shells withstand acidic/alkaline materials from mining operations. Integrated dust collection (cyclone + bag filter) ensures EPA compliance in heavy industrial zones processing recycled waste or mineral nutrients.

Each application benefits from customizable heating sources – coal, biomass, natural gas, or waste heat recovery – tailored to your energy infrastructure and operational costs.

Why Choose Yuxing's Industrial Dryers?

You need equipment that performs reliably in harsh production environments. Our machines deliver measurable advantages through engineering precision and field-tested designs.

Robust Corrosion Resistance

Carbon steel shells with anti-corrosive coatings withstand chemical exposure for 10–15 years. Optional SUS304/316L stainless steel upgrades available for highly acidic fertilizers.

Energy-Efficient Thermal Management

Advanced insulation maintains heat loss ratios below 5%. Combined with optimized material curtain design, this reduces fuel consumption by 15–20% compared to conventional dryers.

Automated Process Control

Siemens/Schneider PLC systems monitor inlet/outlet temperatures in real time. Automated adjustments prevent nutrient damage (keeping outlet temps <70°C) while maximizing throughput.

Flexible Customization Options

CE-compliant electrical systems, multi-voltage configurations, and OEM branding available. We adapt to your facility's specific requirements – from 380V/50Hz to 480V/60Hz standards.

Our 24/7 technical support team provides remote video guidance, ensuring your production line maintains uptime across all shifts.

​​​​​​​

Complete Production Line Integration

A standalone dryer is just one component. We offer turnkey fertilizer production solutions that streamline your entire operation.

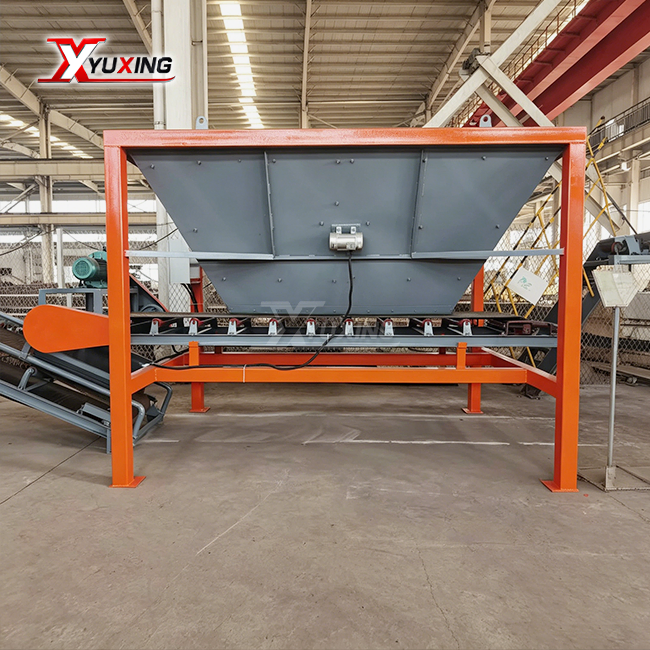

Pre-Treatment Equipment

Crushers and mixers prepare raw materials for uniform moisture distribution. Solid-liquid separators handle high-moisture manure before drying.

Downstream Processing

Cooling machines stabilize dried granules before packaging. Screening systems separate oversized particles for recirculation.

Environmental Compliance Systems

Multi-stage dust collectors (cyclone + water curtain + bag filter) capture 99.8% of particulate matter. Odor control systems available for organic fertilizer plants.

Factory Layout Optimization

Our engineers provide 3D plant designs maximizing workflow efficiency. Modular equipment arrangement allows phased capacity expansions without full-line shutdowns.

This integrated approach reduces installation time from 45 days to 20 days for standard configurations, accelerating your return on investment.

Installation & After-Sales Support

Your team receives comprehensive training to operate and maintain equipment effectively. We stay with you beyond commissioning to ensure long-term success.

On-Site Commissioning Services

Our technicians supervise installation, calibrate thermal parameters, and conduct 72-hour trial runs. Operator training covers daily maintenance protocols and troubleshooting procedures.

Lifetime Technical Assistance

Video support responds within 4 hours globally. Spare parts inventory ships within 48 hours. Annual performance audits identify optimization opportunities.

Production Optimization Consulting

We analyze your output data to recommend capacity upgrades or process refinements. Many clients achieve 10–15% throughput increases through minor adjustments.

This full-lifecycle partnership protects your investment and adapts to evolving production demands.

FAQ

Q1: How do I prevent material sticking inside the drum during organic fertilizer drying?

A: We use specialized internal scraping systems and optimized lifting plate geometry to prevent wall-sticking of high-moisture organic materials. The continuous tumbling action keeps surfaces clean.

Q2: What is the most cost-effective heat source for a product?

A: While natural gas offers the highest cleanliness, many industrial plants utilize biomass or coal-fired hot air stoves with multi-stage dust removal for lower operational costs. Your choice depends on local fuel prices and availability.

Q3: Will high-temperature drying damage the nutrient content?

A: No. By controlling the material outlet temperature below 70°C through automated PLC monitoring, we ensure nitrogen and other nutrients remain stable throughout the drying process.

Q4: What is the typical lifespan of the dryer's shell?

A: With proper maintenance and use of anti-corrosive coatings, our industrial-grade shells last 10–15 years. Heavy-duty applications may require shell inspections every 5 years.

Q5: How does the machine handle dust emissions?

A: Every unit includes a high-efficiency cyclone separator and water curtain or bag filter system to meet local EPA particulate matter requirements. We customize environmental systems to your regional standards.
