Fertilizer Cooler Machine: Industrial Rotary Cooling Solution for High-Capacity Production

When your granulated fertilizer exits the dryer at 60–80°C, effective cooling becomes the critical final step before bagging. Yuxing's YXLQ-1512 delivers robust thermal management with a production capacity of 3–5 tons per hour. Engineered with 15 meters of rotary drum length and a 1.2-meter diameter, this industrial cooler reduces granule temperature to 30–40°C through counter-current airflow technology. Powered by a 15kW motor and operating at a 3–5 degree inclination, it prevents caking, moisture re-absorption, and nutrient degradation. With over 20 years of fertilizer equipment expertise serving 50+ countries, Yuxing provides CE-certified, customizable cooling solutions backed by 24/7 lifetime technical support.

How It Works: Counter-Current Rotary Drum Technology

The working principle of our product centers on maximizing thermal exchange efficiency through intelligent design. Hot granules enter the elevated drum inlet while ambient air is drawn in from the discharge end, creating a counter-current flow pattern.

As the drum rotates at optimized speeds, internal lifting flights cascade the material through the cooling air stream. This creates a continuous "material curtain" that exposes maximum surface area to the airflow. The temperature gradient remains consistent because the coldest air meets the coolest material at the exit point.

The 3–5 degree installation angle ensures steady material advancement without product segregation. Heat transfers from granules to air, which then exits through the dust collection system. This process typically removes an additional 1–2% residual surface moisture through evaporation while bringing core temperature down to safe packaging levels within minutes.

Technical Specifications

Key Features and Advantages

Your production efficiency depends on equipment reliability under continuous operation. Our rotary cooler delivers consistent performance through several engineering advantages.

High Thermal Efficiency Design

The counter-current airflow configuration maximizes temperature gradient effectiveness. Customizable lifting flights create optimal material distribution patterns that increase air-to-granule contact time without extending equipment footprint.

Robust Construction for 24/7 Operation

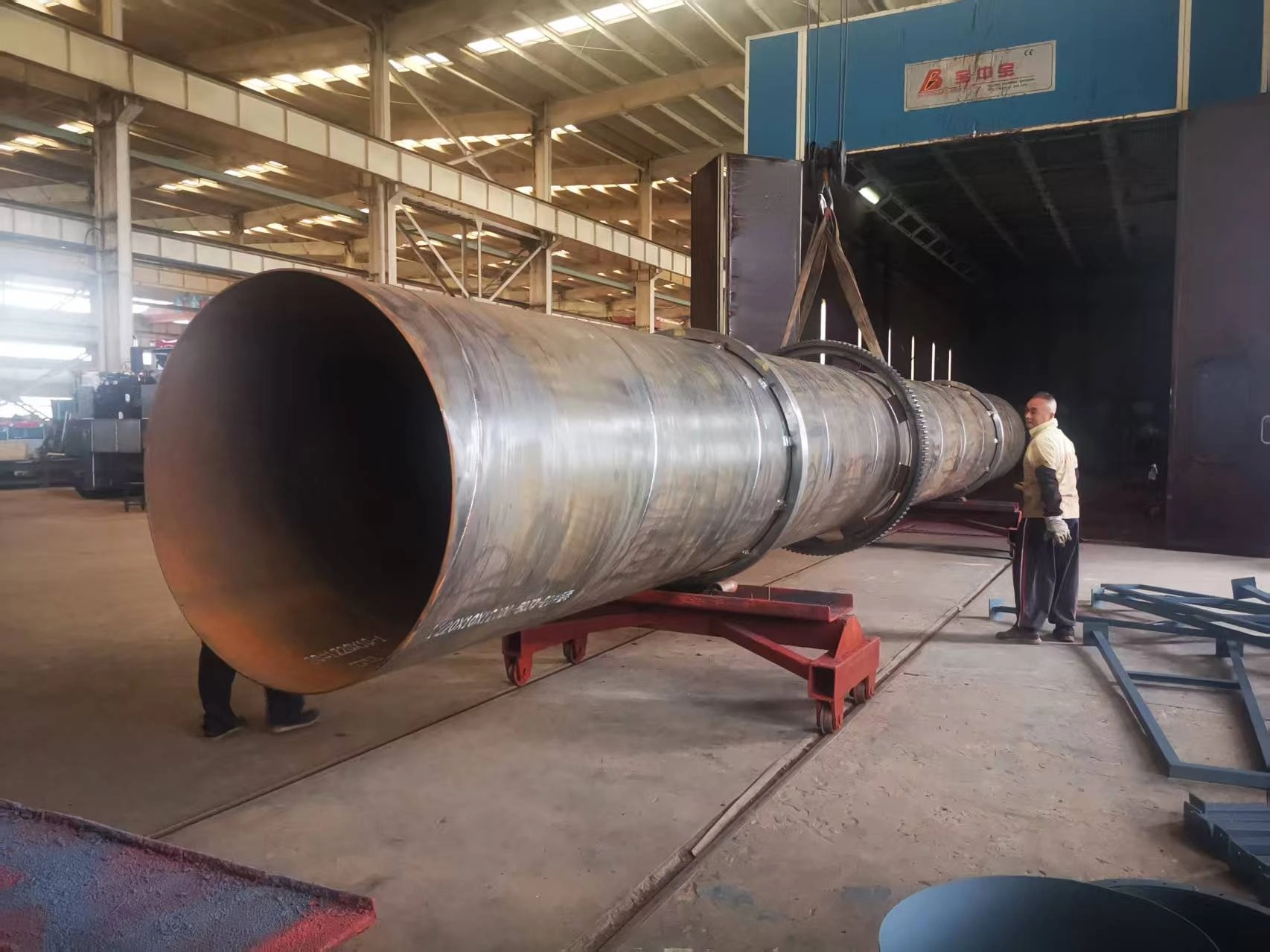

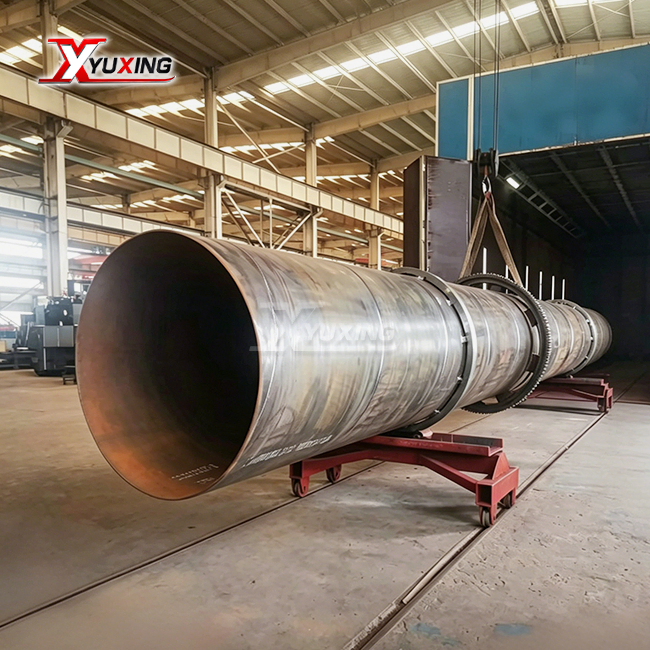

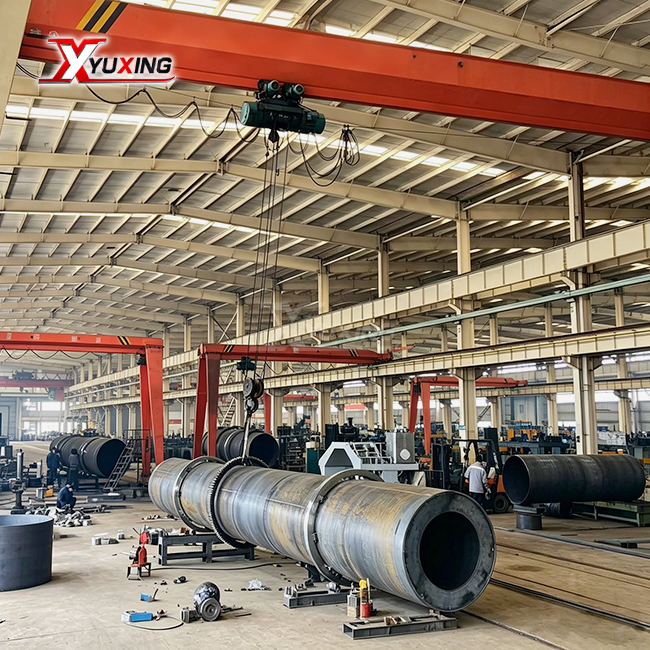

We build each unit with high-strength carbon steel or corrosion-resistant stainless steel (SS304/316) to withstand abrasive chemical fertilizers. The girth gear and pinion transmission system operates quietly while meeting stringent ISO quality standards.

Modular Customization Capability

Your voltage requirements, control systems, and capacity needs are unique. We adapt PLC controllers, integrate Siemens or Schneider components, and adjust drum dimensions to match your specific production line parameters.

Integrated Dust Management

The cooling process generates fines that require capture. Our systems couple with high-efficiency cyclone dust collectors and pulse jet bag filters to ensure environmental compliance and product recovery.

Low Maintenance Requirements

Monthly lubrication of moving parts and quarterly alignment checks of supporting rollers prevent mechanical failures. The simple yet durable design reduces downtime and extends service life beyond industry averages.

Application Scenarios

NPK Compound Fertilizer Lines

After high-temperature granulation, NPK pellets need rapid stabilization to prevent chemical structure breakdown. The fertilizer cooler machine protects complex nutrient formulations while preventing bag bursting from thermal expansion during palletized storage.

Organic Fertilizer Production

Bio-organic pellets contain beneficial microorganisms sensitive to temperature extremes. Controlled cooling preserves microbial activity while removing processing heat, maintaining the biological efficacy your customers expect.

Controlled-Release Fertilizer Manufacturing

Precision cooling before polymer or sulfur coating ensures even adhesion. Inconsistent temperatures cause coating defects that compromise release profiles. Our system maintains the tight temperature control required for premium coated products.

Bulk Blending Facilities

Even in bulk blend operations where ingredients are pre-manufactured, cooling incoming hot materials prevents segregation and caking in storage silos. This expands your raw material sourcing flexibility.

Quality Control and Performance Validation

We implement rigorous testing protocols to ensure every unit meets industrial operation demands. Dynamic balance testing eliminates vibration that causes structural fatigue. Concentricity checks of riding rings and rollers prevent uneven wear patterns.

Heat exchange validation measures inlet and outlet temperature deltas under full load conditions. We verify that performance matches design specifications before shipment. Welding integrity undergoes ultrasonic or X-ray testing on load-bearing joints to ensure durability against thermal expansion cycles.

Airflow dynamics testing optimizes pressure drop and velocity within the cooling chamber. This balances energy consumption with thermal performance while supporting efficient dust collection. Each parameter receives documented certification before your equipment leaves our facility.

Complete Production Line Integration

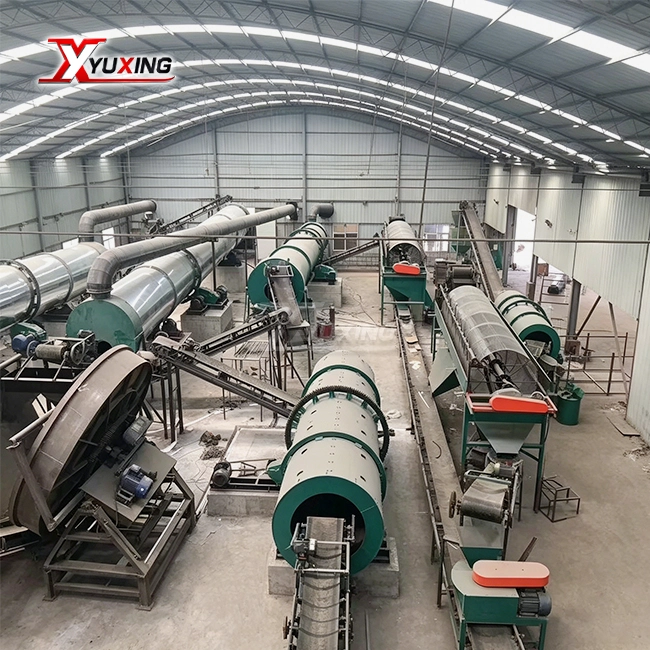

Cooling equipment doesn't operate in isolation. Yuxing provides turnkey fertilizer production solutions that integrate dryers, screeners, conveyors, and packaging systems into cohesive workflows.

Our engineering team designs plant layouts that optimize material flow and minimize handling steps. We supply microbial fermentation agents through our partnership with Shandong Baolai Lailai Group, combining hardware with biological process expertise.

From initial consultation through commissioning and operator training, you work with a single responsible partner. Standard equipment ships immediately from stock. Custom configurations deliver within 15–20 days, significantly shortening your project timeline.

Global Logistics and Customization Expertise

Exporting to more than 50 countries has refined our understanding of international shipping challenges. We optimize 40GP container loading, handle oversized equipment through open-top containers, and design modular disassembly for complex logistics scenarios.

Your local regulations receive full attention. We provide CE certification compliance, adapt electrical standards to your grid specifications, and configure multi-language HMI interfaces. OEM branding and private labeling options support your market positioning strategy.

Environmental protection system customization ensures you meet regional emission standards. Capacity adjustments and automation level modifications align equipment performance with your specific throughput requirements and labor availability.

​​​​​​​

FAQ

Q: Why is counter-current cooling preferred in a product?

A: Counter-current flow ensures the coldest air meets the coolest material at the exit, maintaining a consistent temperature gradient for maximum thermal efficiency. This configuration uses energy more effectively than co-current designs.

Q: How does the machine handle dust generated during cooling?

A: It is typically coupled with a high-efficiency cyclone dust collector and a pulse jet bag filter to capture fines and ensure environmental compliance. Recovered product returns to your process, reducing waste.

Q: Can the product also reduce moisture?

A: Yes, while primary drying happens in the dryer, the cooling process typically removes an additional 1–2% of residual surface moisture through evaporation. This contributes to final product stability.

Q: What maintenance is required for the main drive?

A: Monthly lubrication of the girth gear and pinion, along with quarterly alignment checks of the supporting rollers, is recommended to prevent mechanical failure. Our maintenance schedules minimize production interruptions.

Q: How do I choose between a rotary drum and a fluid bed cooler?

A: Rotary drum coolers are preferred for high-capacity, heavy-duty mineral fertilizers due to their robustness, while fluid bed coolers are used for specialized, heat-sensitive granules requiring gentler handling.
