compost row turner

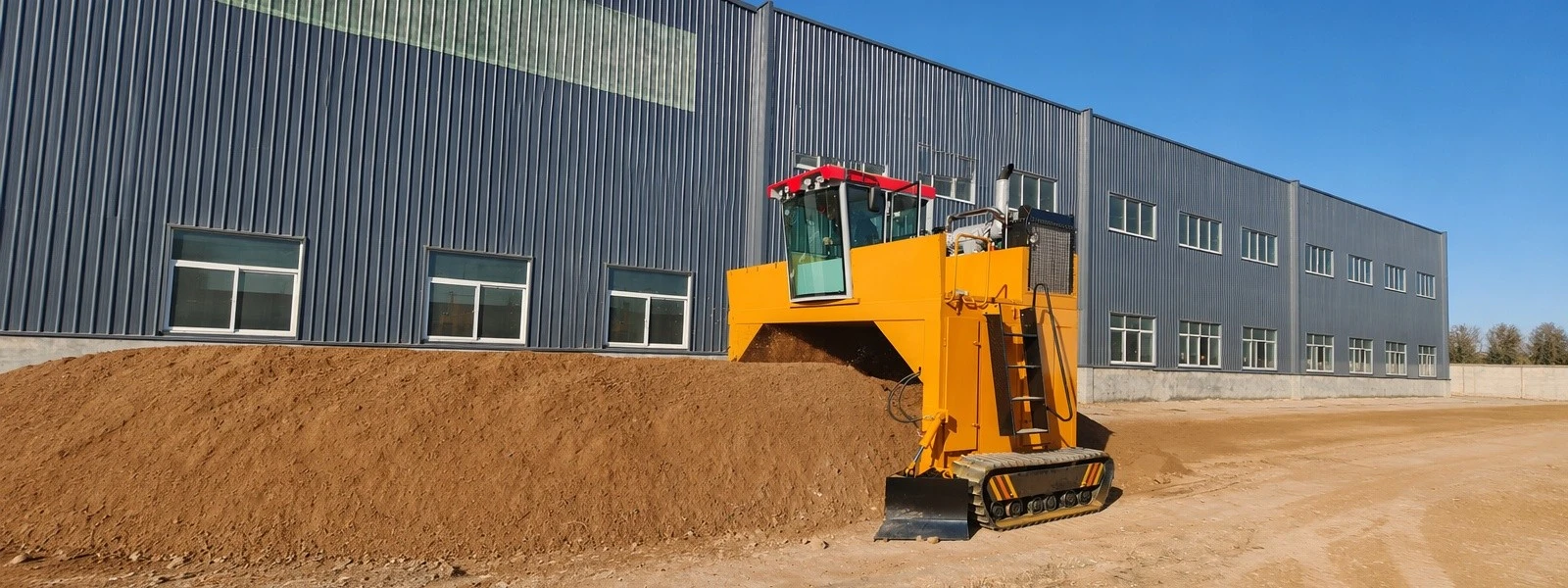

Fully Hydraulic Compost Row Turner - Industrial Grade Fermentation Solution

Henan Yuxing's YXYYFD-2600 compost row turner processes organic waste continuously at business level. A powerful 115HP engine and completely hydraulic drive system allow this industrial equipment to precisely manage pile widths up to 2.6m and heights up to 1.3m. A 10mm Q345 integrated bent steel plate main beam frame and high-pressure three-layer steel wire hydraulic hoses are mounted on an engineering-grade crawler track. The turner, weighing 3,000kg and measuring 3600×2500×2480mm, is excellent for large-scale composting operations and may be controlled remotely or manually. Yuxing assures every unit satisfies tough industrial requirements for heavy-duty fermentation conditions with 20 years of manufacturing knowledge and deployment in 50+ countries.

How It Works?

Fully hydraulic products use sophisticated mechanical aeration to turn organic waste into fertilizer. The high-speed revolving drum lifts and tosses material into the air as your machine goes down the windrow, exposing every particle to oxygen.

Tossing and mixing breaks up anaerobic pockets and replaces carbon dioxide with fresh air in the pile core. Special manganese steel alloy drum teeth penetrate compacted layers for consistent oxygen delivery even in heavy wetness.

Airborne material evaporates moisture and equalizes pile temperature. Due to material density, the hydraulic drive mechanism automatically adjusts torque to avoid jams in moist clumps or woody waste.

Travel speed and drum RPM are individually controlled by the operator for fine feedstock modification. To maintain 40-60% moisture for microbial activity, optional spray bars inject water while rotation.

Engineering-grade crawler tracks effectively distribute the 3,000kg machine weight, minimizing soil compaction and preserving grip on soft compost conditions. This continual lifting, mixing, and aerating speeds decomposition from months to 15-25 days.

Technical Specifications

Core Advantages

Superior Hydraulic Power Transmission

When turning sticky, high-moisture sludge or manure, your entirely hydraulic system produces smoother torque than gearboxes. This concept minimizes chain wear and cuts maintenance downtime by 40% over belt-driven ones.

Engineering-Grade Durability

In high-ammonia, corrosive situations, the 10mm Q345 steel plate main beam works continuously. Heat-treated components and high-pressure hydraulic hoses assure industrial composting facility dependability throughout 24/7 production.

Intelligent Control Flexibility

Operating remotely protects your operator from dust and infections while providing exact pile management. During electronic system maintenance or harsh weather, manual override mode offers backup.

Optimal Pile Size

2.6m working width and 1.3m turning height meet industry-standard windrow proportions, optimizing land use. Livestock farms, municipal waste facilities, and commercial organic fertilizer plants benefit from this 500-800-cubic-meter daily design.

Global Conformity & Customization

CE-certified parts fulfill global safety requirements. Yuxing's 20+ years of export expertise allows us to modify voltage (220V/380V/440V), connect Siemens or Schneider PLCs, and provide multi-language HMI interfaces for your market regulations.

Professional Applications

Municipal Sludge Treatment Plants

High-moisture biosolids containing sawdust or straw are processed by your wastewater plant. The compost row turner breaks up compacted layers that generate anaerobic smells and pathogen survival, even with bulk densities of 900kg/m³.

Intense livestock operations

Daily waste from poultry and cow farms is 50-200 tons and needs immediate stabilization. In high-ammonia barns, the machine's anti-corrosion coating and sealed bearings turn manure into commercial-grade organic fertilizer in 20 days.

Industrial Organic Waste Processing

Filter mud, discarded grains, and vinasse from food, brewery, and sugar mills are acidic. The turner's heavy-duty structure and high-clearance chassis handle sticky, acidic feedstocks and precise temperature control for regulatory compliance.

Making Compost Commercially

Large composters for landscaping need continuous quality. Every batch has consistent particle size and nutrient distribution due to variable drum speed and moisture control.

Quality Control & Standards

Yuxing manufactures according to ISO 9001. Each product is rigorously tested before shipment:

Building Integrity Testing

High-speed spinning drum vibrations cause premature bearing failure. Dynamic balance checking removes them. Frame stress research shows the 10mm Q345 steel plate can handle 30% more peak loads than operational maximums.

Validating Hydraulic Systems

Pressure leakage tests at 1.5x working pressure verify seals and hoses withstand moist, heavy material. Gearbox temperature and torque transmission efficiency are monitored during 48-hour full-load running tests in realistic field circumstances.

Verifying Blade Durability

Turning teeth pass HRC 45-52 abrasion testing using Rockwell hardness. Municipal trash streams contain stones and metal pollutants, which impact testing simulates.

Assessment of corrosion resistance

Acidic decomposition gas-exposed equipment needs salt spray chamber testing for paint thickness and adherence. Anticorrosion treatments surpass 500-hour exposure.

FAQ

Q: How does the turner prevent anaerobic conditions in large piles?

A: The high-speed drum lifts and throws material in a cascading pattern, creating air pockets throughout the pile core. This mechanical action replaces CO2 with fresh O2, maintaining aerobic microbial activity even in 1.3m-high windrows.

Q: What moisture range can this machine effectively process?

A: Your YXYYFD-2600 operates optimally at 40-60% moisture content. For wetter feedstocks, reduce travel speed and perform multiple passes to facilitate evaporation through extended air exposure.

Q: Can the turner handle frozen material in winter climates?

A: Yes, the 115HP engine provides sufficient torque to break surface crusts. We recommend pre-heating hydraulic fluid to -10°C operating temperature and installing optional heated cab enclosures for operator comfort.

Q: How long do the turning teeth last before replacement?

A: Blade lifespan ranges from 800 to 1,500 operating hours depending on feedstock abrasiveness. Sand-heavy poultry manure requires more frequent replacement than pure plant residues. We supply OEM-grade wear parts with expedited global shipping.

Q: What maintenance schedule does Yuxing recommend?

A: Daily: Check hydraulic oil levels and inspect teeth for damage. Weekly: Clean air filters and lubricate track bearings. Monthly: Replace hydraulic oil filters and tighten frame bolts. Annual: Full hydraulic system flush and bearing replacement.

Contact Us

Ready to optimize your composting operation with compost row turner? Yuxing provides complete support from planning to production:

• Request Production Line Solution
• Request Plant Layout
• Download Catalog
• Get Turnkey Quotation

Reach our engineering team at yuxing@hnyxmachinery.com for customized configurations and technical specifications tailored to your facility requirements.
