Axe Type Windrow Turner: Industrial-Scale Composting Solution for High-Volume Organic Waste Treatment

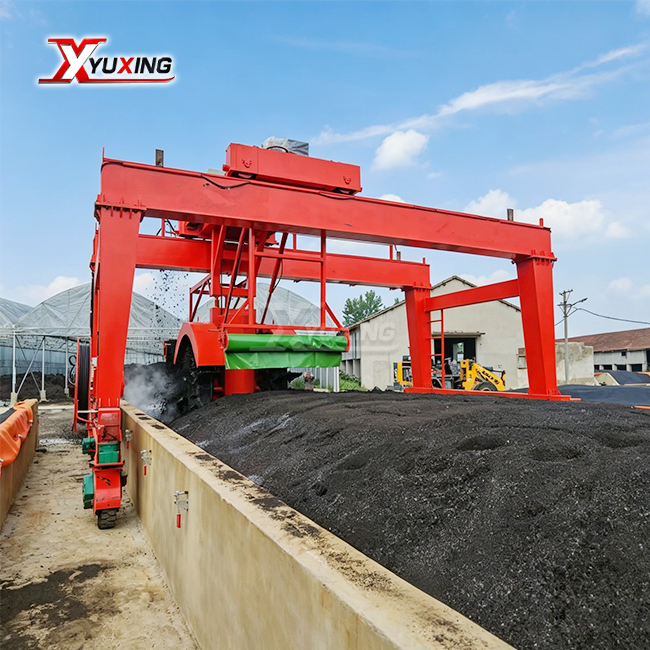

When organic waste processing demands peak efficiency, the Axe Type Windrow Turner from Henan Yuxing Intelligent Equipment delivers unmatched performance. With over 20 years of field-proven engineering excellence, our large-span disc compost turner handles 200-450m³/h capacity across a 15-meter working span. The heavy-duty 37kW main turning power drives dual 2200mm diameter discs through composting depths of 1.3-1.8 meters, while the PLC total control system ensures precision operation. Our reinforced 15250×400×600mm main beam structure withstands continuous industrial workloads, serving thousands of customers across 50+ countries who trust Yuxing for reliable, high-output organic fertilizer production equipment.

How It Works: Advanced Aeration and Material Displacement Technology

The operational principle of our system combines mechanical agitation with thermodynamic efficiency to accelerate aerobic decomposition. The dual-disc configuration rotates at variable speeds, with specialized cutting geometry that slices through compacted organic materials.

As the main unit travels along reinforced rail wheels at approximately 5m/min, the rotating discs turn windrow materials at 10m/min. This dual-motion system displaces approximately 3 meters of material per pass, ensuring thorough oxygen penetration throughout the composting depth.

The 44kW total power system drives four independent compost turning travel motors (0.8kW each), creating a churning action that breaks anaerobic pockets. The 2.2kW lifting mechanism adjusts disc height with 0.2-0.5m forward-backward precision, adapting to varying material densities. Heat generated by microbial activity reaches thermophilic temperatures that destroy pathogens while the continuous turning prevents heat loss, maintaining optimal 55-65°C fermentation conditions.

Technical Specifications: Industrial-Grade Performance Parameters

Key Advantages: Why Industrial Operators Choose Our Equipment

Your composting operation faces constant pressure to increase throughput while controlling costs. Our large-span design covers more fermentation area with fewer machines, dramatically reducing your equipment investment and labor requirements.

The reinforced internal plate structure within the main beam ensures decades of reliable service in harsh composting environments. You won't experience the downtime that plagues lighter-duty equipment. Our Qilu standard spray painting process applies multiple protective layers—anti-corrosion paint, anti-rust primer, topcoat, and clear coat—extending equipment life even when exposed to highly acidic and alkaline gases.

The PLC total control system offers button operation, remote control, and automatic operation modes with adjustable speed settings. This flexibility lets you optimize processing based on material characteristics without manual intervention. Overload, overcurrent, and phase loss protection safeguards your investment against electrical failures.

With Chint low voltage components throughout, you benefit from industrial-grade reliability that matches international electrical standards. The cable reel length adapts to your actual site layout, eliminating costly facility modifications.

Applications: Proven Solutions Across Diverse Organic Waste Streams

Our equipment excels in industrial-scale livestock manure processing facilities where high-volume poultry or swine waste requires rapid pathogen destruction. The powerful disc action breaks down clumped solids, ensuring uniform moisture distribution critical for consistent fertilizer quality.

Municipal sewage sludge co-composting operations rely on our Axe Type Windrow Turner to blend wet sludge with bulking agents like wood chips or straw. The 37kW turning power overcomes high viscosity that stalls conventional equipment, preventing anaerobic fermentation and associated odor complaints.

Large agricultural residue processing facilities use our turner for sugar mill filter mud, mushroom substrate spent compost, and other fibrous materials. The robust construction handles abrasive inorganic contaminants that would rapidly wear lighter equipment. Commercial organic fertilizer plants serving agricultural markets achieve faster fermentation cycles—reducing processing time from months to weeks—thanks to superior oxygen penetration throughout the 1.3-1.8 meter composting depth.

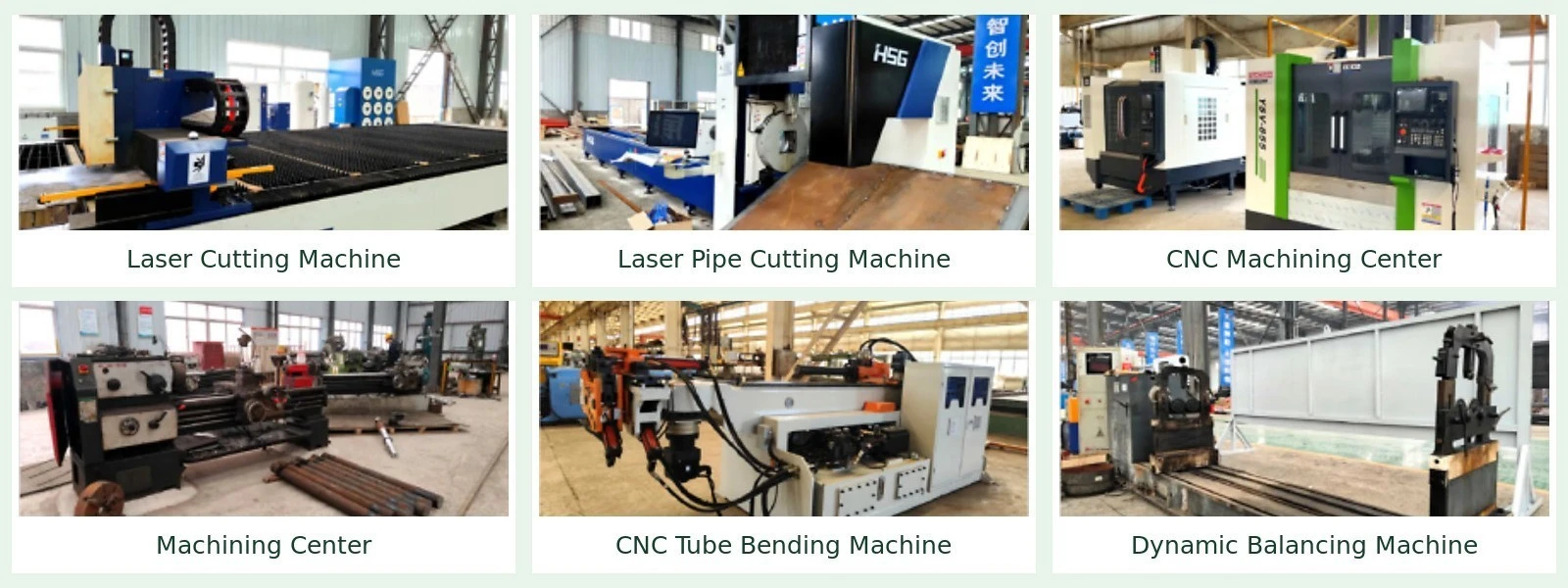

Quality Control: Manufacturing Standards That Guarantee Long-Term ROI

Every unit undergoes rigorous factory testing before shipment. Our dynamic balance testing ensures the rotor meets G2.5 level standards, preventing vibration-induced structural fatigue that causes premature failure.

The disc assemblies receive ultrasonic hardness verification to confirm HRC 50-55 wear resistance against abrasive materials. We conduct 24-hour hydraulic system pressure decay tests, guaranteeing zero-leakage performance under maximum load conditions. Salt spray testing on the chassis validates corrosion resistance against the demanding composting environment.

All equipment passes authoritative testing by Chinese technical and quality supervision bureaus. Our compost turners hold special qualification certification for agricultural machinery subsidies from provincial agricultural machinery appraisal stations—verification of superior engineering that government agencies trust.

Comprehensive Support: From Planning to Production Optimization

You receive more than equipment—you gain a partnership for project success. Our engineering team provides factory planning and process design based on your specific waste streams and production goals. We offer installation guidance, commissioning support, and operator training to ensure your team maximizes equipment capabilities.

Remote video guidance resolves operational questions quickly, minimizing downtime. Our global spare parts supply network keeps your operation running, with 24/7 technical response available across all time zones. As your production scales, we provide capacity upgrade consultation and process optimization recommendations.

Standard equipment ships immediately from stock. Customized configurations—adapted to your voltage standards, control preferences, or special environmental requirements—deliver within 15-20 days. Our export logistics expertise includes 40GP container optimization, open-top transportation for oversized components, and modular disassembly solutions that reduce international shipping costs.

FAQ

Q: What maintenance schedule does this equipment require?

A: Routine inspection every 200 operating hours includes lubrication points and belt tension checks. Disc bearing replacement typically occurs at 2,000-3,000 hours depending on material abrasiveness. Our design prioritizes accessibility—most service tasks complete in under two hours.

Q: Can the system integrate with existing fermentation infrastructure?

A: Yes, the cable reel length adjusts to your site layout, and our engineering team customizes the track configuration to fit existing trough dimensions. The PLC system interfaces with facility management software through standard industrial protocols.

Q: How does performance vary with different material moisture content?

A: Optimal operation occurs at 40-65% moisture content. The powerful disc action helps shed excess moisture in materials up to 75%, though throughput may decrease slightly. For drier materials below 35%, we recommend pre-moistening to prevent dust generation.

Q: What power supply requirements must facilities meet?

A: Standard configuration uses three-phase power at voltages adaptable to regional standards. The 44kW total load requires approximately 60A at 380V. We customize electrical specifications including Siemens or Schneider components for international projects requiring CE certification.

Q: How quickly can we expect return on investment?

A: Most operations achieve payback within 18-24 months through increased throughput, reduced labor costs, and faster fermentation cycles. The large 15-meter span processes more material per pass than multiple smaller units, significantly lowering operational expenses while the robust construction minimizes replacement costs over the equipment's multi-decade service life.
