Disc Type Compost Turner: Industrial-Scale Aerobic Fermentation Solution

Yuxing's Disc Type Compost Turner represents over 20 years of engineering expertise in high-capacity organic waste processing. This bridge-style aerobic fermentation equipment achieves remarkable turning depths of 1.5-3.5m and customizable working widths from 6-30m, maximizing land efficiency for industrial operations. With a powerful 22-110kW main turning system and hydraulic lifting capability, it processes large volumes with 30% less energy consumption than conventional wheel-type units. The equipment features remote control operation via mobile phone and computer, automated travel at approximately 10m/min, and precision material conveying distances of 2-4m. Designed for continuous operation in demanding environments, it eliminates anaerobic dead zones while maintaining consistent nutrient profiles across your entire compost pile.

How It Works?

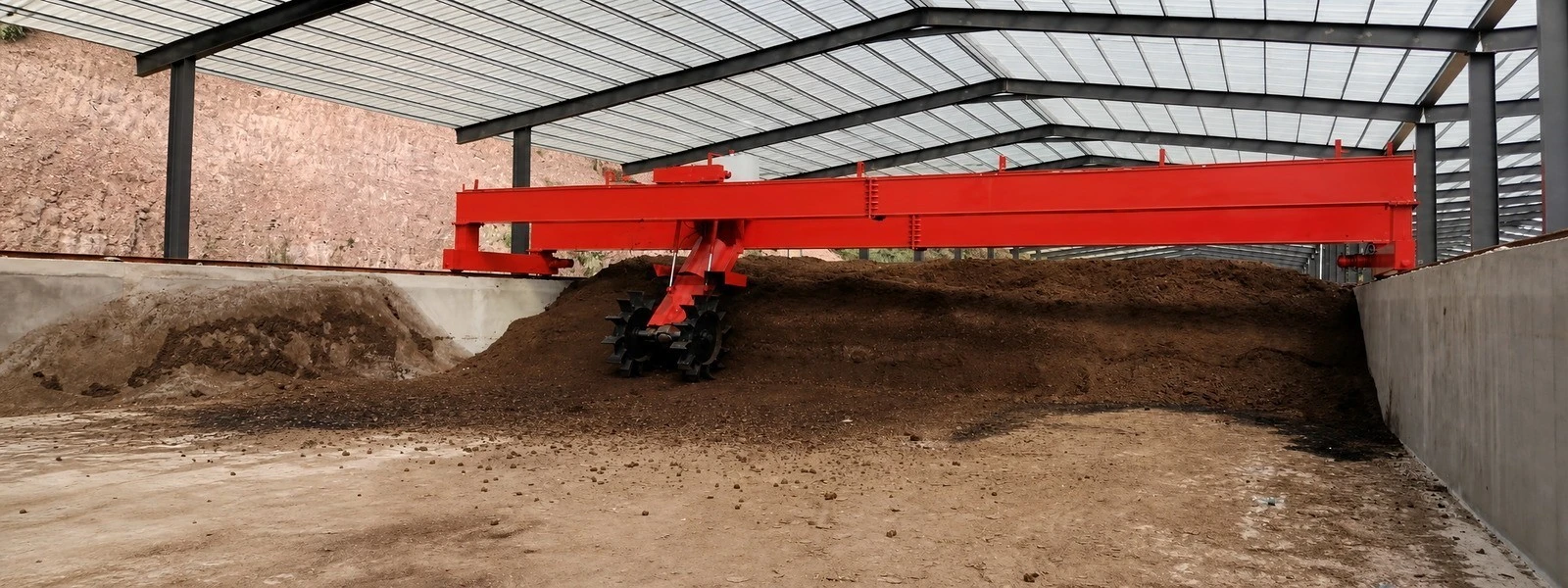

The working principle of this industrial compost turner revolves around a rotating disc mechanism mounted on a bridge-style gantry structure. As the equipment travels along pre-built fermentation trenches, the large-diameter discs (2.2-3.6m) rotate to lift material from the bottom layers.

The lifted organic material undergoes simultaneous aeration and displacement. Heavy-duty alloy steel teeth attached to the disc surfaces penetrate deep into the pile, breaking up compacted zones and introducing fresh oxygen throughout the mass.

Material conveying occurs automatically as the discs rotate. Composted material moves 2-4m forward with each pass, creating a continuous flow pattern that ensures uniform fermentation across your entire operation.

The hydraulic lifting system adjusts working depth in real-time based on pile height and material density. This adaptability prevents overloading while maintaining optimal contact between turning components and your feedstock.

Your operation benefits from variable frequency drive (VFD) technology that regulates travel speed and disc rotation independently. This precision control allows you to match processing intensity to specific material characteristics, whether handling viscous municipal sludge or fibrous livestock manure.

Technical Specifications

Key Advantages for Your Operation

Your fertilizer production gains significant competitive advantages through this equipment's enterprise-level design. The low power-to-volume ratio directly reduces your operational costs compared to traditional chain-plate systems.

You achieve superior fermentation uniformity because the deep-penetrating disc action eliminates the anaerobic dead zones that compromise product quality in shallow-turning equipment. This consistency translates to reliable nutrient profiles that meet strict agricultural standards.

The Disc Type Compost Turner handles high-moisture feedstocks without clogging, a critical capability when processing poultry manure or dewatered municipal sludge. Conventional turners often require additional drying steps that this system eliminates through superior material management.

Your maintenance costs decrease substantially due to fewer moving parts in direct contact with corrosive fermentation material. The bolt-on wear teeth allow rapid field replacement without specialized welding equipment, minimizing downtime.

Remote monitoring via mobile phone and computer integration gives you complete operational visibility from anywhere. The PLC automation system manages travel, turning, and repositioning without manual intervention, freeing your workforce for higher-value tasks.

Applications Across Industries

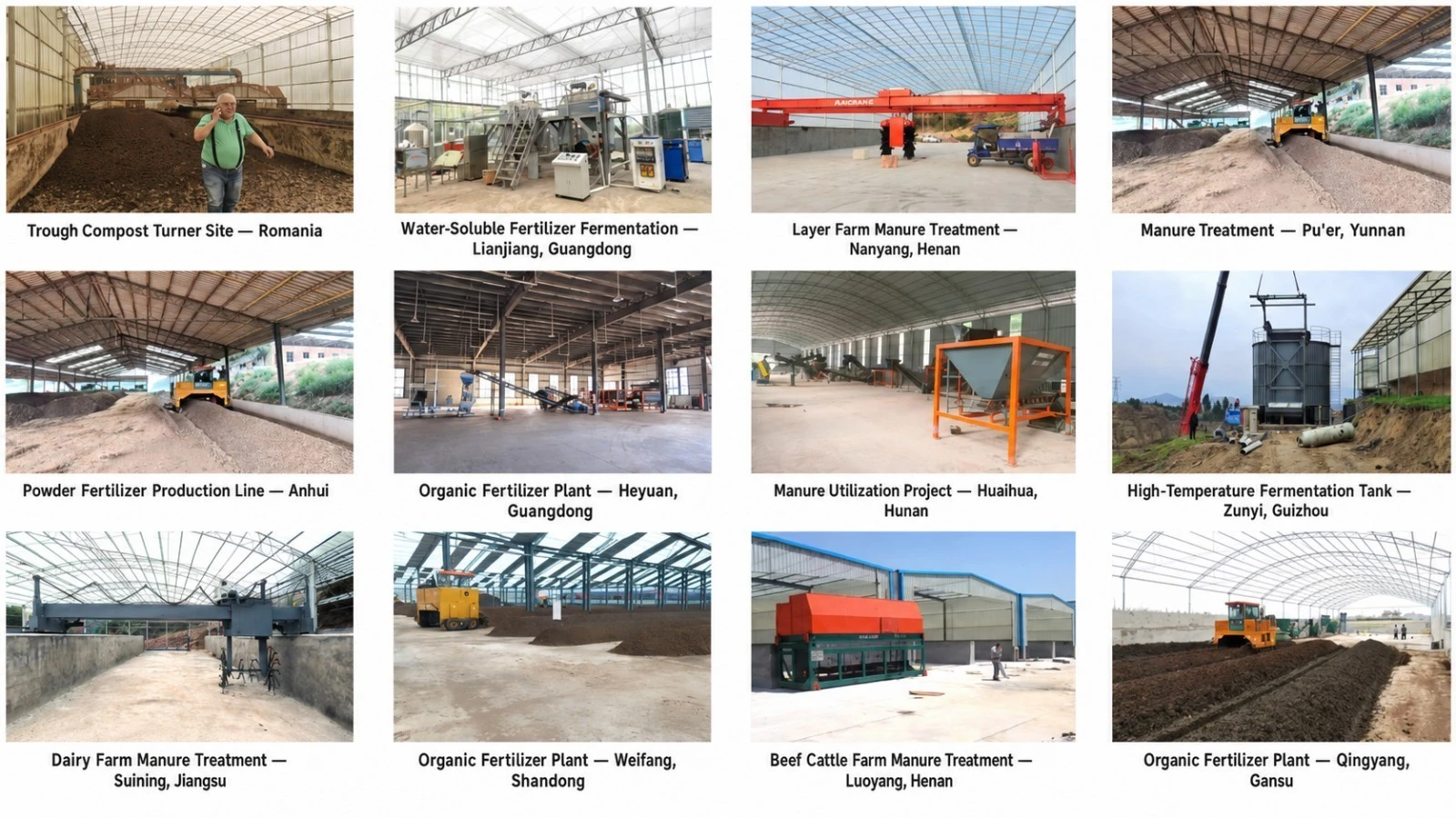

Large-scale organic fertilizer plants processing over 100,000 tons annually rely on this equipment for consistent production output. Your operation benefits from the same proven technology serving major poultry, pig, and cattle operations worldwide.

Municipal sludge treatment facilities choose this turner for its ability to process viscous dewatered sludge mixed with bulking agents. The deep-pile aeration ensures pathogen destruction meets regulatory requirements while accelerating decomposition cycles.

Sugar mills and paper manufacturers utilize this system to manage high-volume filter mud and organic residues. The corrosion-resistant structural coatings and heavy-duty drive components perform reliably in chemically aggressive environments common to industrial waste streams.

Composting centers serving agricultural communities benefit from the equipment's adaptability to diverse feedstocks. You can process chicken manure, cow dung, pig manure, sheep manure, and mixed organic waste without equipment modifications.

Quality Assurance Standards

Structural weld integrity undergoes ultrasonic testing on all main bridge girders to ensure load-bearing safety across wide spans. This quality control prevents catastrophic failures under continuous operational stress.

Dynamic balance testing on each disc assembly eliminates vibration that causes premature bearing failure. Your equipment maintains precision operation throughout its extended service life.

Hydraulic system components pass pressure testing under simulated maximum load conditions. Motors undergo thermal load testing during continuous operation cycles to verify cooling system adequacy.

Material specification verification includes hardness testing of turning teeth to confirm they meet abrasive resistance requirements. This ensures consistent performance when processing materials containing sand, stones, or other abrasive elements.

PLC logic validation tests all automated functions including return-to-base sequences and obstacle-sensing safety protocols. These systems comply with international machinery safety standards protecting both operators and equipment.

​​​​​​​Customization for Global Markets

Your international operation receives complete adaptation to local standards through Yuxing's ODM/OEM capabilities. CE certification and voltage adjustments ensure regulatory compliance in European, American, and Asian markets.

Electrical components from Siemens or Schneider integrate according to your specifications. The PLC system supports multi-language HMI interfaces for simplified operator training in your local workforce.

Environmental protection systems customize to regional air quality and noise regulations. You receive equipment that passes local inspections without costly post-delivery modifications.

Capacity scaling adjusts from small demonstration projects to massive industrial installations. The modular design philosophy allows expansion as your production volume grows.

FAQ

Q: What turning depth advantage does this system provide?

A: This equipment reaches 3.5m depth, more than double the 1.5m limitation of conventional turners. This capability dramatically increases your per-acre processing capacity.

Q: How does maintenance compare to chain-plate designs?

A: You'll experience 40-60% longer service intervals because fewer components contact corrosive material directly. Replacement parts install quickly without specialized tools.

Q: Can your existing facility integrate this system?

A: The equipment adapts to standard fermentation trench dimensions. Yuxing's engineering team provides factory layout optimization to maximize your current infrastructure.

Q: What automation level comes standard?

A: Full unmanned operation includes automatic travel, position sensing, and cycle completion. Override controls remain available for manual intervention when needed.

Q: How quickly can wear parts be replaced?

A: Bolt-on teeth replacement takes approximately 2-3 hours using standard hand tools. You maintain spare inventory without significant capital investment.
