Self-propelled compost turner

Self-Propelled Compost Turner: Industrial Aerobic Fermentation Solution

Henan Yuxing Intelligent Equipment Co., Ltd. brings over 20 years of specialized fertilizer equipment manufacturing expertise to deliver our flagship Self-propelled compost turner – a high-performance mobile fermentation system engineered for large-scale organic waste processing. This industrial-grade machine features a 20m span width with 37kW main turning power, processing 200-450m³/h of organic materials at depths of 1.2-1.8m. With PLC total control and intelligent speed adjustment, our turner reduces fermentation cycles from months to just 15-20 days while maintaining optimal oxygen distribution.

Equipped with dual 2200mm diameter discs and manganese steel turning components, this product operates continuously across wide fermentation troughs, covering more area with fewer machines to dramatically lower labor and equipment investment for commercial composting facilities.

How It Works: The Science Behind Efficient Composting

Our precision-engineered self-propelled system uses three-phase aerobic fermentation to turn organic waste into premium fertilizer.

Phase 1: Material Oxygenation/Agitation

Its high-speed spinning discs penetrate 1.2-1.8m into compost piles and cross 20-meter windrows. Reinforced rotating blades lift, mix, and redistribute materials at 10m/min. This "chimney effect" draws oxygen into the pile's core and releases CO2 and moisture.

Phase 2: Heat and Humidity Control

Turning disintegrates thick anaerobic zones where temperatures stagnate. Adding air to new material surfaces stimulates microbial activity, elevating core temperatures to 60-70°C, ideal for pathogen removal and quick breakdown. Dry and wet zones are well blended at 1.0-3.0m, minimizing fermentation-slowing moisture pockets.

Phase 3: Particle Size Reduction

Each pass, heavy-duty disc blades smash clumps and woody debris, boosting microbial colonization surface area. Compared to static pile techniques, mechanical breakdown and continuous aeration minimize fermentation time by 40-60%.

When entering denser material zones, the PLC control system adjusts travel speed according on torque loads. Operators can choose button control, remote control, or completely automatic mode based on site needs.

Technical Specifications: Built for Industrial Demands

Key Advantages: Why Choose Yuxing's Composting Solution

Maximum Coverage, Minimum Investment

One 20-meter span equipment can process huge fermentation troughs, reducing the need for many smaller devices. Low capital outlay, cheaper maintenance costs, and simpler team operating training.

Durability Under Extreme Conditions

A strengthened internal partition beam construction and 16mm thick disc main plates allow the equipment to endure prolonged high-vibration operation in corrosive ammonia-rich composting atmospheres. Qilu regular spray painting provides many rust and chemical protection layers.

Smart Automation for Labor Efficiency

The PLC automatically optimizes speed based on material density. Your personnel can remotely monitor and alter settings, eliminating manual oversight. Overload protection protects production plans against unexpected stoppages.

Fast Deployment, Short ROI

Stocked standard models ship immediately. After purchase confirmation, custom configurations arrive in 15-20 days. Our established supply chain and simplified production processes let you start operations weeks before competitors utilizing traditional equipment providers.

Global Conformity and Customization

Our CE and ISO-certified Self-propelled compost turner supports worldwide electrical codes (Siemens/Schneider components), multi-language HMI interfaces, and region-specific voltages. We support OEM and private labeling for distributors entering new markets.

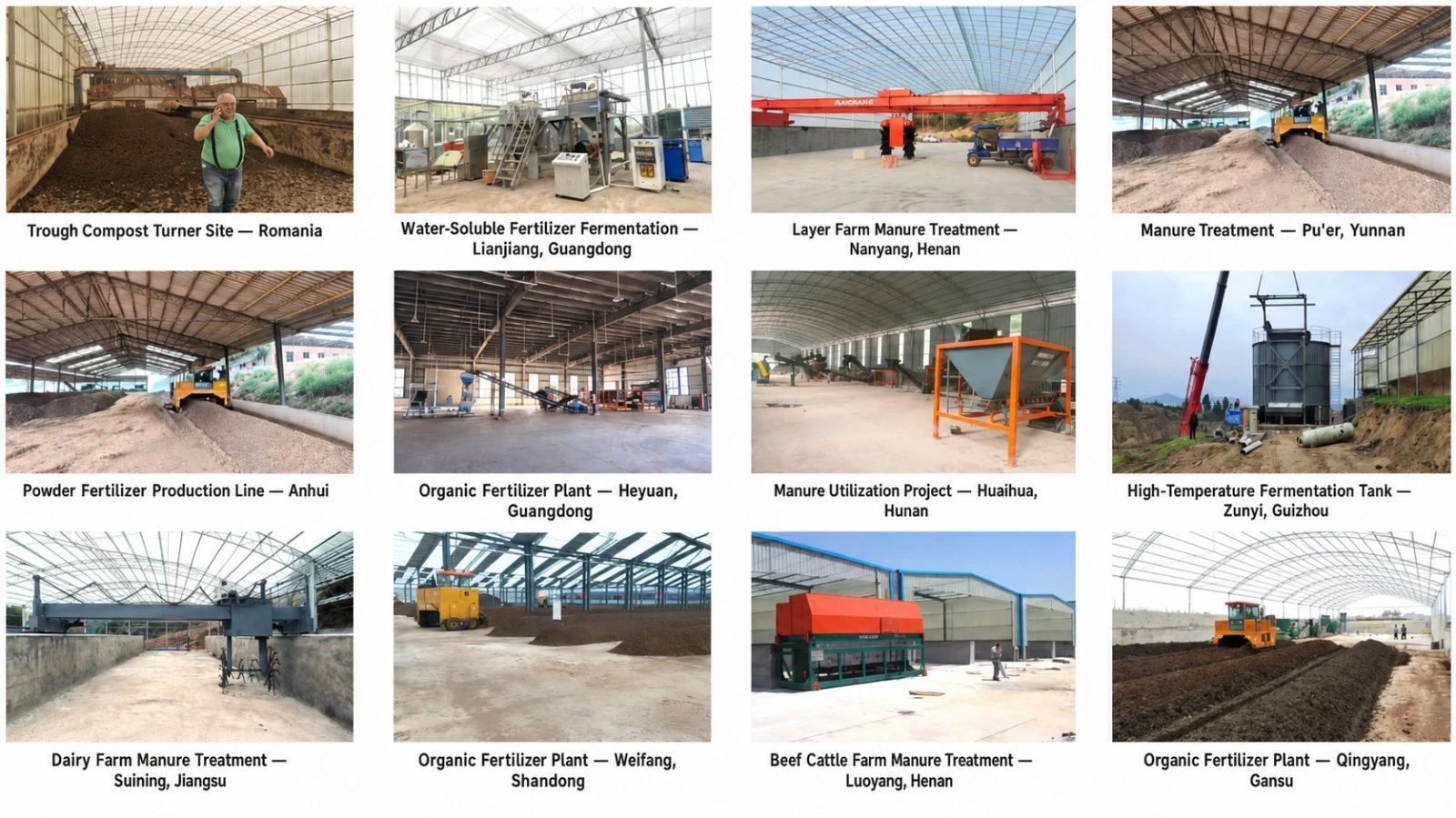

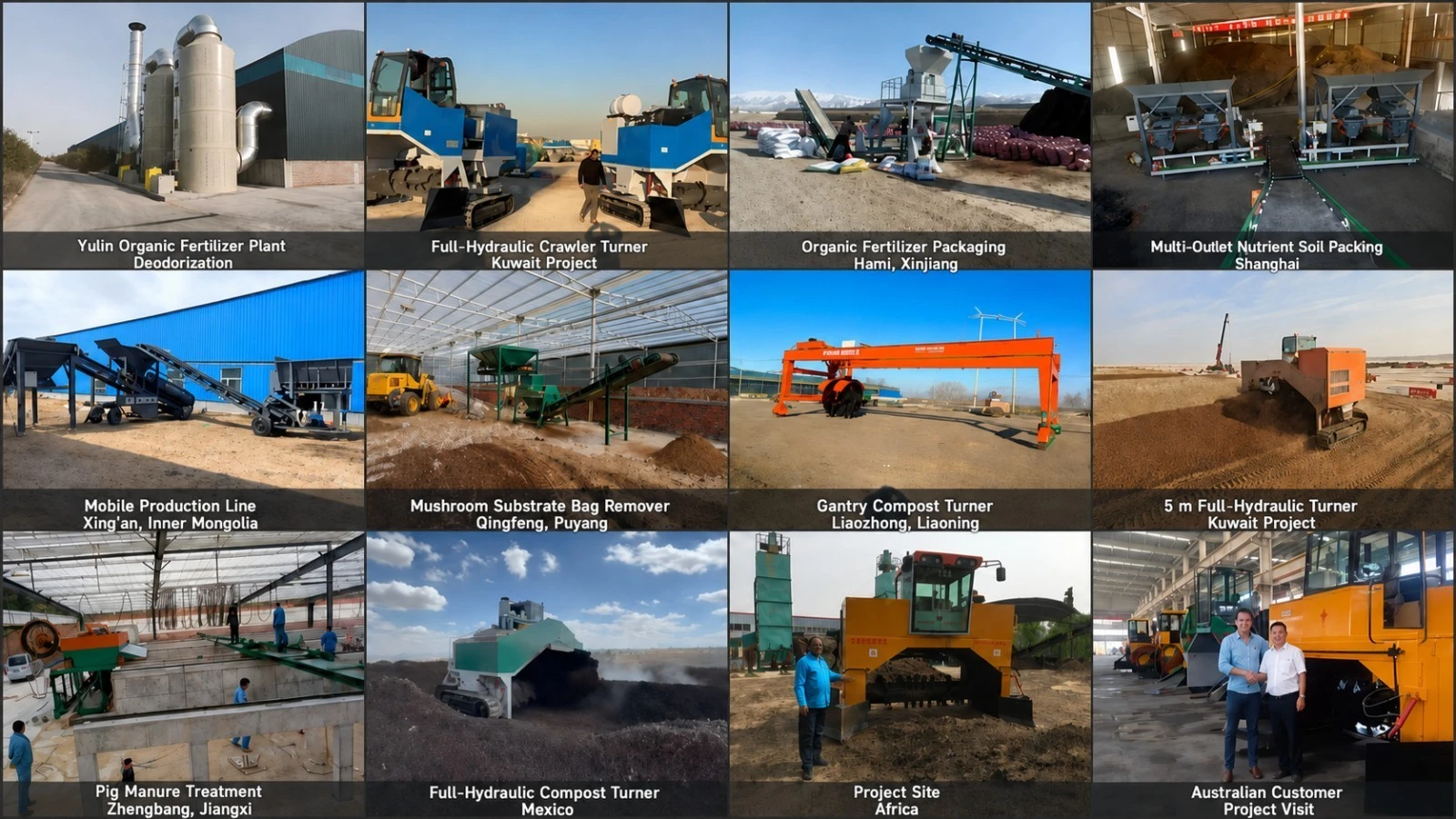

Real-World Applications: Solving Industry-Specific Challenges

Big Livestock Operations

Traditional technologies struggle to manage massive manure quantities from intensive livestock and pig farms within tight regulatory periods. Even in tight spaces, our self-propelled device turns high-moisture bedding and waste combinations into pathogen-free fertilizer.

Municipal Organic Waste Facilities

Urban bio-waste facilities with heavy sewage sludge need clump-breaking equipment. High-torque spinning discs minimize anaerobic pockets and promote homogeneous decomposition of food scraps, yard trash, and biosolids.

Processing Agricultural Waste

The machine's uneven terrain capability benefits farms handling agricultural wastes, mushroom substrate, and vineyard trimmings. The crawler-type design enables low ground pressure stability on dirt or gravel pads without paving.

Cleaning Up the Environment

Bio-remediation agents must be mixed in high volumes for contaminated soil treatment. The precise disc action distributes agents evenly, and the self-propelled design permits operation in distant areas where towing is impossible.

Quality Assurance: Engineering Standards You Can Trust

Every unit undergoes rigorous inspection protocols before shipment:

Dynamic Balance Testing: High-speed drum rotation is verified to prevent centrifugal vibration that causes frame fatigue over time.

Hydraulic Pressure Retention: Systems are tested to 25MPa peak loads with zero-leakage tolerance, guaranteeing consistent lifting and rotation power throughout the machine's service life.

Blade Hardness Verification: Heat-treated turning teeth are measured at 45-52 HRC to ensure they withstand abrasive organic materials without premature wear.

Transmission Efficiency Audits: Gearbox output is monitored to minimize power loss between the motor and turning components, maximizing fuel efficiency and throughput.

Our collaboration with Shandong Baolai Lailai Group – a global leader in microbial innovation – provides integrated fermentation agent support and comprehensive technical guidance for optimizing your specific material composition.

Comprehensive Support: Your Success Is Our Priority

Yuxing delivers lifetime technical assistance across every project phase:

• Pre-Installation Planning: Factory layout design, trough dimensioning, and electrical infrastructure consultation tailored to your site constraints.
• Commissioning and Training: On-site technician support for setup, operator certification, and troubleshooting protocol establishment.
• 24/7 Remote Assistance: Video-guided diagnostics and real-time performance optimization to resolve issues without costly downtime.
• Spare Parts Supply: Maintained inventory of critical components including turning blades, hydraulic seals, and electrical modules for rapid replacement.
• Capacity Upgrades: Process consulting to scale production as your operation grows, leveraging data from over 20 years of field experience across 50+ countries.

Our robust after-sales network has supported thousands of domestic and international clients, from small organic farms to multi-national fertilizer producers.

FAQ

Q: How does the turner handle materials with moisture content above 60%?

A: The high-speed disc agitation accelerates steam release during turning. For extremely wet feedstocks, we can integrate a liquid spray system that introduces dry biological starters directly into the windrow during the mixing process, rapidly adjusting moisture balance.

Q: What is the typical maintenance schedule for turning blades?

A: Inspect blades every 50 operating hours for wear or damage. Manganese steel blades generally require replacement after 800-1,200 hours, though this varies based on material abrasiveness and operating conditions.

Q: Can the machine operate on unpaved or uneven surfaces?

A: Yes. Crawler-type configurations are specifically engineered with low ground pressure distribution for stable operation on soil, compacted gravel, or uneven terrain without requiring permanent paving.

Q: How does the equipment ensure consistent aerobic conditions throughout the pile?

A: The disc blade configuration creates turbulent airflow that draws fresh oxygen into the windrow core while simultaneously venting CO2 and methane. This "chimney effect" maintains aerobic microbial activity even in deep pile sections.

Q: What safety features are included as standard?

A: All units include emergency stop systems, overload protection, hydraulic lockout valves to prevent disc drop during maintenance, and optional ROPS-certified operator cabins for enhanced workplace safety compliance.

Contact Us

Ready to transform your organic waste processing capabilities with Self-propelled compost turner? Our engineering team is standing by to design a customized solution for your specific requirements.

Choose your next step:

• Request Production Line Solution – Complete system design for your facility

• Request Plant Layout – Optimized space planning and workflow integration

• Download Catalog – Full technical specifications and configuration options

• Get Turnkey Quotation – Comprehensive pricing for equipment, installation, and training

Reach us at yuxing@hnyxmachinery.com to begin your consultation.
