Fertilizer Compost Turner - Professional Organic Waste Treatment Solution

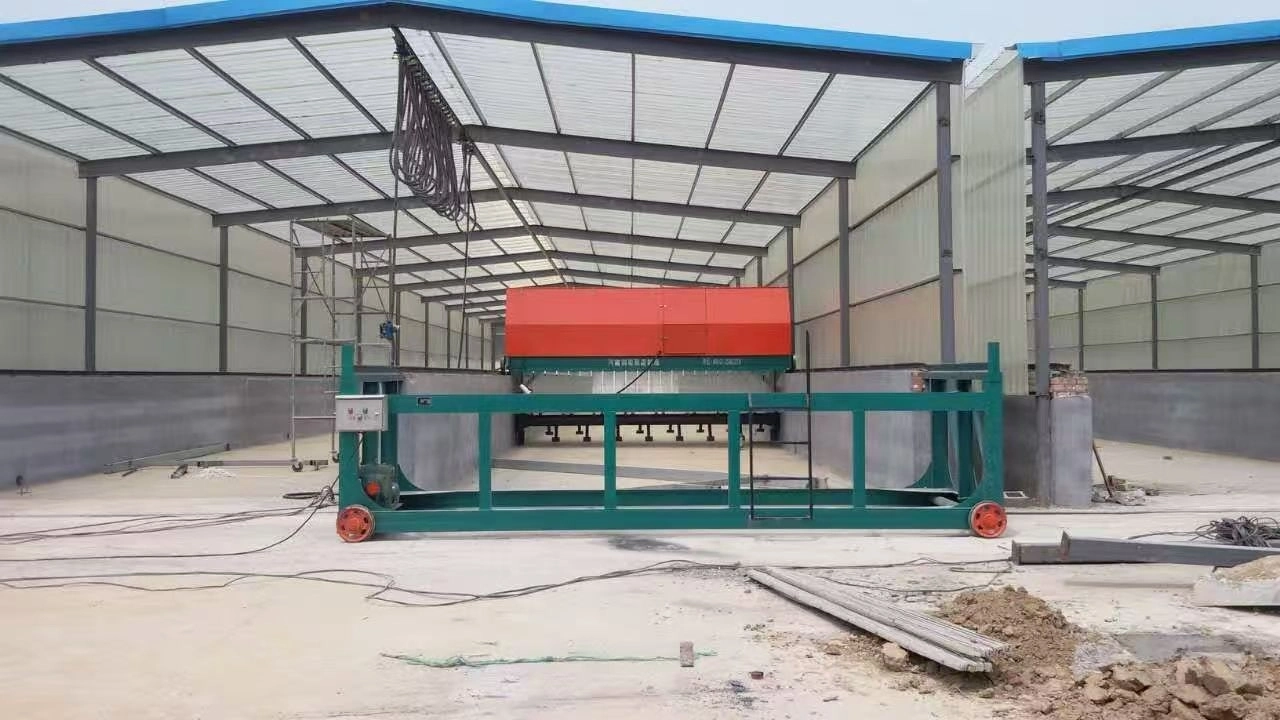

The YXFP-6000 Fertilizer Compost Turner, developed with over 20 years of industry experience, is presented by Henan Yuxing Intelligent Equipment Co., Ltd. This single-machine compost turner produces in excess of 200m³/h over numerous fermentation troughs. With twin 30kW main motors and customizable travel speed (0.3-3.0m/min), it processes organic trash at 0.8-1.2m turning heights and 6000mm center-to-center span. The integrated hydraulic lifting system, remote control, and multi-trough transfer function maximize site usage and reduce equipment investment. This CE- and ISO-certified system treats animal waste and municipal sludge.

How the Fertilizer Compost Turner Works?

The process uses mechanical aeration and sophisticated material management. Heavy-duty manganese steel blades lift and tumble organic material in the fermentation trough to supply oxygen.

This constant rotating breaks up compacted areas and distributes moisture across the windrow. Even with thick materials like sewage sludge or high-moisture manure, the dual-motor drive system maintains torque.

The hydraulic lifting system automatically adjusts blade depth for pile height. Core fermentation zones are monitored by temperature sensors to ensure appropriate thermophilic temperatures between 55-65°C for breakdown and pathogen elimination.

After one trough cycles, the transfer vehicle takes the unit to the next fermentation bay. Power is continuous throughout multi-trough operations with the cable reel system. Remote control lets workers oversee the composting process from a central control center.

Technical Specifications & Performance Data

Industrial Applications Across Multiple Sectors

Continuous high-throughput processing is used in large commercial organic fertilizer plants. In automated regulated conditions, the trough-type arrangement processes tens of thousands of tons yearly.

Rapid manure treatment helps intensive livestock and poultry operations. The machine handles huge amounts of fresh garbage that must be processed immediately to avoid environmental contamination in harsh outdoor circumstances.

Municipal Sludge Treatment Facilities use heavy-duty design for thick, high-moisture materials. Environmental compliance and soil amendments from trash are achieved by improved crushing that prevents anaerobic compaction.

Industrial bio-waste processors mix turner with food and green waste. The durable rotor maintains temperatures for pathogen eradication at various bulk densities.

Why Choose Yuxing's Compost Turner?

Our two decades of fertilizer equipment manufacturing expertise ensures engineering reliability. Rotor dynamic balancing and hydraulic pressure retention tests are performed on every component.

The one-machine multi-trough design boosts ROI. You operate one turner across your operation instead of buying one for each fermentation bay, saving up to 60%.

Customization for the Fertilizer Compost Turner meets your needs. For worldwide operations, we connect Siemens or Schneider components, adapt electrical systems to local voltage standards, and create PLC controllers with multi-language HMI interfaces.

Fast delivery cycles keep projects on track. Our experienced production infrastructure and solid supply chain allow us to dispatch standard equipment promptly and bespoke configurations within 15-20 days.

Global logistical expertise assures transit safety. We optimise container loading, handle large equipment shipment, and provide modular disassembly options to cut freight costs and ensure worldwide delivery.

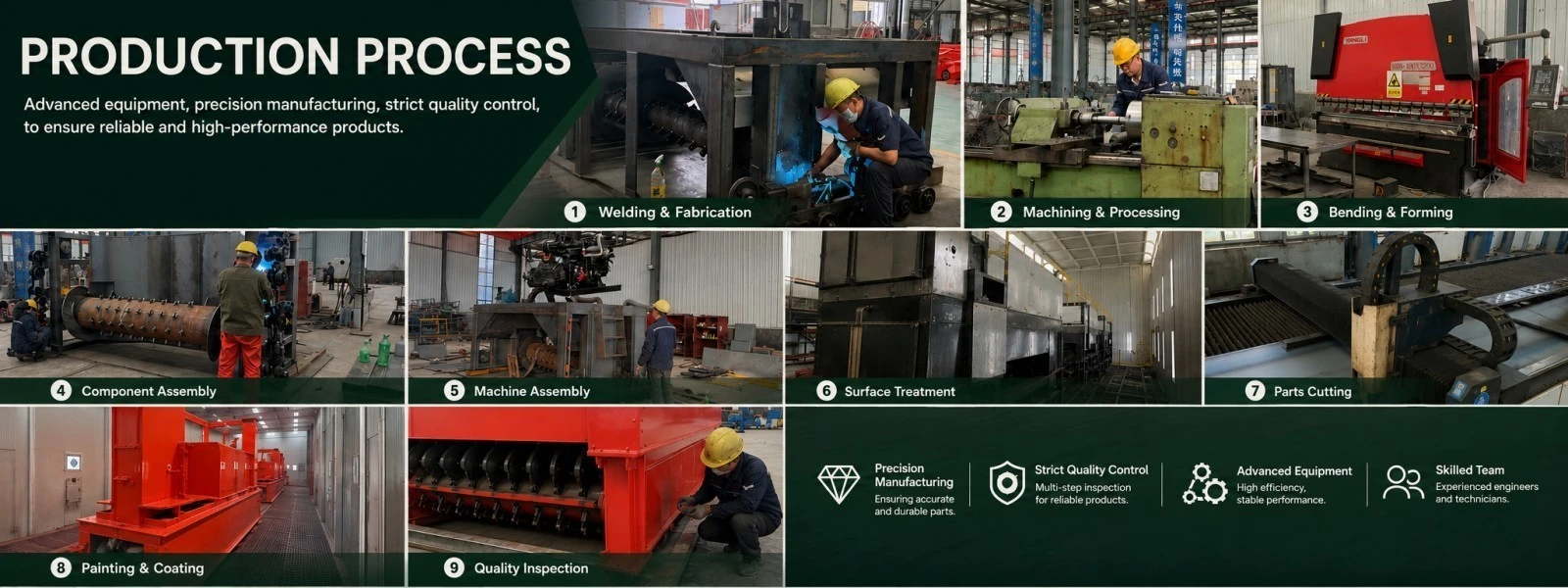

Quality Control & Engineering Excellence

Every turner is inspected thoroughly before shipment. Brinell testing of wear-resistant metal components verifies blade life.

The gearbox torque is tested under full load for 24 hours. We monitor noise and temperature rise to guarantee transmission efficiency satisfies industrial continuous-operation standards.

Anti-corrosion coating thickness is measured precisely. Our epoxy and polyurethane paint techniques can endure the high-ammonia, high-humidity fermentation environment that ruins inferior equipment quickly.

For years of intensive use, the Q345 carbon steel frame is structurally strong. Dynamic balance-tested rotors reduce vibration and maintenance, improving bearing life.

Cold-weather hydraulic systems use low-viscosity oil and pre-heating. Your composting process stays thermophilic even when outside temps dip below freezing.

Complete After-Sales Support System

Our 7x24 worldwide response network supports your investment forever. Our engineers oversee factory planning, process design, installation, and commissioning.

Operator training optimizes equipment performance for your crew. We offer hands-on maintenance, troubleshooting, and production optimization training.

Real-time remote video instruction answers operational questions. When problems emerge, our technical staff connects directly to your control systems to diagnose and solve them.

You never lose output due to spare parts. We keep extensive inventory and speed shipment to your site, minimizing downtime and safeguarding income.

Upgrades to production capacity match business development. We adjust automation, environmental protection, and throughput as your operation grows.

FAQ

Q: How does the turner affect the carbon-to-nitrogen ratio in composting?

A: The equipment facilitates uniform mixing of high-carbon additives like straw with high-nitrogen waste such as manure, helping achieve the ideal 25-30:1 ratio that accelerates microbial decomposition.

Q: What moisture content works best for efficient operation?

A: The system performs optimally when material moisture ranges between 45-65%. Built-in liquid injection ports allow real-time adjustments if material becomes too dry during processing.

Q: How often do the blades require replacement?

A: High-quality manganese steel blades typically need inspection every 500 operating hours. Replacement intervals range from 1,500-3,000 hours depending on material abrasiveness and operational intensity.

Q: Can the equipment function in extreme temperature environments?

A: Yes. Professional models feature low-viscosity hydraulic oil and pre-heating systems that maintain core pile temperatures at thermophilic levels even when external conditions reach sub-zero temperatures.

Q: What distinguishes this trough-type system from crawler models?

A: Trough-type designs excel in controlled production environments with multiple fixed fermentation bays. The multi-trough transfer function eliminates the need for separate equipment at each location, maximizing capital efficiency.
