Wheel Disc Windrow Turner

Wheel Disc Windrow Turner - Professional Compost Turning Solution for Large-Scale Operations

Yuxing's Wheel Disc Windrow Turner delivers enterprise-grade performance for intensive composting operations. Our YXYYFD-4000 model handles up to 30-meter turning spans with 1.5-3 meter depth capability, processing 1500-2000m³ per hour.

The fully hydraulic drive system reduces energy consumption by 30%-40% compared to traditional turners. Built with high-strength manganese steel alloy blades and heavy-duty epoxy coatings, this product withstands corrosive, high-ammonia environments. With over 20 years of manufacturing expertise serving 50+ countries, Yuxing provides CE and ISO certified equipment backed by lifetime technical support for your composting facility.

What Is a Wheel Disc Windrow Turner?

This automated industrial composting machine transforms how you handle organic waste fermentation. Unlike conventional chain or paddle systems, it uses a large-diameter horizontal rotating disc with specialized teeth to flip, aerate, and mix materials efficiently.

Your operation faces real challenges: high energy costs in large facilities, anaerobic dead zones in deep pits, and difficulty processing high-moisture content. The disc-based design solves these issues by ensuring complete material turnover in every pass.

Whether you're managing livestock manure, municipal sludge, or agricultural residues, this turner accelerates stabilization and sanitization. The circular motion creates less drag than traditional push-face designs, cutting motor horsepower requirements per cubic meter turned.

You get 100% material coverage with every cycle. This eliminates cold spots and maintains consistent aerobic conditions throughout your windrow or fermentation pit.

How It Works?

The operation is straightforward yet highly effective. Your Wheel Disc Windrow Turner travels along the composting windrow on steel tracks fitted with rubber blocks for smooth movement.

The hydraulic system powers a rotating disc equipped with specialized blade plates. As the disc spins, these blades cut through material at a 0.88m diameter, lifting and throwing it backward in an aerobic mixing action.

Your operator controls everything from the enclosed, air-conditioned cab. The hydraulic control system adjusts travel speed and turning depth on the fly, adapting to material density and moisture levels in real time.

PLC integration allows automated operation. You can link the system to moisture and temperature sensors for demand-based turning cycles. The machine processes material in 2-3 meter longitudinal distances per pass, methodically working through your entire composting area.

The maximum particle size capability of 250mm means you won't need excessive pre-processing. Materials enter at 4m clear door width and 2.0m height, accommodating bulk loading from front loaders or conveyors.

Technical Specifications

Core Advantages for Your Operation

Energy Efficiency That Impacts Your Bottom Line

You'll see 30%-40% lower energy consumption compared to trough turners. The low-resistance disc design requires less power to move the same volume of material, directly reducing your operational costs.

Built for Continuous Heavy-Duty Use

High-strength manganese steel alloy blades deliver exceptional wear resistance. Your turning teeth maintain performance for 1,500-2,000 operational hours before requiring inspection or replacement, minimizing downtime.

Corrosion-Resistant Engineering

Composting environments are harsh. Your equipment features specialized heavy-duty epoxy coatings, stainless-steel electrical enclosures, and galvanized fasteners specifically chosen to withstand high-ammonia atmospheres and corrosive gases like H2S and NH3.

Flexible Depth Control

The hydraulic lifting system adjusts turning depth based on your material characteristics. Whether you're processing fresh high-moisture manure or drier agricultural waste, you control the agitation intensity.

Automation-Ready Platform

Integration with factory automation systems is seamless. The PLC interface connects to SCADA systems for unmanned operation, remote monitoring, and data logging. Link it to your moisture and temperature sensors for intelligent, condition-based turning schedules.

Maximum Space Utilization

With turning span capacity up to 30 meters and depth to 3 meters, you maximize fermentation hall utilization. Deep pits retain heat better and reduce your facility footprint per ton of processing capacity.

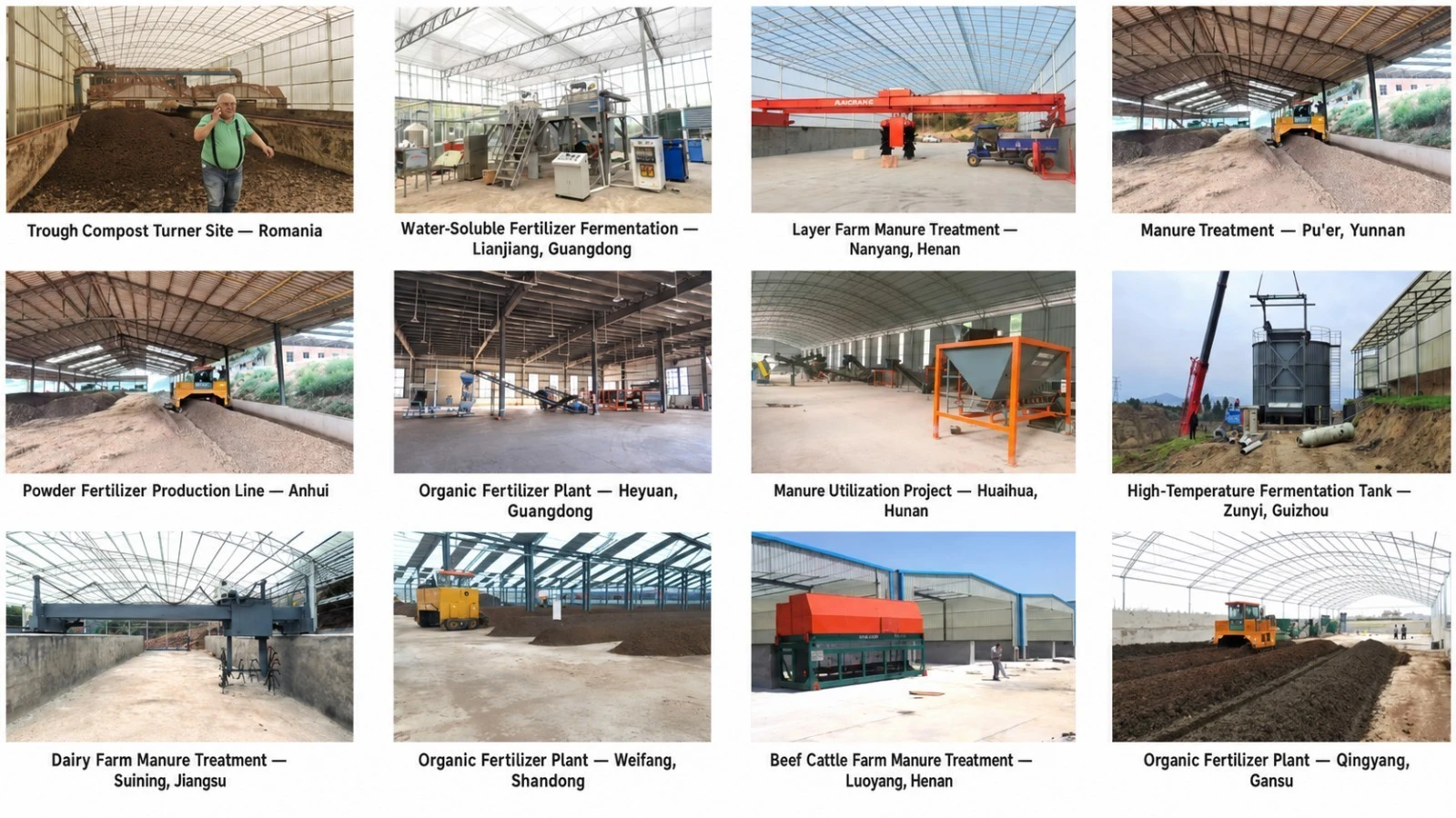

Application Scenarios Matched to Your Needs

Large-Scale Livestock Operations

Mega-farms processing hundreds of tons of dairy or swine manure daily rely on this turner. It maintains aerobic conditions even in deep pits, preventing odor complaints and methane emissions that regulators scrutinize.

Municipal Sludge Stabilization

Wastewater treatment facilities convert biological sludge into marketable soil conditioners. The high-torque drive handles the heavy, cohesive nature of dewatered sludge in high-humidity indoor environments where other equipment struggles.

Industrial Organic Waste Recycling

Sugar mill filter mud, distillery grains, and food processing waste present unique challenges. The disc's cutting and flipping action prevents clumping in fibrous materials and ensures uniform moisture evaporation in complex, acidic chemical environments.

Agricultural Residue Management

Crop waste, cotton gin trash, and spent mushroom substrate require thorough aeration. You get complete material mixing that accelerates decomposition while creating homogeneous compost for your product consistency standards.

Quality Control and Manufacturing Standards

Your investment is protected by rigorous quality assurance. Every unit undergoes ultrasonic flaw detection on the main bridge and rotating shaft to ensure weld integrity without internal cracks.

Blade hardness testing verifies that turning teeth meet HRC specifications for the 1,500+ hour wear-life benchmark. You receive documentation of these measurements with your equipment.

The hydraulic lifting system passes a 24-hour pressure hold test before shipment. This prevents hydraulic drift during operation, ensuring consistent turning depth throughout your production shifts.

Corrosion resistance evaluation includes salt spray testing on electrical cabinets and structural components. Anti-corrosive industrial coatings are applied to all exposed surfaces that will contact volatile composting gases.

Final factory acceptance includes a 72-hour continuous no-load run. Our engineers verify PLC logic and sensor accuracy to guarantee your system arrives ready for immediate production deployment.

Comprehensive Support for Your Success

You're not just buying equipment—you're partnering with 20+ years of fertilizer industry expertise. Yuxing provides complete turnkey solutions from factory planning through production optimization.

Installation and Commissioning

Our technicians guide your team through proper setup, electrical connections, and system calibration. We ensure your product integrates seamlessly with existing conveyors and loading systems.

Operator Training

Your staff receives hands-on training covering daily operation, routine maintenance, troubleshooting, and safety protocols. We provide operation manuals in your preferred language with clear diagrams and maintenance schedules.

Remote Technical Support

Access 24/7 global technical response through video guidance and troubleshooting assistance. Our support team understands the urgency when production equipment requires attention.

Spare Parts Supply

Critical wear components are stocked for rapid shipping. We maintain comprehensive parts inventories to minimize your downtime and keep production schedules on track.

Production Optimization

As your operation matures, we help you fine-tune turning schedules, material handling, and process parameters to maximize throughput and compost quality.

Custom Adaptation

Need CE certification? Different voltage standards? Siemens or Schneider components? Multi-language HMI? We customize electrical specifications, control systems, and compliance documentation for your market requirements.

FAQ

Q: What turning depth should I specify for my application?

A: Standard models handle 1.5 to 2.5 meters effectively. If your facility design includes deeper fermentation pits for superior heat retention, we offer custom engineering up to 3 meters. Deeper pits work well for high-moisture materials requiring extended retention times.

Q; How does the disc design actually save energy?

A: The circular motion cuts through material rather than pushing against a full wall of compost. This reduces resistance and the required motor horsepower per cubic meter. You'll notice the difference in your monthly utility costs, especially in continuous operations.

Q: Can this integrate into my existing automated factory?

A: Absolutely. The PLC interface accepts standard industrial communication protocols. You can link it to your existing moisture sensors, temperature probes, and SCADA systems for autonomous, condition-based turning cycles with full data logging.

Q: What maintenance should my team expect?

A: Inspect turning teeth monthly and plan for replacement every 1,500 to 2,000 operational hours, depending on material abrasiveness. Sand content in animal bedding accelerates wear. Hydraulic oil and filters follow standard industrial intervals. The WU160X100 travel oil filter is a common specification.

Q: How do you protect against composting corrosion?

A: We've engineered every component for this challenge. Heavy-duty epoxy coatings cover all structural steel. Electrical enclosures use stainless steel with sealed cable entries. All fasteners are galvanized or stainless. Your equipment is built to deliver years of reliable service in high-ammonia atmospheres.
