Organic Fertilizer Dryer

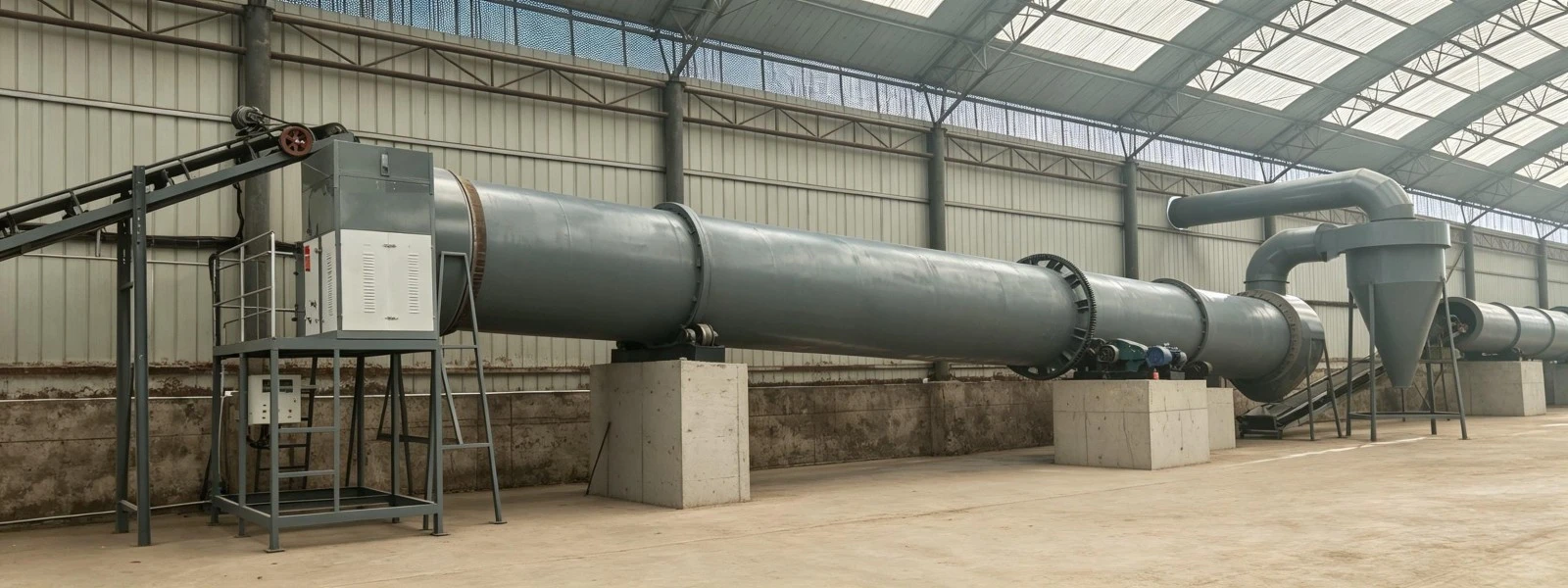

Organic Fertilizer Dryer: Industrial-Grade Moisture Reduction for High-Capacity Bio-Fertilizer Production

Henan Yuxing's YXHG-2020 Organic Fertilizer Dryer meets commercial thermal processing needs. This rotary dryer reduces moisture from 70% to 10-15% for stable, export-ready bio-fertilizer products at 8-15 tons per hour with 20+ years of fertilizer equipment manufacturing experience.

This device delivers continuous industrial performance with a 20-meter drum length, 2.0-meter diameter, 37kW motor, and ZQ500 reducer. The 3-5 degree installation tilt improves material flow, and CE and ISO certification provide worldwide quality for your investment.

What Makes Our Rotary Dryer Stand Out?

Production line dependability is essential. Even in humid tropical settings, this drier turns volatile organic waste into commercial fertilizer that surpasses international shelf-life standards.

Triple-pass heat exchange optimizes material-hot air contact. With thermal efficiency over 75%, you may use biomass, natural gas, coal, or waste heat recovery systems.

Equipment made of Q235B steel with anti-corrosion coating can handle acidic and alkaline organic waste. With precision PLC control, temperatures between 60°C and 120°C preserve beneficial microbes and nitrogen while removing pathogens.

Chicken dung sticks to walls, but internal scrapers and high-speed chains prevent this. This enables constant heat distribution and output quality throughout manufacturing batches.

Technical Specifications

How It Works: The Complete Drying Process

Understanding the thermal processing mechanism helps you optimize your production line. The Organic Fertilizer Dryer operates through a systematic four-stage cycle.

Stage 1: Material Feeding

Your fermented organics enter the feeding hopper. The revolving drum's 3-5 degree inclination directs materials without mechanical conveyance issues.

Stage 2: Heat Exchange

Triple-pass rotary drums circulate hot air. As the drum spins, lifting plates cascade materials through the hot air stream to maximize surface exposure for quick moisture evaporation.

Stage 3: Moisture Evaporation

Optimized temperature zones are controlled by PLC. Nitrogen deterioration is prevented via low-temperature, high-volume airflow at desired moisture levels. A regulated evaporation rate prevents surface hardening that retains inside moisture.

Stage 4: Discharge and Cooling

The discharge end releases dried materials for granulation or packing. VOC and PM criteria are met using integrated cyclone dust collectors and bio-filter deodorization towers.

Wet biomass is processed continuously into stable, transportable fertilizer at 8-15 tons per hour.

Real-World Applications That Drive ROI

Your investment solves critical industry challenges across multiple sectors.

Intensive Livestock Operations

Large-scale poultry and pig farms convert high-moisture manure into dry pellets. You'll eliminate local environmental pollution concerns while creating a secondary revenue stream from waste materials.

Municipal Sludge Management

Wastewater treatment plants reduce sludge volume by 70%. This facilitates safe landfill disposal or soil conditioner production, significantly lowering disposal costs and environmental liability.

Commercial Bio-Fertilizer Production

As the core unit in your granulation line, this dryer prepares feedstock for disc or drum granulators. Your final product meets international hardness standards, preventing moisture-induced clumping during storage and transport.

The equipment handles diverse feedstocks including animal manure, municipal sludge, agricultural waste, and food processing residues. This versatility maximizes your production line utilization across seasonal material availability changes.

Quality Assurance Through Rigorous Testing

You need equipment that performs reliably under continuous 24/7 operation. Our quality control protocol ensures mechanical stability and process safety.

Dynamic Balance Testing verifies the rotary drum operates with minimal vibration. This prevents fatigue cracking of support rollers that leads to costly unplanned downtime.

Wall Thickness Ultrasonic Testing confirms drum shell integrity against thermal expansion and abrasive wear. You'll avoid premature failure from material degradation.

Heat Transfer Performance Audit tests temperature gradients across the drum. This ensures no cold spots exist where moisture could linger, compromising your product quality specifications.

Welding Integrity Inspection uses X-ray and magnetic particle testing on load-bearing seams. This guarantees structural safety under the mechanical stress of industrial continuous operation.

Emission Compliance Verification validates integration with dust collection and deodorization systems. You'll meet local environmental standards without additional retrofitting expenses.

Why Choose Yuxing for Your Drying Solution

Your production success depends on supplier capability. Yuxing brings 20+ years of fertilizer equipment expertise, serving thousands of clients across 50+ countries.

Fast Delivery Cycle

Standard equipment ships immediately from stock. Customized configurations deliver within 15-20 days, significantly shortening your project timeline and accelerating ROI.

Complete Turnkey Support

We provide factory planning, process design, installation, and commissioning. Your operators receive comprehensive training, ensuring optimal performance from day one.

Global Logistics Expertise

Our team optimizes 40GP container loading and handles oversized equipment shipping. You'll benefit from reduced transportation costs and safe international delivery.

Lifetime Technical Commitment

24/7 global support includes remote video guidance, troubleshooting, spare parts supply, and production optimization. Your operation maintains stable long-term performance.

Strategic Cooperation Advantage

Partnership with Shandong Baolai Lailai Group provides integrated fermentation agents and microbial innovation support. You receive complete biological + mechanical solutions, not just standalone equipment.

FAQ

Q: How do you prevent nitrogen loss during the drying process?

A: Our low-temperature, high-volume air drying technique uses PLC-controlled thermal feedback loops. Material temperature stays below the degradation threshold, preserving nitrogen and organic matter integrity.

Q: What is the equipment's operational lifespan?

A: With proper girth gear lubrication and wear-resistant lifting plates, you'll achieve 10-15 years of reliable service. Our robust mechanical design ensures long-term industrial stability.

Q: Can this dryer handle sticky materials like poultry manure?

A: Yes. Specialized internal scrapers and high-speed chains prevent wall adhesion. You'll get uniform heat distribution even with challenging high-viscosity feedstocks.

Q: What is the energy consumption per ton of product?

A: Modern systems consume approximately 35-45 kg coal equivalent or 30-40 m³ natural gas per ton of water evaporated. Actual consumption varies by fuel type and operating conditions.

Q: Does installation require environmental permits?

A: Equipment integrates with air scrubbing and dust collection systems. We provide standardized emission test documentation to support your permit applications and compliance verification.
