Groove Compost Turner - Industrial Organic Waste Fermentation Solution

More than 20 years of aerobic fermentation technical expertise go into Yuxing's groove compost turner. This equipment is designed for big organic fertilizer plants and municipal waste treatment facilities with a 3,000-6,000mm working width and 0.8-1.3m processing depth.

Dual 15-30kW main motors and separate speed control systems provide 100-300m³/h manufacturing capacity. Modern multi-trough transfer functions allow one machine to service many fermentation trenches, saving up to 40% on equipment investment.

Our solution has helped thousands of clients turn animal manure, municipal sludge, and agricultural waste into organic fertilizer in 15-20 days in over 50 countries.

How It Works?

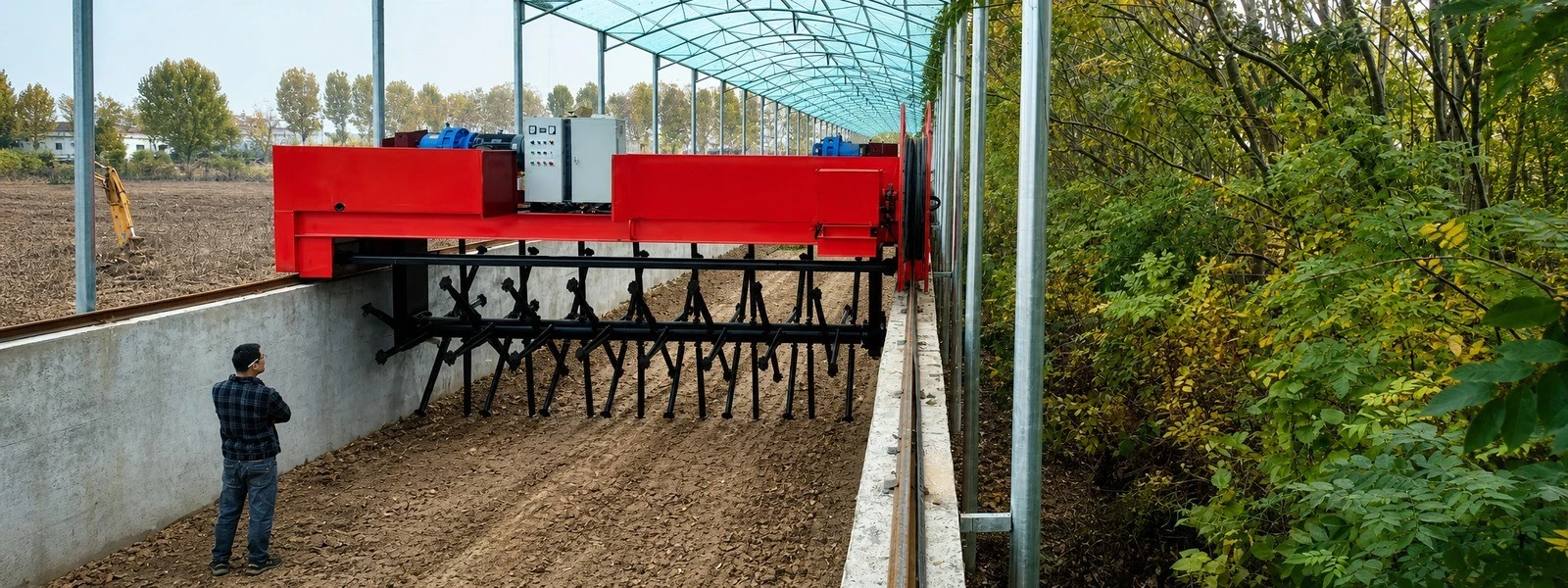

Our product uses aerobic fermentation. The equipment runs over longitudinal tracks on reinforced concrete trench walls at the ideal operating height above composting material.

A high-speed rotating drum takes organic material from the bottom layers and throws it backward as the machine travels forward. This process simultaneously introduces oxygen, regulates temperature, and evaporates moisture.

Chain-plate or auger-type mechanisms break apart compacted clumps and combine fresh material with partially matured compost. This assures batch-wide decomposition.

The electromagnetic speed regulation device lets operators modify walking pace based on material density and wetness. After one trench cycles, the hydraulic lifting mechanism rises the drum and the transfer truck transports the unit to the next fermentation groove.

This continuous operating strategy optimizes fermentation conditions over many trenches while maximizing equipment use.

Technical Specifications

Core Advantages

Maximized Space Efficiency

Trench composting uses vertical space better than windrow composting, which requires plenty of acreage. Your facility processes 3-5 times more material in the same space.

The deep-pool arrangement (1.3m depth) increases stacking density. This lowers land prices and simplifies environmental control.

Superior Oxygenation Performance

Anaerobic fermentation and odors result from poor oxygen delivery. Our revolving drum enables complete material-air interaction every pass.

VFD controls turning intensity dependent on fermentation stage. Early-stage material is aggressively mixed, whereas mature compost is gently handled to retain granular structure.

Precision control cuts fermentation time 20-30% over passive aeration.

Automated Multi-Trough Operation

Intelligent transfer is a breakthrough in operational efficiency. A groove compost turner can handle 4-8 fermentation trenches, depending on production schedule.

Changing grooves takes around 15 minutes. For each trench, the PLC control system stores operation hours, material volume, and maintenance warnings.

Automation cuts labor expenses by 60% and ensures batch-to-batch quality.

Heavy-Duty Construction

A unique anti-corrosive coating covers all structural Q235 carbon steel components. This defends against fermentation trenches' acidic and ammonia-rich environment.

The cycloidal pinwheel reducer transmits torque smoothly even with compressed material or extraneous objects. If resistance exceeds safe limits, overload protection reverses the drum.

Alloy-tipped flipping teeth last 1,200–2,000 hours, minimizing maintenance.

Application Scenarios

Large-Scale Livestock Operations

Intensive poultry and pig farms generate massive volumes of manure daily. Our equipment processes this waste into pathogen-free organic fertilizer, converting an environmental liability into profit.

The high-temperature aerobic process (55-70°C maintained for 72+ hours) meets international biosafety standards. You can confidently sell the finished product to organic crop growers.

Municipal Waste Treatment

Sewage treatment plants and urban composting facilities face strict odor control regulations. The enclosed trench design combined with efficient turning minimizes volatile organic compound emissions.

Our product handles high-moisture sludge (up to 65% water content when mixed with bulking agents) that would stall traditional equipment. The rapid moisture evaporation capability shortens processing cycles substantially.

Agricultural Waste Recycling

Sugar mills, distilleries, and food processing plants generate filter mud, spent wash, and organic residues. These materials often have challenging characteristics like high viscosity or extreme pH levels.

The robust construction and powerful drive system process these difficult materials reliably. The finished compost can be used internally for soil amendment or sold as a premium organic fertilizer product.

Quality Control Standards

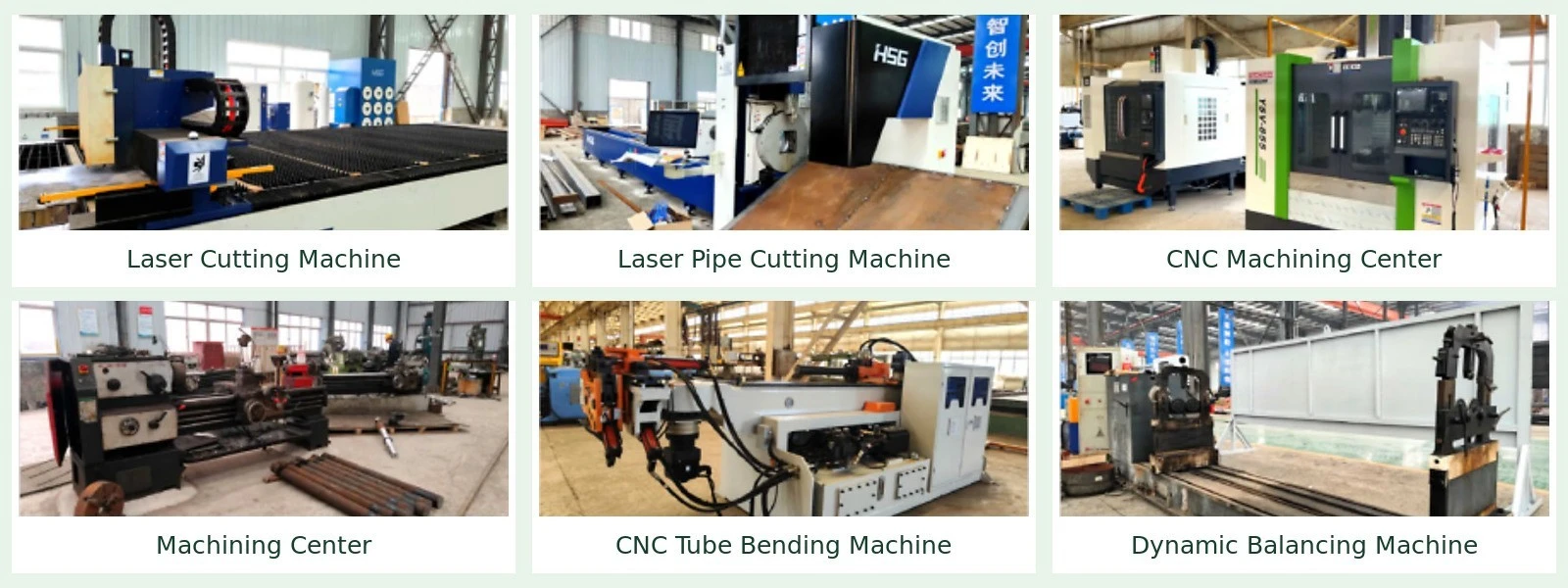

Yuxing insists on strict factory inspections. Every component is material-certified before manufacture.

All load-bearing joints are ultrasonically inspected for welding integrity. To maintain structural integrity, the main bridge frame is stress-tested to 150% of rated capacity.

Dynamic balancing testing removes wear-causing vibrations. Under continuous operation, the transmission system performs thermal load testing.

Every electrical component is IP55-protected. To prevent fermentation-related ammonia and hydrogen sulfide gas corrosion, motors and PLC cabinets are sealed.

Each item is tested for 48 hours no-load and 24 hours full-load before delivery. Our tests validate travel speed accuracy, limit switch reaction, and emergency stop performance.

Customization & Global Adaptability

As a leading ODM/OEM manufacturer, we adapt equipment to your specific requirements. Voltage and electrical standards can be configured for any global market.

CE certification packages are available for European clients. We integrate Siemens or Schneider components based on your preference.

The PLC control system supports multi-language HMI interfaces. Your operators can work in their native language, reducing training time and operational errors.

Special configurations include enhanced dust collection systems for arid climates, tropical-grade corrosion protection for coastal regions, and cold-weather hydraulic fluid specifications for northern facilities.

Our engineering team provides complete factory planning services. We optimize trench dimensions, rail spacing, and material flow logistics based on your site conditions and production targets.

FAQ

Q: How often should flipping teeth be replaced?

A: Under standard operating conditions, alloy-tipped teeth last 1,200-2,000 hours. We recommend monthly visual inspections to monitor wear patterns and replace individual teeth as needed rather than waiting for complete wear.

Q: Can the equipment handle moisture levels above 60%?

A: While technically possible, we recommend adding bulking agents like straw or wood chips to improve porosity. This prevents anaerobic pockets and maintains efficient oxygen circulation throughout the material.

Q: What causes rail misalignment issues?

A: The most common cause is uneven foundation settling over time. During installation, rail gauge must be calibrated to within ±2mm tolerance. Annual surveying helps identify and correct alignment drift before it affects equipment performance.

Q: How does the system prevent clogging in deep grooves?

A: Our automatic overload protection monitors motor torque continuously. If resistance exceeds preset safety limits, the system automatically reverses drum rotation to clear the obstruction. This prevents mechanical damage and maintains continuous operation.

Q: Is it possible to automate multiple grooves with one machine?

A: Absolutely. The specialized transfer vehicle (shifter) moves the entire unit between trenches on perpendicular rails. Depending on your fermentation cycle and production schedule, one product efficiently services 4-8 trenches, dramatically reducing capital investment per ton of capacity.
