Working Principle and Best Choice for Compost Plant

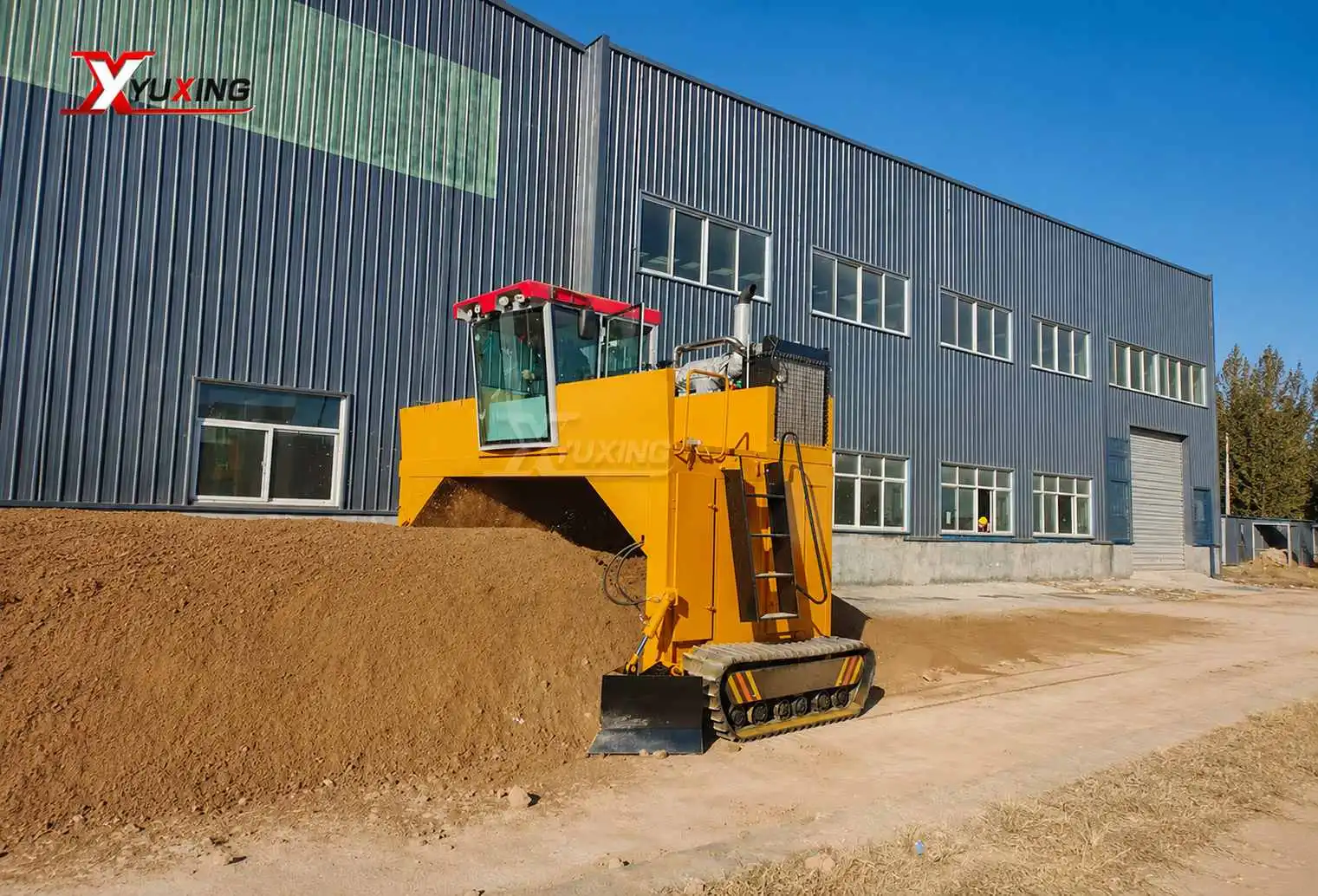

A crawler compost turner is the mechanical backbone of any high-output composting operation. It uses a track-driven chassis combined with a high-speed rotating drum to agitate, aerate, and blend windrow piles continuously. Unlike wheel-based alternatives, this machine delivers stable traction across wet, uneven, or muddy composting pads—conditions that are routine on livestock farms and industrial waste sites. For medium-to-large compost plants processing hundreds of cubic meters daily, understanding the working principle helps operators select the right unit and get the most from their investment.

How Does a Crawler Compost Turner Work?

The main part of the machine is a drum with hardened metal blades that spin at a fixed speed, going through the windrow pile from above and throwing material backward. This action achieves three goals at the same time: it breaks up hardened clumps, adds fresh oxygen to the pile, and spreads moisture and microbes out evenly throughout the mass.

Mechanical Agitation and Aeration in Detail

It has a drum with blades that is 860 mm in diameter and can spin through windrows that are up to 2,600 mm wide and 1,300 mm high, covering an area of 2.5 m² per pass. The 85kW turbocharged diesel engine gives the machine enough torque to move thick cow manure or wet biosolids without stopping. The travel speed is between 0 and 20 m/min, and the working turning speed stays between 0 and 15 m/min. This gives workers full control over how rough the material is cut. A single unit can process 800–1,000 m³/h, which is enough to handle the daily output of a big livestock business in just a few hours.

The lengthwise turning distance can be changed from 1,000 mm to 2,000 mm per pass. This makes it possible to cover more piles with less fuel. This mechanical method keeps the thermophilic phase going, which is the 55°C–70°C range where pathogens are killed and things break down quickly.

Benefits of Using Crawler Compost Turners in Compost Plants

When operators switch from turning piles by hand or using implements on tractors, the composting cycles often shorten from 60 to 90 days to as little as 7 to 15 days. The shorter time frame directly leads to more work being done each year on the same amount of land.

When used in production, these are the main benefits of this equipment:

• Uniform oxygen distribution: As the drum turns, it breaks up anaerobic pockets in the pile. This keeps the pile aerobic, which stops the production of methane and bad smells, which is known to be a problem in fields in Southeast Asia and East Africa with lots of animals.
• Improved compost maturity: Regular heat cycles kill weed seeds and pathogens, which raises the value of finished compost as a certified organic fertilizer source.
• Reduced operational labor: One person running the YXFD-2600 self propelled compost turner can process material that would normally need a crew of 10–15 people using hand tools. This saves a measurable amount of money on labor over the course of an annual production cycle.
• Terrain adaptability: The crawler chassis spreads the machine's weight over a larger area, which keeps the soil from compacting at windrow bases and lets the machine move around on wet pads.

These benefits solve the problems that medium- to large-sized compost plants have the most trouble with: inconsistent product quality, high labor costs, and smell complaints from nearby residents. They give a return on investment that most buyers with a budget of $3,000 to $35,000 reach in one to two production seasons.

Types of Compost Turners and How to Choose the Best One for Your Plant?

The market for compost turners is split into four main groups: manual fork-based turning, windrow turners mounted on tractors, self-propelled wheel turners, and track-driven crawler compost turners. Each works best for a different type of operation.

Matching Equipment Type to Plant Scale

Small hobby farms or pilot projects with an annual output of less than 500 m³ can use both manual and tractor-mounted units. Machines with wheels that move themselves along solid, paved composting pads work best when the ground is stable. When pile volumes are more than a few thousand cubic meters per month, the terrain is unpredictable, or operations happen all year during wet seasons, as they do in Nigeria, Vietnam, and Brazil, a crawler compost turner is the best choice.

When looking at their buying choices, buyers should think about:

• Power source: Diesel works well in remote areas that don't have stable grid access, and the YXFD-2600's 4108 National II Turbocharged engine makes sure it meets emission standards even in places where power isn't always available.
• Processing width: The working width of 2,600 mm fits the usual windrow sizes used by most medium-sized compost plants without having to make expensive changes to the site.
• Particle size tolerance: The YXFD-2600 can handle materials with particles up to 250 mm in size. It can also handle coarse lignocellulosic bulking agents like crop residues or wood chips.
• Gear configuration: With six forward gears and two reverse gears, workers can easily handle tight turning areas in facilities that are already set up.

Many people in Africa, Southeast Asia, Central Asia, and South America have hired YUXING to do work for them. Because it does so many things, it can create machines such as a self propelled compost turner in ways that localized, single-market makers can't.

Operation and Maintenance Guide for Crawler Compost Turners

Good working practice starts before the machine even moves. Every day before starting up, operators should check the track tension, hydraulic fluid levels, and blade wear. The YXFD-2600's 6-forward gear design lets the speed go up gradually when hitting a new windrow. This lowers the shock loads on the drum shaft and makes the blades last longer.

Preventive Maintenance Priorities

Manganese steel turning teeth usually last between 800 and 1,200 hours of use, but this depends on how rough the substrate is. For example, sand-filled manure wears down teeth faster than clean chicken litter. By inspecting the blades every 200 hours, you can catch uneven wear before it causes the drum to become unbalanced. Every three months, the working capacity of the 1.5-inch hydraulic line should be checked against it so that the field doesn't fail during busy processing times.

YUXING offers lifetime 7x24 after-sales support, which includes help with installation, teaching on how to use the product, and advice on extra parts. With a stable supply chain and more than 20 years of experience making fertilizer equipment, the company can quickly send out standard new parts, which keeps continuous-production plants from having to stop work for no reason.

How to Procure the Best Compost Turner for Your Business?

When making a purchase decision in this price range, it helps to have a clear picture of three things: the daily processing volume needs, the site's infrastructure limitations, and the total cost of ownership over five years. A facility that makes 200 tons of animal waste every day needs to match its turning capacity to its waste production. The YXFD-2600's 800–1,000 m³/h capacity is more than enough for most medium-sized operations.

YUXING has CE- and ISO-approved equipment with voltage standards that can be changed, PLC automatic control, and OEM branding. This makes it suitable for the rules in a wide range of export markets. Standard equipment can be shipped quickly from stock, but custom configurations need 15–20 days to be made. International transportation knowledge includes 40GP containers, open-top containers, and modular removal for oversized loads, which cuts down on freight problems that often cause projects to be late.

Conclusion

High-output composting facilities use crawler compost turners to turn the compost because it solves the three most important problems: how fast the compost ferments, how uniform the compost is, and how much work needs to be done. The YXFD-2600 can process 800–1,000 m³/h and has a strong 85kW diesel drivetrain that was made to handle tough conditions on animal farms and commercial waste sites around the world. The most reliable way to make steady compost and make money making organic fertilizer is to buy the right aerobic fermentation machine that fits your needs and then get technical help for life from the company that sold you it.

FAQ

1. What pile dimensions is the YXFD-2600 designed to handle?

The machine can handle windrows that are up to 2,600 mm wide and 1,300 mm high, and it can cover a 2.5 m² area in one pass. In medium- to large-sized composting facilities, these measurements are in line with standard industrial windrow configurations.

2. How does a diesel crawler turner compare with an electric windrow turner for remote sites?

Diesel units make sense when grid power isn't available or isn't stable. The YXFD-2600's turbocharged engine gives consistent torque no matter what the site infrastructure is like, which is very important for operations in Southeast Asia or rural Africa.

3. Can the machine handle high-moisture manure above 60% water content?

Yes. The design of the high-torque drum breaks up wet, dense clumps well. Adding carbon-rich boosting agents like straw or wood chips and turning the soil regularly keeps the oxygen conditions at their best, even when the moisture level is high.

4. What is the typical fermentation cycle reduction achievable?

If the right materials and conditions are used, aerobic fermentation can cut the time needed by up to 30% compared to turning the mixture infrequently or by hand. In well-run operations, this means cycles can be cut from months to 7–15 days.

Partner with YUXING—Trusted Crawler Compost Turner Manufacturer

It has built its reputation over the past 20 years by providing composting solutions that work in real-world production settings. We are a well-known maker and seller of crawler compost turners, and our products are CE and ISO approved. We also offer fast shipping, foreign transportation knowledge, and technical support for life. You can email our team at yuxing@hnyxmachinery.com to get details, prices, and a setup that is made just for your facility's daily output and site plan.

References

1. Haug, R. T. The Practical Handbook of Compost Engineering. Lewis Publishers, 1993.

2. Rynk, R. (Ed.). On-Farm Composting Handbook. Northeast Regional Agricultural Engineering Service, 1992.

3. Bernal, M. P., Alburquerque, J. A., & Moral, R. "Composting of Animal Manures and Chemical Criteria for Compost Maturity Assessment." Bioresource Technology, 2009.

4. Epstein, E. Industrial Composting: Environmental Engineering and Facilities Management. CRC Press, 2011.

5. Martins, O., & Dewes, T. "Loss of Nitrogenous Compounds During Composting of Animal Wastes." Bioresource Technology, 1992.

6. FAO. Livestock's Long Shadow: Environmental Issues and Options. Food and Agriculture Organization of the United Nations, 2006.
