Windrow Composting Machine Working Principle and Best System Comparison for Manure Composting

A windrow composting machine is heavy-duty industrial equipment designed to mechanically turn and aerate organic waste arranged in long rows. This equipment revolutionizes aerobic fermentation by transforming manure and organic materials from months-long natural processes into efficient 7-15 day cycles. Through systematic mechanical turning, these machines address critical challenges: inconsistent oxygen distribution causing anaerobic zones, uneven moisture content hampering microbial activity, and excessive labor demands. By maintaining optimal aerobic conditions, the system accelerates thermophilic decomposition while ensuring pathogen elimination through uniform heat exposure.

Understanding the Working Principle of Windrow Composting Machines

Core Operational Mechanism

Improvement of oxygen fermentation through mechanical motion is at the heart of how it works. When organic garbage is piled up in windrows, which are long, narrow piles that are usually two to three meters wide and one to two meters high, natural decomposition takes longer because air can't get to the materials. This problem is fixed by compost turners, which move, mix, and lift the materials in the pile, creating many air pockets all over it. This steady flow of oxygen powers aerobic bacteria, which break down organic chemicals much faster than anaerobic processes. At the same time, temperatures between 55°C and 70°C kill weed seeds and pathogens.

Key Mechanical Components

Professional compost turners combine a number of important systems. The spinning drum unit has manganese steel blades (usually HRC 45–52 hardness), and it goes through the windrow, lifting and throwing things backward. The YXFD-2500 Crawler Compost Turner has a 680 mm drum diameter and blades that are placed so that they can handle particles up to 250 mm in size. The tracked base lowers the ground pressure so it can be used on uneven areas without sinking, which is very important for outdoor composting yards. The 70kW turbocharged diesel engine gives the transmission system six forward and two reverse gears that let operators change the travel speed (0–20m/min) and working speed (0–15m/min) depending on the density and moisture content of the material.

Sequential Process Steps

Preparing the material means mixing carbon-rich bedding with nitrogen-rich dung to get the right C:N ratio, which should be between 25 and 30. After front-end loaders or other specialized stacking equipment make windrows, the turner makes regular passes. The machine can handle large piles while keeping aerobic conditions thanks to its 2500mm working area and 1100mm height capability. During each stage of turning, materials are moved from the bottom to the top, exposing areas that were previously inside to oxygen from the air. This constant moving around keeps things from getting too compacted, gets rid of extra water by creating more surface area, and moves microbial colonies that make heat around. Monitoring the temperature determines how often the turning should happen—usually every 24 to 48 hours during the active thermophilic phases and every 3 to 5 days during the curing stages.

Best Practices for Operating and Maintaining Windrow Composting Machines

Optimizing Operational Parameters

Managing windrows well means paying attention to a lot of different factors that all work together. The size of the pile has a big effect on how well it ventilates and keeps heat in. The YXFD-2500 can handle 600–800 m³ per hour, which is enough for medium-to-large operations that make 50–100 tons of material every day. Moisture content needs to be closely watched—materials with less than 40% moisture don't allow microbes to grow, and materials with more than 65% moisture cause anaerobic conditions even when they are turned. Using probe thermometers for temperature tracking helps figure out when a change is needed. When the temperature inside gets close to 75°C, turning stops the buildup of too much heat that kills good microorganisms. On the other hand, temperatures dropping below 50°C in the early stages show that there isn't enough microbial activity, which could mean that there is an imbalance of C:N or too much moisture.

Maintaining regular movement patterns is good for operators. Driving in straight lines at steady speeds makes sure that the material is processed evenly. With variable speed control, you can make changes when you come across denser areas or changes in the amount of moisture in the same windrow. The six-gear setup delivers exact power that matches the stiffness of the material without putting stress on the engine.

Maintenance Protocols and Equipment Longevity

Routine repair has a direct effect on how long a windrow turner machine lasts and how well it works. Every day before use, the hydraulic fluid levels, engine oil state, and track tension should all be checked. Because ammonia vapor and organic acids create a corrosive climate, protection coverings need to be carefully chosen. Manganese steel blades can usually be used for 600 to 1,000 hours, but this depends on how much gritty material is in the input, like sand or gravel. Keeping an eye on blade wear keeps the mixing quality uniform and stops sudden failures during operations.

Scheduled lubrication increases the life of bearings and lowers the heat that builds up from friction. Every 40 to 50 hours of use, important pivot points on the drum unit and track drive systems need to be greased. Pressure tests at 1.5 times normal pressure should be done every three months on the hydraulic system that turns the drum so that seal degradation can be found before it fails completely. Keeping the engine's cooling system clean keeps it from overheating while it's running all the time. Flushing the radiators and checking the coolant concentration also keeps corrosion from happening. Keeping detailed service logs helps you figure out when to repair parts, which cuts down on unplanned downtime during busy times. These methods are in line with YUXING's engineering mindset of making designs that last and don't need much upkeep, making them perfect for settings where production is ongoing.

Comparative Analysis of Windrow Composting Systems vs. Other Composting Methods

Windrow Turner vs. Static Pile Composting

Static pile systems depend only on natural airflow and some human stirring from time to time. While they don't require a lot of money up front, they take longer to process—often 90 to 180 days instead of 15 to 30 days for mechanical turning. When there isn't regular aeration, temperature differences happen, with the edges of the pile staying cool while the cores get too hot. This makes it hard to kill pathogens evenly. Forklift operators have to manually move materials, which is expensive and can't be done for operations that move more than 10 tons of material per day. These problems can't happen with mechanical turners because they can do consistent, repeated work that meets the standards for organic certification that need proof of temperature control.

Windrow Systems vs. In-Vessel Composting

In-vessel reactors are better at controlling the environment because they have sealed rooms with forced airflow and automatic water input. These methods work great in cities where there are strict rules about smells and not much land available. In ideal situations, processing times can be cut down to 10–14 days. For commercial-scale setups, the capital costs are $100,000 to $500,000, while for crawler-type windrow turners, they are only $15,000 to $35,000. It also gets harder to run because sensors, blowers, and moisture delivery systems need to be managed by trained technicians. Because in-vessel systems need fixed structures like concrete pads, electrical service, and drainage systems, the site's flexibility also goes down.

Using mobile turners for windrow composting machine systems gives businesses that have yearly changes in the amount of waste they have to process more operational freedom. The equipment can be easily moved from one composting yard to another without making any changes to the site other than leveling the ground.

Manual vs. Automated Turner Systems

Manual turners, which are usually attached to tractors, are cheaper at first, but the results depend on how skilled the person is. For each pass, you have to pay close attention to the patterns of overlap and changes in speed, which are taken care of by automatic systems with controls that have already been coded. Labor efficiency goes down when operators have to keep an eye on and change parameters all the time instead of just steering the equipment along predetermined paths. Automated turners have sensors that check the load on the engine and the resistance of the drum. The sensors then change the speed of the turner so that the material flows smoothly through it.

Diesel vs. Electric Power Systems

Outdoor windrow operations are mostly done with diesel-powered units like the YXFD-2500 because they are easy to set up. They don't need electricity, which makes them perfect for farms that are far away. The turbocharged 4102 engine gives the same amount of power no matter what the temperature is outside. This is very important in the winter, when battery-electric devices lose power. Simple fuel logistics exist because most farming operations already keep diesel for tractors and trucks on hand.

Electric options are better for operations that are close to homes or inside enclosed buildings because they make less noise and don't release direct emissions. Depending on how much diesel costs compared to electricity rates in the area, operating costs may go down. The main problem is the cost of building the necessary infrastructure. For example, to provide specialized electricity that can handle 50–80kW of steady loads, a lot of wiring and transformers are needed. Concerns about safety arise when mobile equipment moves through waste yards when cords are not properly managed.

Choosing the Right Windrow Composting Machine for Your Business Needs

Capacity Matching and Operational Scale

Assessing the volume correctly is the first step in choosing the right windrow composting machine. Figure out how much trash is made every day, taking into account yearly peaks. For example, when cleaning the barn, animal operations produce the most trash. The YXFD-2500 can handle up to 600 to 800 cubic meters per hour, which is a good match for a plant that makes 60 to 80 cubic meters per day. This means that the piles can be processed in just one to two hours with a suitable windrow turner machine. Undersized equipment needs to be passed over more than once or has to work longer hours, while oversized machines waste money on capital expenditures that aren't necessary.

Automation Level and Control Systems

The working width affects how flexible the site plan can be. The 2500 mm width can fit through most barn doors (2.5 m clearance width, 1.1 m clearance height), and it can be used with normal windrow setups. Smaller properties with limited space may need narrower machines, while operations with lots of land can use wider units to process larger windrows more quickly.

Basic manual-control turners need an operator to be there all the time to change the speed, engage the drum, and adjust the throttle. This hands-on method works well for smaller businesses where composting chores can be assigned to workers. Medium-sized to large facilities can be more productive with semi-automated systems that stick to set parameters. An operator controls the machine, and the drum speed changes automatically based on the density of the material. Fully automatic GPS-guided systems reduce the need for monitoring work but cost a lot.

Investment Analysis and Return Considerations

The price of equipment depends on its ability, how well it is automated, and how well it is built. Between $3,000 and $35,000. This price range includes small units that are handled by hand and strong automated crawler systems. The YXFD-2500 is in the middle-to-higher price range, which is supported by its CE and ISO certifications, corrosion-resistant build, and wide range of parts. Figure out how much labor is saved when figuring out ROI. One person controlling motorized turning can do the work of four to six people forking piles by hand. Cutting down on processing time increases the throughput of the facility, which can be used to make money by selling compost or by lowering the cost of disposal fees.

Procurement Channel Selection

YUXING has been making things for more than 20 years, so their ideas have been tested in the field, so they don't have to include expensive new features. When you buy from well-known companies, you can be sure that spare parts will be available, which is very important when your operations rely on ongoing processing. The lifetime 7x24 after-sales help makes it less likely that there will be technical problems during the installation or tuning stages.

When you buy new equipment, you get the most up-to-date engineering and a full warranty. YUXING keeps standard configurations in stock so that they can be sent out quickly. Customized configurations, on the other hand, need 15 to 20 days to be made. Because of this responsiveness, long project delays are avoided, which can happen when a manufacturer doesn't have enough inventory.

The used equipment market offers cheaper options, but buyers must carefully check the state of worn parts and the past of maintenance. Service life is affected by blade wear, the condition of the hydraulic seals, and the number of hours the engine has been run. Rental options are good for businesses that want to see if composting is worth the money before making a permanent investment, but the daily costs add up quickly if they are used continuously for more than three to six months.

Conclusion

Mechanical windrow composting machine usage is a tried-and-true method that helps medium- to large animal farms and industrial composting sites solve important problems. Understanding how machines work, like how systematic aeration works through mechanical turning, lets you compare the specs of equipment to what you need it to do. The YXFD-2500 Crawler Compost Turner is a great example of a purpose-built design that balances processing capacity, movement, and longevity for settings with a lot of organic waste. Comparative research shows that windrow systems work best between static pilings with low control and reactors with high investments in the vessels. A successful implementation depends on carefully choosing equipment that matches the level of automation, capacity, and supplier dependability. Combining caring for the environment with making money by cutting down on labor costs, shortening processing times, and selling compost is what makes automated windrow composting a smart investment.

FAQ

1. What turning frequency optimizes compost quality?

To keep temperatures between 55°C and 70°C and keep oxygen levels from dropping, active thermophilic phase materials need to be turned every 24 to 48 hours. Three- to five-day gaps are enough during the curing phase after the initial decomposition. Time is set by checking the internal temperatures—turn when they get close to 75°C or drop below 50°C during active phases.

2. Can windrow composters handle mixed organic waste streams?

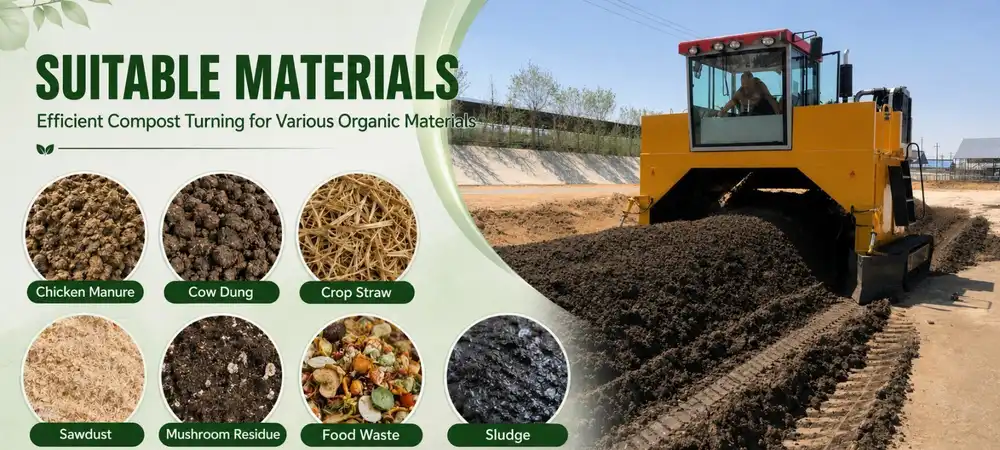

Professional units handle a wide range of materials, such as animal manure, crop residues, food processing waste, and biosolids from cities. Important needs include pre-screening to get rid of contaminants that can't be composted and combining feedstock to get the right C:N ratios. The YXFD-2500's highest particle size standard of 250 mm guides the preparation of the material.

3. How does machine size affect daily processing capacity?

The 2500 mm working width and 1100 mm height clearance can handle windrows with about 2.5 m³ of material per linear meter. At a processing rate of 600–800 m³/h, workers make multiple passes over long windrows during normal shifts, which is the same rate for facilities that make 50–100 tons of organic garbage every day.

Partner With a Trusted Windrow Composting Machine Manufacturer

Yuxing has been making fertilizer tools for more than 20 years and works with clients in more than 50 countries to find reliable answers for their organic waste problems. Our YXFD-2500 Crawler Compost Turner is a windrow composting machine with a mechanical design that has been tested and is certified by CE and ISO. It also comes with lifetime 7x24 technical support that includes help with installation, improving operations, and advice on spare parts. We keep stock on hand so that orders can be sent out quickly, and we offer production times of 15 to 20 days for custom configurations. Our engineering team takes care of the whole project, from designing the plant layout to completing it and teaching the operators, making sure that it fits in seamlessly with the current operations. Get in touch with our purchasing experts at yuxing@hnyxmachinery.com to talk about your unique composting needs and get full specs that fit your working size.

References

1. Haug, R.T. (1993). The Practical Handbook of Compost Engineering. Lewis Publishers, Boca Raton, Florida.

2. Rynk, R., van de Kamp, M., Willson, G.B., et al. (1992). On-Farm Composting Handbook. Northeast Regional Agricultural Engineering Service, Ithaca, New York.

3. Bernal, M.P., Alburquerque, J.A., and Moral, R. (2009). Composting of animal manures and chemical criteria for compost maturity assessment. Bioresource Technology, 100(22), 5444-5453.

4. Liang, C., Das, K.C., and McClendon, R.W. (2003). The influence of temperature and moisture content regimes on the aerobic microbial activity of a biosolids composting blend. Bioresource Technology, 86(2), 131-137.

5. Epstein, E. (2011). Industrial Composting: Environmental Engineering and Facilities Management. CRC Press, Taylor & Francis Group.

6. Michel, F.C., Pecchia, J.A., Rigot, J., and Keener, H.M. (2004). Mass and nutrient losses during the composting of dairy manure amended with sawdust or straw. Compost Science & Utilization, 12(4), 323-334.
