Compost Crusher Machine - Industrial Organic Material Size Reduction Equipment

The Henan Yuxing Compost Crusher Machine Model YXFS-600-LS is dependable for medium to large-scale organic fertilizer applications. With precision-engineered 20 quenched blades, this vertical crusher grinds fermented materials, caked manure, and agricultural wastes into homogeneous particles at 4-6 tons per hour using a 22kW motor.

The twin feed entrance with protective cover enables safe, uninterrupted operation at 50% moisture. An integrated observation window offers real-time monitoring without production interruption. Yuxing modified this equipment to reduce material clumping and moisture blockage that afflict composting grinders after 20 years on the battlefield.

How the Compost Crusher Machine Works?

Understanding fertilizer plant operational mechanics maximizes throughput and minimizes downtime.

Stage 1: Material Feeding

Dual-inlet feeding accepts fermented compost or raw organic waste. The protective cover keeps extraneous things out and the broad entrance lets irregular material forms in without pre-sorting.

Stage 2: High-impact crushing

The vertical chamber spins 20 heat-treated alloy blades at optimal speed. High-energy impacts occur against hardened liner plates. Non-bottom-screen semi-wet material allows sticky, high-moisture stuff to flow freely without clogging, which is important for processing fresh manure or kitchen trash.

Stage 3: Particle Size Control

Adjust the space between hammers and liner plates to get your desired output size, usually 2mm to 10mm. This adaptability meets downstream granulation equipment needs.

Stage 4: Discharge/Collection

The bottom discharge port continuously discharges crushed material for mixing, screening, or direct granulation. The efficient flow design eliminates material and heat buildup during long operation.

Key Technical Parameters

Why Choose Yuxing's Compost Crushing Solution

Proven Durability in Harsh Environments

Your production can't afford frequent breakdowns. Our blades undergo quenching treatment to achieve HRC 58-62 hardness, resisting the abrasive nature of sand-laden manure and fibrous crop residues. Dynamic rotor balancing extends bearing life and reduces vibration-related failures.

Handle What Others Can't

Standard crushers choke on high-moisture materials. The YXFS-600-LS thrives in these conditions. The open-flow design processes sticky chicken manure, food waste slurry, and fresh green clippings that would paralyze screen-based grinders.

Minimize Maintenance Windows

Depending on your feedstock abrasiveness, blades typically require inspection every 500 operating hours. The accessible observation window lets your team check wear status without full disassembly. When replacement is needed, modular blade design allows swapping in under two hours.

Safety Built In

Accidents halt profits. Our protective feed cover prevents operator contact with moving parts. An overload protection system using shear pins safeguards the motor and drive train if rocks or metal fragments enter the chamber—saving you from catastrophic damage and costly repairs.

Backed by Two Decades of Field Data

Yuxing has installed crushing systems across 50+ countries in diverse conditions—from tropical humidity to cold northern climates. This global experience translates to equipment that works reliably in your specific environment, whether processing palm kernel shells in Southeast Asia or dairy waste in Europe.

Application Scenarios That Benefit Most

Large-Scale Organic Fertilizer Production Lines

After your windrow turner or fermentation tank completes the composting cycle, materials often contain hard clumps and irregular chunks. The Compost Crusher Machine homogenizes this output before granulation, ensuring every pellet contains consistent nutrient ratios. This uniformity improves marketability and reduces customer complaints about product variability.

Municipal Solid Waste Composting Facilities

City green waste programs gather tree branches and grass clippings with kitchen leftovers. This diverse blend tests equipment. Wooden stems, fibrous leaves, and moist kitchen trash must be crushed in one pass without jamming or blade damage.

Livestock Farm Waste Management

Daily manure production is tremendous in cattle, pig, and poultry industries. This obligation may be turned into organic fertilizer by breaking down fibrous bedding and bulky manure cakes. High-torque vertical crushers can handle difficult materials, and corrosion-resistant structure can survive ammonia-rich situations.

Industrial Biomass Preprocessing

Corn stover, rice husks, and sugarcane bagasse must be size reduced before anaerobic digestion or pelletization. Increasing biogas reactor surface area boosts microbial activity and pellet binding during densification. These procedures require constant particle size from our equipment.

Quality Standards You Can Verify

We don't ask you to trust blindly. Every unit undergoes documented quality control before shipment:

Rotor Dynamic Balance Testing

Performed to ISO 1940 G2.5 standard, this prevents premature bearing failure and excessive vibration that degrades structural integrity over time.

Blade Hardness Verification

Each batch of blades undergoes Rockwell hardness testing. Certification documents confirm HRC 58-62 range, ensuring the wear resistance you paid for.

Motor Performance Validation

Insulation resistance and thermal protection systems are tested under simulated continuous load. This verifies the motor can handle 24/7 operation in your production schedule.

Corrosion Resistance Evaluation

Salt spray testing on chassis components simulates years of exposure to corrosive ammonia and organic acids present in composting operations. Only coatings that pass 96-hour testing make it to production units.

Load Throughput Confirmation

We don't just rate capacity on paper. Each crusher runs under load with actual organic materials to confirm the 4-6 T/H specification matches real-world performance at stated moisture levels.

Installation & After-Sales Support

Fast Deployment

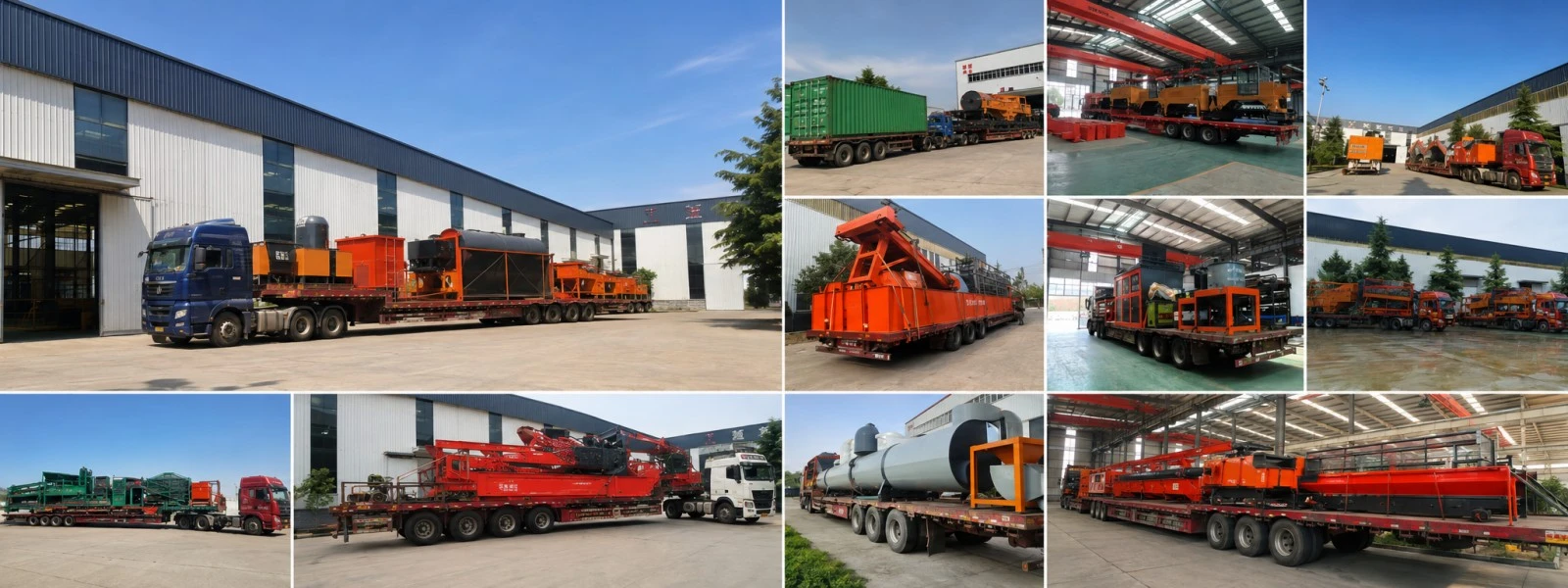

Standard units ship immediately from inventory. Custom configurations matching your voltage, control system preferences, and capacity requirements deliver within 15-20 days.

Comprehensive Training

Your operators receive detailed guidance on startup procedures, adjustment techniques, and routine maintenance schedules. We provide this support on-site during commissioning or via remote video sessions.

Lifetime Technical Availability

Production issues don't respect business hours. Our 7×24 support team responds to troubleshooting requests, spare parts inquiries, and optimization questions throughout your equipment's operational life.

Spare Parts Logistics

Wear components like blades and liner plates are cataloged in our global inventory system. Rush shipping ensures minimal downtime when replacement becomes necessary.

FAQ

Q: Can the crusher handle materials with high moisture content without clogging?

A: Yes. The semi-wet material design with no bottom screen allows materials containing up to 50% moisture to flow freely. This makes it ideal for fresh manure, food waste, and recently fermented compost that would jam screen-based crushers.

Q: How often do the crushing blades need replacement?

A: Blade lifespan depends on feedstock abrasiveness. Typical inspection intervals are every 500 operating hours. In most applications, blades require replacement or hard-facing every 3,000-5,000 hours. Abrasive materials like sand-laden manure shorten this cycle, while softer feedstocks extend blade life.

Q: Is the output particle size adjustable?

A: Absolutely. You control particle size by adjusting the clearance between the hammer tips and liner plates. Most operations achieve sizes between 2mm and 10mm. Tighter clearances produce finer output but may reduce throughput slightly.

Q: What happens if a rock or metal object enters the machine?

A: The system includes overload protection via shear pins that break before damage occurs to the motor or drive components. This safety feature prevents catastrophic failures from foreign objects, saving you thousands in repair costs.

Q: What power supply does this unit require?

A: The YXFS-600-LS operates on a 22kW motor. We customize electrical specifications to match your local standards—whether 380V/50Hz, 440V/60Hz, or other regional requirements. Control panels can integrate Siemens or Schneider components based on your preference.

Q: How does this integrate with existing production lines?

A: The discharge height and conveyor interface adapt to your layout. During project planning, we provide CAD drawings showing integration points with your fermentation system, screening equipment, and granulation line. Our engineering team assists with workflow optimization.
