Fertilizer Granulating Machine Types, Disc vs Drum Comparison and Production Process Guide

When powder fertilizer sits in a warehouse, it clumps, spills, and loses market value fast. A reliable fertilizer granulating machine solves that problem by converting loose powder into uniform, dense granules that store better, ship without loss, and command a higher price at market. This guide walks you through the main granulator types—disc and drum—compares their strengths honestly, and outlines the full production process so you can make a confident equipment decision for your operation.

​​​​​​​

Understanding Fertilizer Granulating Machine Types What Does a Granulating Machine Actually Do?

Either wet agglomeration or dry extrusion is used by a fertilizer granulating machine to bind powder particles into stable granules that are spherical or cylindrical. The process gets rid of dust pollution, keeps nutrients from being separated during shipping, and makes the seeds stronger so they can be planted automatically. The FAO says that granular fertilizers are better for crop yield stability because they reduce field application waste by up to 30% compared to powder types.

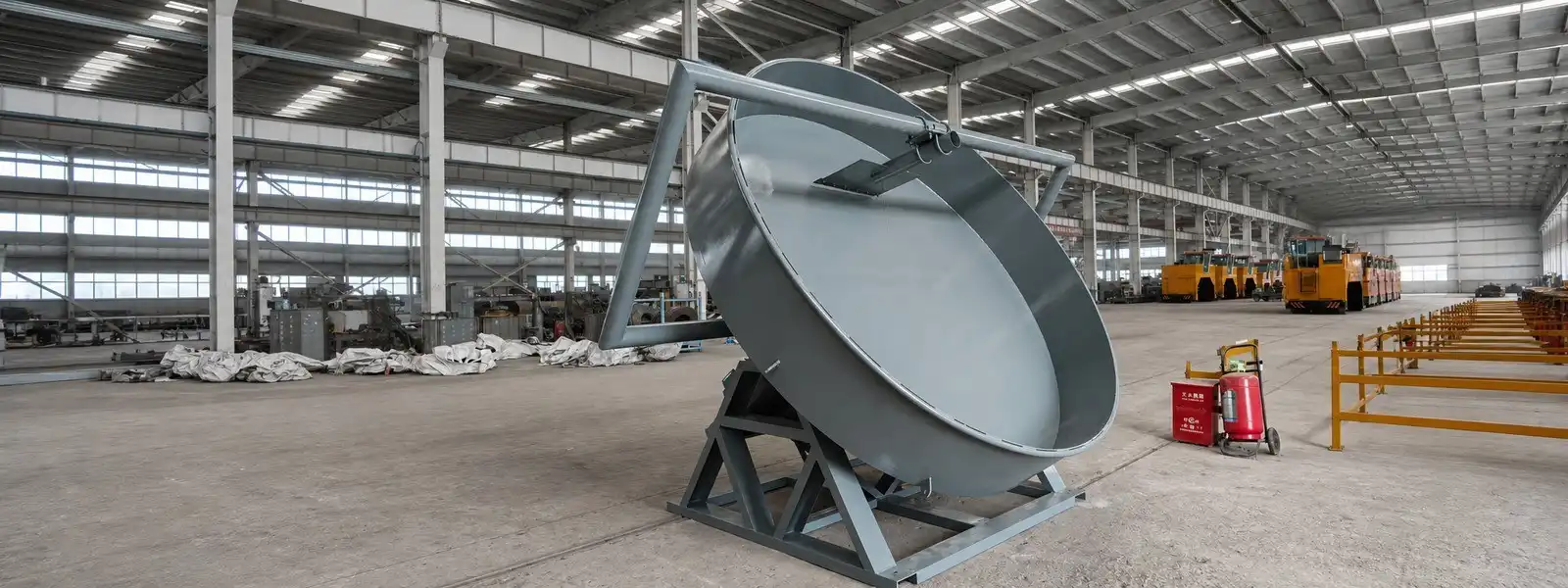

Disc Granulators: How Do They Work?

A disc granulator uses a tilted, spinning pan to use centrifugal and gravity forces to roll wet powder into balls. Operators can see the formation of granules in real time, which makes it easy to change the spray volume or disc angle. Disc granulators can handle between 0.5 and 6 t/h, are good for small to medium-sized businesses, and work well with organic compost, bone meal, and mixed nutrient blends.

Rotary Drum Granulators: How Do They Work?

A rotary drum granulator tumbles wet material inside a horizontal cylinder. It uses steam injection or liquid binders to gradually clump the particles together. It works nonstop, can make a lot of NPK compound fertilizer, and can handle 3 to 30 t/h of output. The sealed drum design cuts down on dust release and supports heat-assisted granulation, which works well for organic wastes that are high in wetness.

Other Granulator Types Worth Knowing

In addition to disc and drum types, roller extrusion granulators, flat die pellet mills, and pan mixers that can granulate are also on the market. Each one deals with different types of raw materials and density needs. The YUXING YXJY-75 Extrusion Granulator has a 75 kW motor and can handle 4–7 t/h. It uses mechanical extrusion to make granules with a diameter of 2–10 mm and a forming density of 0.8–1.2 g/cm³. This makes it ideal for making medium-sized organic fertilizer pellets where consistent density is important.

Disc vs. Drum Granulating Machine: Detailed Comparison for Decision Makers

There's more to picking between disc and drum technology than just looking at prices. For a clear fertilizer granulating machine types comparison, it depends on the moisture level of the raw materials, the size of the granules you want, the amount of material you want to make, and your budget for maintenance. The main working changes are shown in the table below:

Each type of machine has pros and cons that are important in real-world production settings. Here are the most important questions buyers always ask before making a decision:

• Handling moisture: Disc granulators can handle more moisture, but the operator needs to be able to control the binder spray rates more precisely. Drum granulators handle moisture more passively by tumbling the drum, which means that operators don't have to be there as much during continuous runs.
• Energy efficiency: Disc models use less power per tonne of output, which is important when the price of energy is high, which is a real problem for makers in Nigeria, Indonesia, and Uzbekistan who are trying to make ends meet.
• Access for maintenance: Disc granulators show their working area, which speeds up the process of replacing scrapers and inspecting liners. For drum granulators to be serviced, they need to be accessed from the inside, which adds to the downtime.

These differences have a direct effect on your running cost per tonne and the ability of your team to keep the quality of the granules the same from one shift to the next. Before choosing one, compare both types to the raw materials you actually use.

Fertiliser Granulation Production Process: Step-by-Step Guide

Raw Material Preparation

Raw organic matter, like animal manure, food waste, or sewage sludge from cities, needs to be soured, crushed into particles less than 20 mm long, and mixed so that the moisture level is evenly spread between 15% and 30%. When the moisture level is outside of this range, either the binding is bad or the equipment gets clogged. The YXJY-75 can handle materials with this exact range of moisture, so most organic waste applications don't need to dry them for a long time first.

Granulation Stage

When using disc or drum equipment for wet granulation, workers keep an eye on the spinning speed, spray volume, and material feed rate all at the same time. As part of the fertilizer pellet production process, the size of the granules changes over time as the particles roll and crash into each other. It is very important to keep the rotation speed within the range given by the maker. If the RPM changes by more than 10%, 15–20% of the output will be outside the goal size range.

Post-Granulation Finishing

The granules that come out of the granulator still have some moisture on them and are of different sizes. After granulation, the product is treated by rotary drying, which lowers the moisture level to 10–14%; cooling, which brings the temperature back to a more normal level; rotary screening, which separates the right-sized granules from the wrong-sized or too-large material; and coating, which can be added for longer shelf life or slow-release performance. When lines are set up correctly, material loss stays below 5% because returns that are too big or too small go back into the grinding loop.

How to Choose the Right Fertiliser Granulating Machine for Your Business?

Match Machine Type to Your Production Scale

Extrusion granulators or well-configured drum systems work best for businesses that process 4–7 t/h of biological garbage. Disc granulators work well for trial or low-volume batch runs. As long as the crushing and mixing line upstream can already handle 4–7 t/h, aligning the granulator's capacity will keep it from getting stuck or idle.

Before you sign a purchase order with a fertiliser granulating machine supplier, you should pay close attention to the following details:

• Range of granule sizes and making densities based on the packing and agricultural needs of your target market.
• Motor power and energy use per tonne of finished output: an oversized unit going at half capacity uses a lot more energy per tonne than a 75 kW motor handling 6 t/h.
• Wear parts like roller skins, disc liners, and scraper blades need to be replaced after a certain amount of time and at a certain cost. Knowing when to replace them and where to get reliable supplies will keep your production going.
• Certifications like CE and ISO show that the equipment meets safety and quality standards that are known all over the world. This is important for customers in regulated markets like the EU, South America, and Southeast Asia.

All of these things add up to a picture of the total cost of ownership that goes far beyond the price on the sticker. It's common for a machine with less expensive up-front costs to cost more over three years of production than a higher-spec unit with good after-sales support.

Conclusion

Choosing the right grinding technology affects everything from how well your product sells to how much it costs to run every day. Disc granulators are easy for medium-sized organic fertiliser makers to get and don't cost much. Continuous production of a lot of NPK is possible with drum granulators. The YXJY-75 and other fertilizer granulating machine models can handle 4–7 t/h of output, granules with a diameter of 2–10 mm, and a constant 0.8–1.2 g/cm³ forming density within a 15%–30% moisture tolerance range. If you want to make fertiliser that is profitable and easy to expand, the best way to do it is to match the type of machine you use to the needs of your raw materials and the market.

FAQ

1. What is the main difference between disc and drum granulators?

Disc granulators have an open, tilted pan that lets you see the granules form. They are easy to change and use less energy. As enclosed tubes, drum granulators work best for large-scale, ongoing production with liquid or steam binders.

2. What moisture content works best for granulation?

Wet granulation works best when it has between 20 and 30 percent wetness. Dry extrusion methods, like the YXJY-75, work well within 15–30%, which gives you more options when working with different amounts of raw materials.

3. How often do wear parts need replacement?

Depending on how rough the material is, internal seals and blades should be inspected every 3,000 hours of use and replaced every 6,000 to 8,000 hours.

4. Can one machine handle both organic and compound fertiliser formulas?

Yes, machines with variable speed controls and liners that don't get damaged by water can handle both organic matter and NPK blends. However, roller skins made for each type of material may work best.

Ready to Upgrade Your Fertiliser Production Line? Contact YUXING today.

In more than 50 countries, YUXING has helped people design and build fertiliser granulating machines for more than 20 years. The YXJY-75 Extrusion Granulator is approved by CE and ISO and is a reliable choice for a fertilizer granulating machine provider. It can produce 4–7 t/h and comes with lifetime technical support 24 hours a day, 7 days a week. To get in touch with our engineering team right away, email yuxing@hnyxmachinery.com and ask for your personalised production plan or equipment list.

References

1. Food and Agriculture Organization of the United Nations (FAO). Fertiliser Use by Crop. FAO, 2006.

2. Nyle C. Brady & Ray R. Weil. The Nature and Properties of Soils. Pearson Education, 2017.

3. International Fertiliser Association (IFA). World Fertiliser Trends and Outlook to 2022. IFA, 2019.

4. Kutz, Myer (Ed.). Handbook of Farm, Dairy and Food Machinery Engineering. Academic Press, 2019.

5. Salman, A.D., Hounslow, M.J., & Seville, J.P.K. Granulation: Handbook of Powder Technology, Vol. 11. Elsevier, 2007.

6. European Fertiliser Manufacturers Association (EFMA). Production of Granular Fertilisers: Best Available Techniques. EFMA, 2000.
