fertilizer crusher machine

Fertilizer Crusher Machine for Industrial Organic & Compound Fertilizer Production

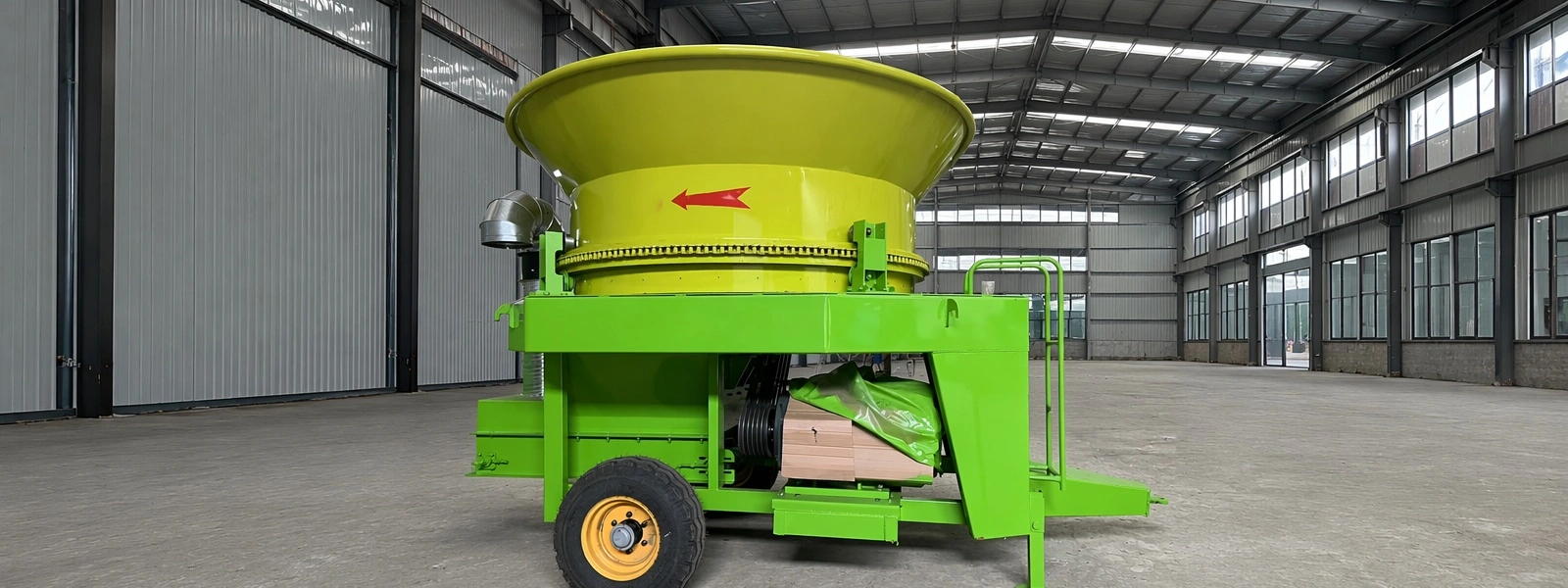

The Yuxing YXYPFS-100 fertilizer crusher machine is the result of 20 years of organic waste processing engineering. A 55kW motor powers this bottom discharge disc straw crusher, which cuts materials to 3-6cm particle length at 3-5t/h. The 2200kg machine, with dimensions of 4000×2600×2670mm, has 36 manganese steel blades and a 90kW soft start cabinet for steady industrial use. The 500mm ground clearance and 900mm discharge width allow simple integration into continuous manufacturing lines. This machine uniformly grinds crop straw, plant wastes, and compost feedstock to increase fermentation efficiency and downstream granulation quality. Fertilizer factories in 50+ countries trust it.

How Fertilizer Crusher Machine Works?

YXYPFS-100 uses a high-speed rotary drum mechanism with impact and shearing forces. Centrifugal motion draws raw materials into the crushing chamber from the 2600mm bucket.

36 carefully placed manganese steel blades on a rotor revolving at optimum RPM impact the entering material within the chamber. Large pieces are broken and fibrous straw and organic debris are sheared.

Bottom discharge reduces material buildup and clogging. The 900mm discharge hole sends crushed particles onto a 2.2kW motor-powered conveyor belt, sustaining productivity without operator intervention.

Particle size distribution is maintained using an SJL04-59-3kW reducer that regulates rotary drum spinning. In dusty fertilizer conditions, the 1316 crusher and twin 6207 rotary drum bearings can handle high torque.

Applications Across Fertilizer Production Lines

Organic Fertilizer Processing

The no-sieve bottom discharge design can withstand 40% moisture without blocking. This reduces screen-type crusher production downtime while processing new compost or wet manure.

Wear-resistant Construction

Before replacement, 36 manganese steel blades last 3,000–5,000 hours. Hardened steel resists organic fibers and mineral salts that quickly damage ordinary equipment.

Output Fineness Adjustment

Adjusting blade arrangement and rotor speed allows fine-tune particle size from 3-6cm. This versatility meets downstream needs from coarse composting to fine granulation feedstock.

Consistent Operations

Startup electrical surge is reduced by the 90kW soft start cabinet. Industrial 24/7 operation is possible with precision-balanced rotors that reduce vibration to 85dB.

Integrated Safety Systems

Six overload-protected F206 belt bearings avoid failure. The tire base (10.0/75-15.3×2) may be moved inside facilities without dismantling.

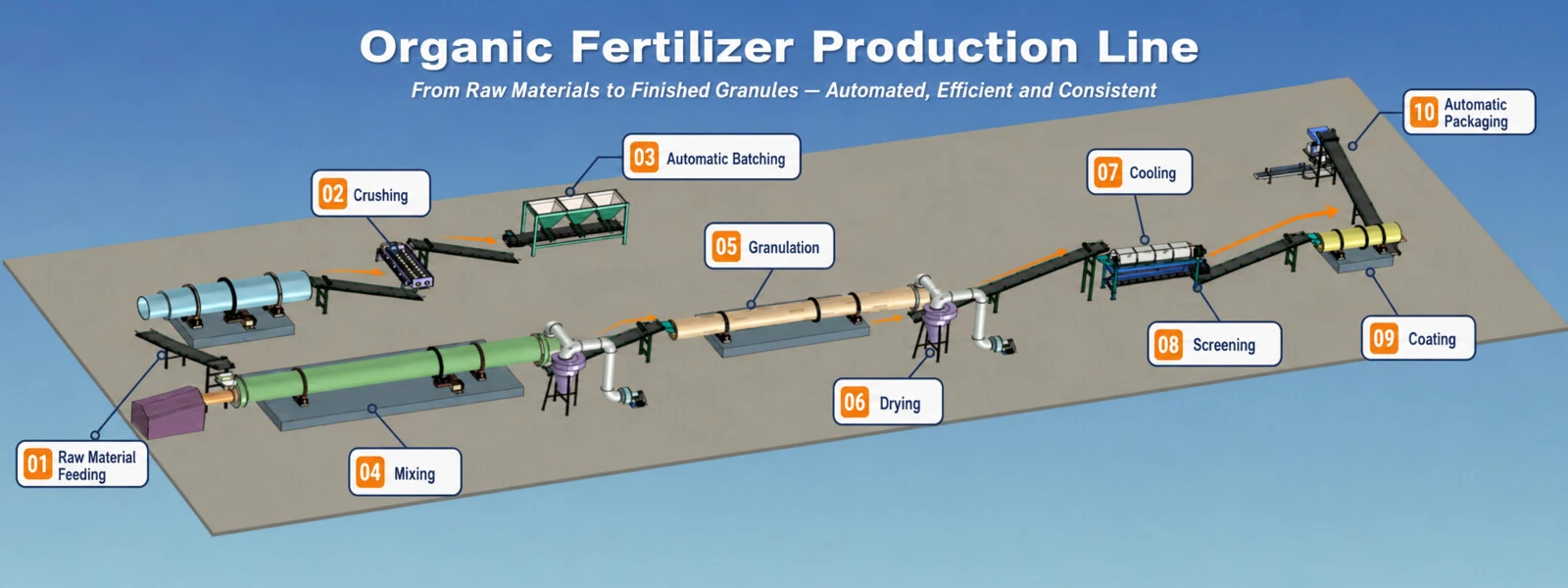

Various Fertilizer Production Line Applications Organic Fertilizer Processing

Composting chicken manure, cow dung, and mushroom leftovers into fine powder is done by this product. During pellet creation in disc or rotary drum granulators, the homogeneous texture distributes nutrients evenly.

Making Compound NPK

After storage, chemical fertilizer facilities pulverize caked urea, potassium salts, and phosphate rock. Particle size consistency promotes chemical reactivity during mixing and coating.

Ag Waste Recycling

Smashes maize stalks, rice husks, and cotton stems into biochar. The 3-5t/h capacity suits medium-scale agricultural residue-to-soil conversion.

Industry Bio-Solid Treatment

Produces organic fertilizer from municipal sewage and food waste. The corrosion-resistant design withstands waste-to-resource plants' acidic and alkaline conditions.

Technical Specifications

Why Choose Yuxing Fertilizer Crushing Equipment

Two Decades of Frontline Experience

Since 2003, Yuxing has refined crushing technology through thousands of installations worldwide. Every design improvement stems from real production feedback, ensuring equipment reliability in harsh fertilizer plant conditions.

Complete Turnkey Solutions

Beyond standalone machines, we provide integrated systems including fermentation tanks, granulators, dryers, and packaging lines. Our partnership with Baolai Lailai Group combines equipment with microbial agents and process technology for total production optimization.

Rapid Delivery and Customization

Standard units ship immediately from stock. Custom configurations—including CE compliance, Siemens PLCs, and multi-language interfaces—deliver within 15-20 days. We adapt voltage, control systems, and capacity to your local requirements.

Global Logistics Expertise

Experienced in 40GP container optimization and oversized equipment shipping to 50+ countries. Our modular designs reduce freight costs while ensuring safe international delivery.

Lifetime Technical Support

7×24 multilingual assistance covers installation guidance, operator training, and troubleshooting. Remote video support and spare parts supply guarantee minimal downtime across your fertilizer crusher machine lifecycle.

Quality Assurance and Testing Standards

Every unit undergoes rigorous inspection before shipment. Dynamic rotor balancing meets ISO 1940 standards to prevent premature bearing failure. Rockwell hardness testing verifies blade wear resistance above specified HRC grades.

Full-load testing confirms noise below 85dB and vibration within safe limits. Ultrasonic welding inspection detects micro-fissures in the main housing that could expand under continuous operation.

Anti-corrosion coatings on all surfaces protect against chemical fertilizer environments. Thickness and adhesion testing ensures long-term durability in acidic and alkaline conditions.

All electrical components pass CE certification requirements. Control systems integrate seamlessly with existing plant automation for centralized monitoring.

FAQ

Q1: Can this machine process wet compost straight from fermentation tanks?

A: Yes, the bottom discharge design handles up to 40% moisture content without clogging. For materials exceeding 30% moisture, we recommend pre-drying or using the no-sieve configuration.

Q2: How often do manganese steel blades need replacement?

A: Depending on material abrasiveness, blades typically last 3,000-5,000 operating hours. We provide replacement blade kits with installation instructions and video guidance.

Q3: Is the output particle size adjustable for different granulation requirements?

A: Absolutely. Adjust rotor speed or modify the hammer-to-impact-plate gap to achieve fineness between 20-100 mesh. Our engineers assist with optimal settings during commissioning.

Q4: What happens if metal objects enter the crusher?

A: The machine includes shear-pin safety mechanisms that disengage the rotor if hard foreign objects enter. Optional magnetic separators provide additional protection for high-risk materials.

Q5: Can you integrate this into our existing production line?

A: Yes. We provide factory planning, conveyor interfacing, and control system integration. Our engineers design custom layouts matching your facility's workflow and automation level.

Q6: What voltage and electrical standards do you support?

A: We configure equipment for global standards—220V-480V, 50/60Hz—with Schneider or Siemens components. Control panels feature multi-language HMI interfaces for international operators.

Contact Us

Ready to upgrade your fertilizer production efficiency with a fertilizer crusher machine? Yuxing's engineering team is standing by to design your optimized crushing system.

• Request Production Line Solution tailored to your raw materials
• Request Plant Layout with workflow optimization
• Download Catalog for complete equipment specifications
• Get Turnkey Quotation including delivery and installation

Email us today at yuxing@hnyxmachinery.com for technical consultation and competitive pricing.
