Compost Grinding Machine

Compost Grinding Machine - High-Performance Industrial Size Reduction Solution

Yuxing's YXFS-600-WS Compost Grinding Machine delivers enterprise-grade processing power for your organic waste treatment operations. Built on over 20 years of fertilizer equipment manufacturing expertise, this horizontal crusher processes 6-10 tons per hour with just 22kW of energy consumption. The quenched blade system rotates on a horizontal shaft with advanced anti-blocking design, achieving 30% higher efficiency than conventional models. Our specialized engineering ensures uniform particle size reduction of fermented materials and caked organic matter, directly improving your downstream screening, mixing, and granulation results. With CE and ISO certification, you receive lifetime technical support including installation guidance and spare parts consultation.

How It Works?

The product operates through a precision-engineered horizontal shaft rotation system that transforms bulky organic materials into uniform particles.

Your raw feedstock enters through the hydraulically controlled feeding chamber, where variable-speed mechanisms prevent material surges. The horizontal rotor shaft spins at optimized RPM, driving quenched steel blades through the material in both upward and downward cutting motions.

This dual-direction blade action creates multiple impact points per rotation, effectively breaking molecular bonds in fibrous and caked materials. The anti-blocking design incorporates strategically positioned blade angles and wider clearance zones that prevent moisture-rich organics from adhering to surfaces.

Material exits through interchangeable screen baskets that determine your final particle size—typically 10-50mm for composting applications. The entire process maintains consistent throughput without manual intervention, reducing particle size while preserving beneficial microbial structures essential for fermentation.

Core Technical Advantages

Yuxing's horizontal crusher stands out in demanding industrial environments through measurable performance characteristics.

The 22kW power system delivers exceptional energy efficiency compared to industry averages. You'll process 6-10 tons hourly while consuming 30-40% less electricity than comparable vertical shaft designs.

Our quenched blade technology undergoes heat treatment to HRC 55-62 hardness standards. This metallurgical process extends blade service life to 300-500 operating hours even with abrasive feedstock, significantly reducing your maintenance costs.

The horizontal shaft configuration distributes impact forces evenly across the rotor assembly. This engineering approach minimizes vibration, reduces bearing stress, and enables continuous operation in 24/7 production schedules without structural fatigue.

Anti-blocking geometry incorporates 15° blade rake angles and enlarged discharge ports. When processing high-moisture materials up to 60% water content, you'll experience fewer shutdowns and maintain consistent particle quality throughout your shift.

Application Scenarios

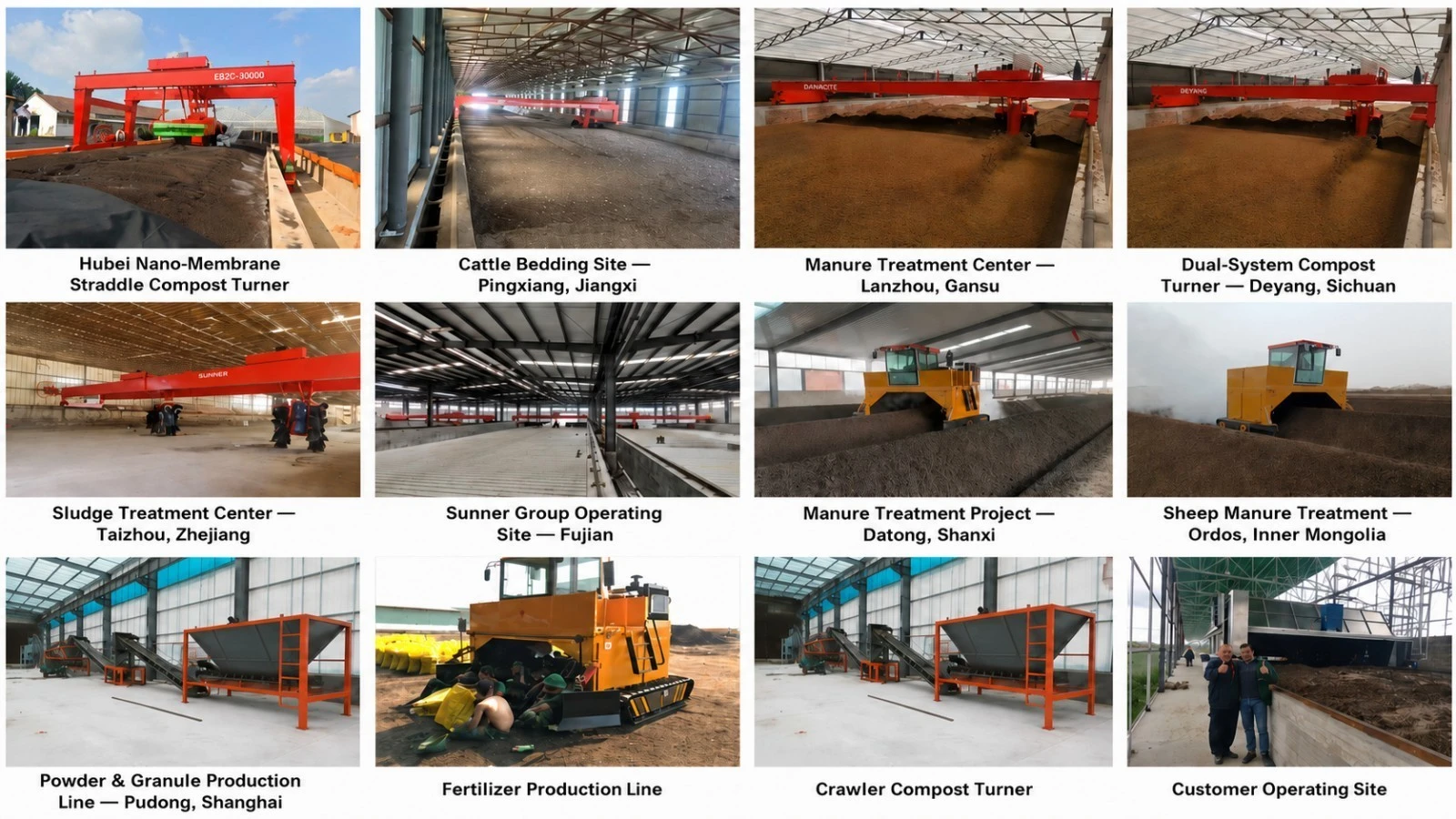

In diverse organic waste processing scenarios, the Compost Grinding Machine performs crucial duties.

High-volume municipal composting facilities process mixed urban green waste and food scraps. The equipment maintains windrow composting output quality while handling debris like tiny stones.

Process fermented animal dung and agricultural leftovers into homogeneous particles. This improves pellet formation and reduces dust by preparing materials for granulation.

Make mushroom substrates by crushing straw and chicken manure precisely. The regulated particle size produces ideal fibrous texture for mycelium colonization, boosting substrate production each batch.

Recycling agricultural biomass: Make mulch or compost from pruning debris, crop stalks, and orchard trimmings. The sturdy structure handles fibrous materials that clog lighter equipment.

Pre-treatment for biogas plants: Reduce organic input particle size. Smaller particles boost bacteria interaction and digestion tank gas output.

Customization Capabilities

Yuxing customizes grinding equipment for operational and geographical needs.

We adapt motor systems to your local voltage (220V/380V/440V) and frequency (50Hz/60Hz). Siemens or Schneider components match your infrastructure.

Scaling: The YXFS-600-WS processes 6-10T/H, but we engineer bespoke rotor lengths and multiple-unit combinations for 3T/H to 50T/H throughput according on your plant capacity.

For blades and chamber liners, choose food-grade stainless steel or Hardox wear-resistant steel. Feedstock abrasiveness and product purity determine your option.

Select manual control panels, PLC automation systems, or SCADA integration with multi-language HMI touchscreens. Remote monitoring links equipment to plant management systems.

Mobile Options: Add crawler tracks or wheels for fieldwork. For contractors with various client sites, we create trailer-mounted variants.

To comply with OSHA, CE, or national workplace safety laws, install more emergency stop stations, interlock systems, and dust suppression devices.

Quality Assurance Process

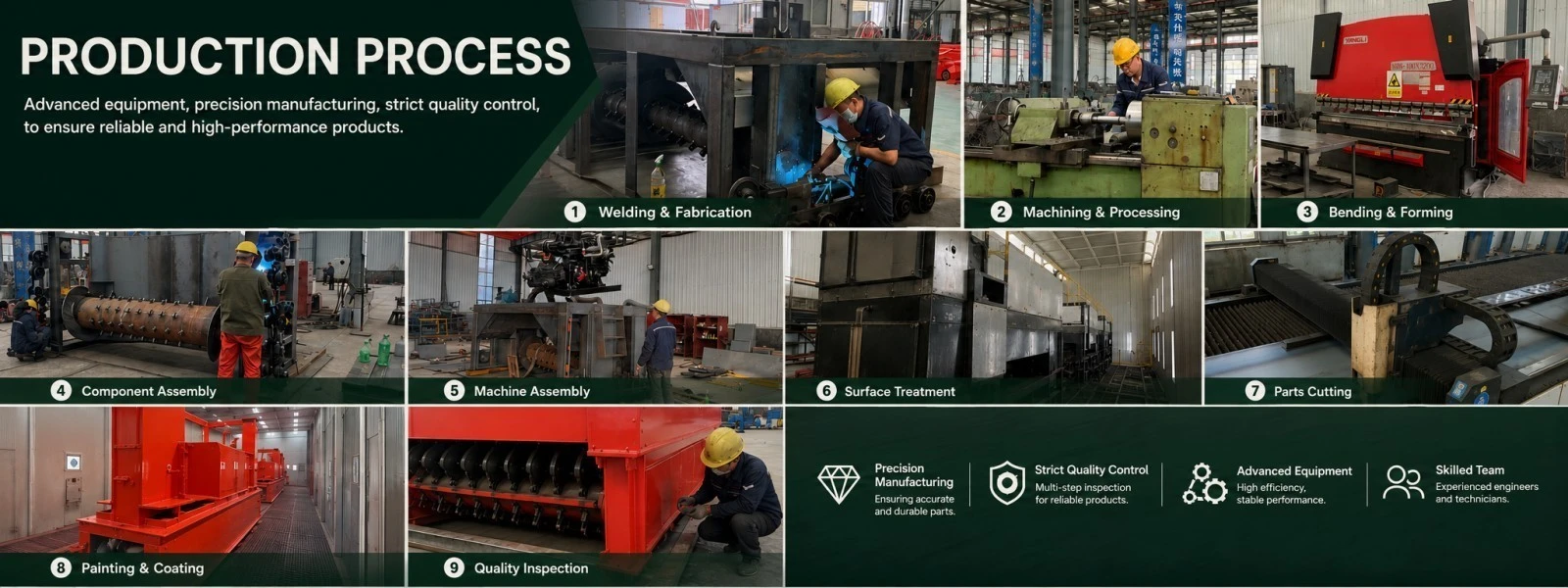

Each device is factory-tested before shipping to your business.

Dynamic Rotor Balancing: Precision balancing equipment tests each assembled rotor at full speed. To avoid bearing failure during manufacturing, ISO 1940-1 vibration thresholds must be met.

Rockwell hardness testing verifies each blade batch fulfills HRC 55-62 standards. This maintains blade wear resistance across your inventory.

Load Stress Testing: Your machine processes soft green waste and woody biomass for 4-8 hours. During testing, our engineers evaluate hydraulic pressure stability, bearing temperatures, and throughput uniformity.

Ultrasonic testing (NDT) of critical structural welds detects interior faults that cannot be seen. It prevents catastrophic frame breakdowns under operating loads.

Functional testing of emergency stop circuits, protection guards, and electrical interlocks. CE Machinery Directive response times and fail-safe procedures must be met before approval.

Comprehensive Service System

Yuxing provides enterprise-level support for your equipment throughout its lifespan.

Pre-Installation Planning: Our engineers examine site layout and offer CAD integration drawings. We determine electrical load and foundation standards depending on soil conditions.

Installation and Commissioning: Technical staff assemble and calibrate equipment at your premises. After no-load and full-load testing, we modify settings for your feedstock.

Operator instruction: Hands-on instruction includes everyday operation, maintenance, and typical problems. Your team learns to spot wear and adjust settings for different materials.

Spare Parts Management: We have blades, screens, and bearings for fast distribution. Third-party sourcing is possible with thorough parts diagrams and manufacturer specifications in technical documentation.

Remote Technical help: Video call, email, or contact our 24/7 worldwide help network. By analyzing operating footage, engineers help maintenance workers solve faults and save downtime.

Performance Optimization: Annual evaluations examine throughput and maintenance statistics. We offer operational tweaks or component upgrades to increase efficiency as manufacturing needs change.

​​​​​​​FAQ

Q: What maintenance schedule should I follow for the quenched blades?

A: Inspect blade condition daily during operation. Depending on feedstock abrasiveness, rotate or replace blades every 300-500 operating hours. Sand content in manure accelerates wear, while clean green waste extends blade life.

Q: Can this machine process mixed materials with different moisture levels?

A: Yes, the horizontal shaft design handles materials from 35-60% moisture content. Optimal grinding occurs at 35-45% moisture. Higher moisture may require periodic screen cleaning to maintain throughput.

Q: How does the anti-blocking system work with sticky materials?

A: Wider blade spacing and increased discharge clearance prevent material accumulation. The reversing feed function allows operators to clear blockages without stopping production. Hydraulic relief systems protect the drive system from damage.

Q: What's the typical power consumption during continuous operation?

A: At rated capacity (6-10T/H), the 22kW motor typically draws 18-20kW under normal load. Actual consumption varies with feedstock density and moisture content. You'll see 30-40% energy savings versus comparable vertical designs.

Q: Can I integrate this with my existing production line control system?

A: Absolutely. We provide PLC systems with industry-standard communication protocols (Modbus, Profibus, or Ethernet/IP). Your automation team can integrate crusher operation into centralized SCADA monitoring and control.

Q: What happens if non-organic contaminants enter the machine?

A: The feed system reverses automatically when sensors detect overload. Shear bolts or hydraulic relief mechanisms prevent rotor damage from metal or stone contamination. Operators can clear jams through accessible inspection doors without disassembly.

Contact Us

Ready to optimize your compost processing efficiency with a Compost Grinding Machine? Yuxing's engineering team will design the perfect solution for your specific requirements.
