cow dung crusher machine

Cow Dung Crusher Machine - Professional Organic Waste Processing Solution

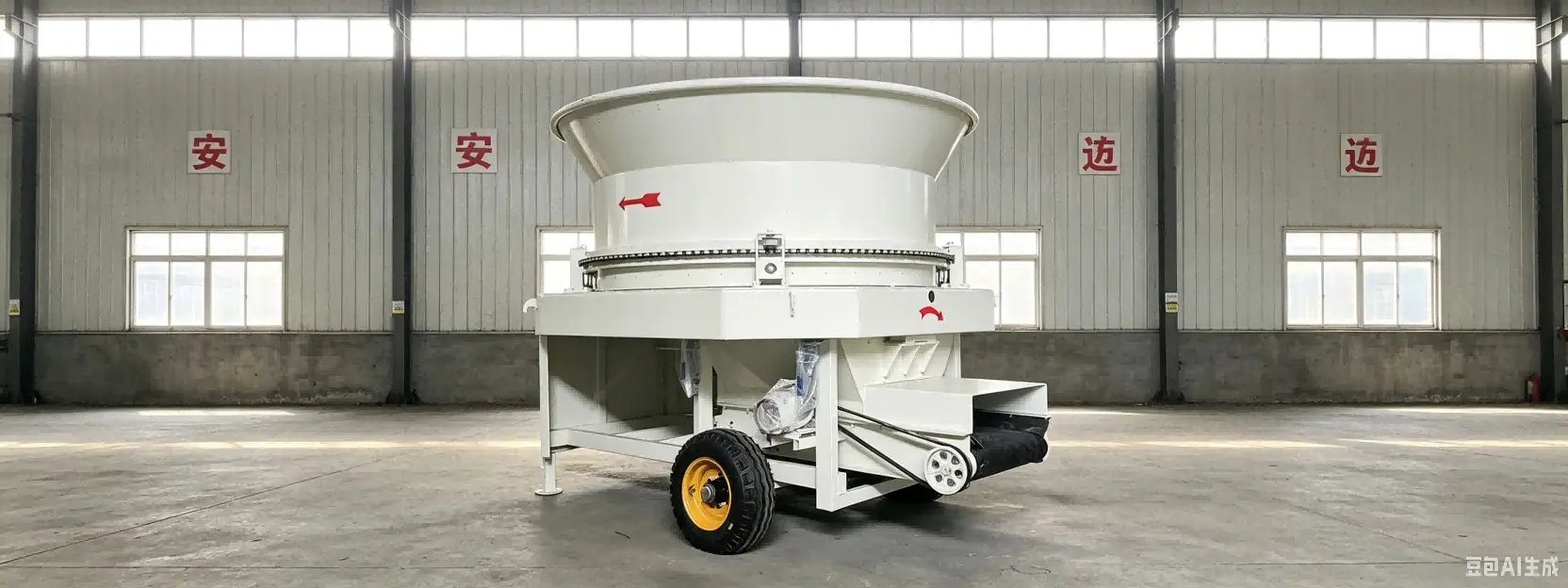

Henan Yuxing Intelligent Equipment Co., Ltd. presents the YXYPFS-150 cow dung crusher machine, an industrial-grade bottom discharge disc straw crusher engineered for large-scale organic fertilizer operations. With over 20 years of field-tested innovation, our equipment delivers consistent 4-8t/h productivity while processing materials to a uniform 3-6cm particle size.

This specialized unit features 110kW matching power, 66 precision-engineered hammers, and a robust 3000mm diameter bucket system designed to handle high-moisture cattle manure up to 40% moisture content. The 4550×3000×2750mm frame integrates a hydraulic BM400/BM250 motor system and 160kW soft starter cabinet, ensuring reliable continuous operation in demanding agricultural and environmental remediation projects. CE and ISO certified with lifetime technical support, our solution transforms bulky livestock waste into homogeneous raw material for downstream granulation processes.

How Our Cow Dung Crusher Machine Works?

The crushing process begins when raw cattle manure enters the 900mm-wide discharge port, guided by a 2.2kW belt motor feed system. Material drops into the 1200mm-high rotating drum where 66 high-manganese steel hammers spin at optimized speeds to pulverize fibrous organic matter.

Unlike conventional grinders, our tooth-plate design eliminates bottom screens. This allows semi-wet materials to exit smoothly via centrifugal force without clogging. The 4kW rotary drum bearing system (model 6207) maintains consistent rotation while the 2320 main bearing handles high-torque loads during continuous operation.

Crushed particles exit through the bottom discharge system, achieving 3-6cm uniformity ideal for composting and granulation. The VFD-controlled motor adjusts rotor speed to fine-tune output fineness, while hydraulic safety systems protect against foreign objects like stones or metal fragments.

This streamlined workflow processes 4-8 tons hourly, transforming uneven livestock waste into homogeneous fertilizer feedstock ready for your production line.

Technical Specifications

Core Advantages for Your Fertilizer Operation

Superior Material Handling Capability

Our cow dung crusher machine processes high-moisture manure without the clogging issues common in standard grinders. The screenless design handles fibrous cattle waste that typically jams conventional equipment, maintaining 4-8t/h throughput even in challenging conditions.

Extended Wear Part Lifespan

High-manganese steel hammers (HRC 55-60 hardness rating) deliver 800-1,200 operating hours before rotation or replacement. This reduces your maintenance costs and downtime compared to standard carbon steel components that fail prematurely when processing abrasive agricultural waste.

Precision Particle Control

Adjust output fineness through VFD speed modulation or hammer-to-plate clearance settings. Whether you need coarse particles for composting or finer material for pellet granulation, our system adapts to your specific downstream requirements without equipment changes.

Built-In Safety Systems

Hydraulic bypass protection prevents catastrophic motor failure when foreign objects enter the crushing chamber. Thermal imaging-validated bearing systems ensure safe operation during continuous multi-shift production schedules, protecting your capital investment.

Turnkey Integration Support

Yuxing provides complete plant layout design, equipment installation, and operator training. Our engineers optimize crusher placement within your fermentation-to-packaging workflow, ensuring material flow efficiency across your entire organic fertilizer production line.

Primary Application Scenarios

Industrial Organic Fertilizer Plants

Position the crusher as your post-fermentation processing stage. It prepares composted cattle manure for disc or drum granulators by creating the uniform texture necessary for consistent pellet formation. This eliminates manual sorting and reduces rejects in your finished product.

Large-Scale Dairy Farm Waste Systems

Implement on-site manure processing for closed-loop nutrient management. Crushed dung becomes high-quality bio-bedding or soil conditioner, transforming waste disposal costs into revenue streams. Our moisture-tolerant design handles fresh manure directly from collection systems.

Environmental Remediation Projects

Blend processed cow dung with chemical stabilizers for degraded land reclamation. The machine ensures perfect homogenization of organic matter and pH-adjusting additives, critical for soil restoration in mining sites or industrial brownfields where material consistency determines project success.

Multi-Manure Processing Facilities

Though optimized for cattle waste, the equipment processes chicken, pig, and sheep manure following the same operational parameters. This versatility supports diversified livestock operations or regional organic waste management centers serving multiple farm types.

Quality Assurance and Testing Standards

Every unit undergoes rigorous validation before shipment. Dynamic balance testing of the main shaft prevents premature bearing failure during long-term operation. We verify hammer HRC ratings exceed 55-60 through certified hardness testing, guaranteeing wear resistance in abrasive livestock waste applications.

Load-bearing thermal imaging during 4-hour continuous run-tests confirms motors and bearings operate within safe temperature margins. Ultrasonic weld integrity testing (UT) prevents structural fatigue under the high-torque conditions inherent in crushing fibrous organic materials.

Our ISO9001-certified manufacturing process includes material traceability for critical components. The 2320 main bearing and 6207 rotary drum bearings meet international industrial standards for dimensional accuracy and load capacity. The 160kW soft starter cabinet undergoes electrical safety certification to regional power grid requirements.

CE compliance ensures safe operation in international markets, with documentation supporting equipment import and workplace safety regulations. This comprehensive quality control protects your investment and workforce.

Why Global Fertilizer Producers Choose Yuxing?

20+ Years of Field-Proven Innovation

We pioneered groove-type and mechanical crawler compost turners in China's organic fertilizer sector. This deep R&D foundation informs every design decision in our crushing equipment, from hammer geometry to discharge port angles optimized for real-world production environments.

Complete Production Line Integration

Your product arrives as part of a turnkey solution. We coordinate crusher capacity with upstream fermentation systems and downstream granulation equipment, eliminating bottlenecks that reduce overall plant efficiency. This systems-level expertise comes from serving thousands of facilities across 50+ countries.

Rapid Customization and Delivery

Standard YXYPFS-150 units ship immediately from stock. Custom voltage configurations, CE compliance packages, or capacity modifications deliver in 15-20 days. Our flexible ODM/OEM services adapt to regional electrical standards, control system preferences (Siemens/Schneider PLCs), and multi-language HMI interfaces.

Lifetime Technical Partnership

Installation guidance, operator training, and remote troubleshooting support extend throughout your equipment's service life. Our engineers provide production optimization consultations, capacity upgrade planning, and 24/7 emergency response. This commitment ensures your crusher maintains peak performance as your operation scales.

Advanced Global Logistics

Specialized experience in 40GP container optimization, open-top transport for oversized components, and modular disassembly reduces your shipping costs. We handle export documentation, customs coordination, and delivery to remote project sites, simplifying international procurement.

FAQ

Q: How does the product handle high-moisture manure without clogging?

A: Professional models use a tooth-plate design without a bottom screen, allowing wet material to pass through via centrifugal force. Our YXYPFS-150 processes up to 40% moisture content cattle manure continuously without the jamming issues common in screened grinders.

Q: What is the expected lifespan of the wear parts?

A: Depending on silica and sand content in your feedstock, high-manganese hammers typically last 800-1,200 operating hours before requiring rotation or replacement. We provide detailed maintenance schedules and spare parts availability information with every unit.

Q: Can the output fineness be adjusted for different production requirements?

A: Yes, modulate the rotor speed through a Variable Frequency Drive (VFD) or adjust the clearance between hammers and impact plate. This flexibility lets you produce coarse particles for composting or finer material for pellet mills without equipment changes.

Q: What happens if a stone or metal piece enters the machine?

A: High-end units feature a hydraulic bypass system to prevent catastrophic motor failure. The safety mechanism disengages drive components when foreign objects exceed design limits, protecting your investment and minimizing downtime.

Q: Is the machine compatible with other types of livestock manure?

A: Yes, while optimized for cow dung, it effectively processes chicken, pig, and sheep manure following the same moisture and capacity guidelines. This versatility supports diversified operations and regional waste management facilities.

Q: How do you support international installations?

A: We provide complete technical packages including foundation drawings, electrical schematics, and operator manuals in your preferred language. Remote video commissioning and on-site engineer dispatch options ensure smooth startup regardless of project location.

Contact Us

Ready to upgrade your organic fertilizer production with a cow dung crusher machine? Our technical team will assess your specific requirements and recommend the optimal configuration for your operation.

• Request Production Line Solution – Complete system design from fermentation to packaging

• Request Plant Layout – Optimized equipment placement for maximum efficiency

• Download Catalog – Full specifications and configuration options

• Get Turnkey Quotation – Custom pricing for your project scope

Email: yuxing@hnyxmachinery.com​​​​​​​
